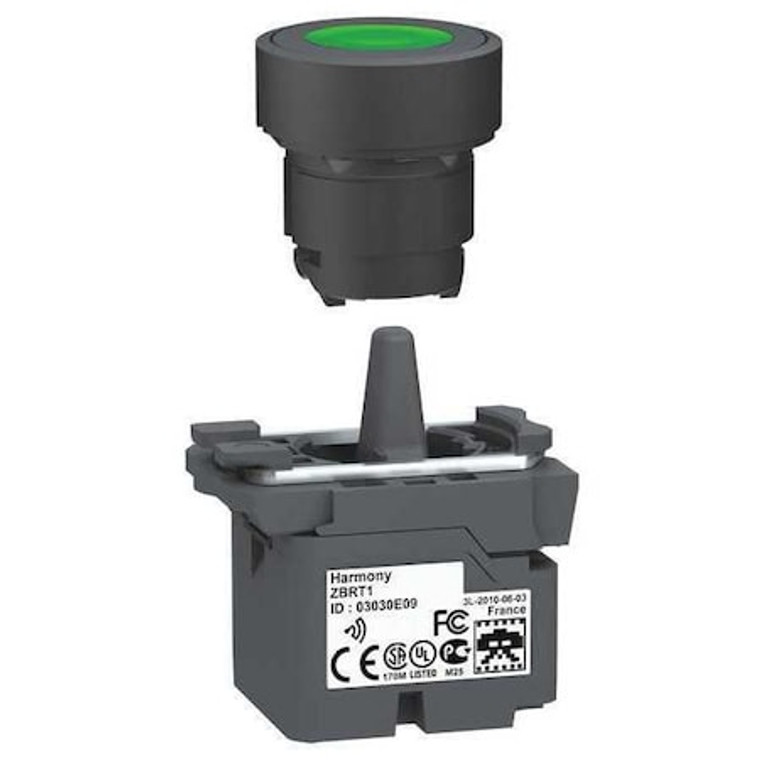

Push Button with Transmitter, 22 mm, Green - ZB5RTA3

Push Button with Transmitter, 22 mm, Green - ZB5RTA3

Schneider Electric
SKU:
ZB5RTA3
|
UPC:
785901695141
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Wireless Push Button Transmitter, Color Green, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating IP30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Additional Information
Country of Origin:
France
Action:
Momentary
Size:
22 mm
Head Material:
Plastic
NEMA Rating:
12
Type of Operator:
Flush Push Button
Color:
Green
Legend:
None
Number of Operators:
1
Item:
Wireless Push Button Transmitter
Bezel Material:
dark grey plastic
Material:
Plastic
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Height:
1.3 in
Length:
2.05 in
Legend Markings:
No Legend
Width:
3.39 in
IP Rating:
IP30
Series:
XB5R
Length (Straight Wireway):
2.05 in
Max Power Consumption In W:
1 mW
Operator Profile:
green flush
Fixing Collar Material:
plastic
Ambient Air Temperature For Storage:
-40-70°C
Device Short Name:
XB5R
Level Or Class:
5M00G7W
Electromagnetic Compatibility:
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IE
Relative Humidity:
95-95 % -40-70°C without condensation
Cad Overall Height:
41.5 mm
Antenna Type:
omnidirectional
Number Of Channels:
16
Mechanical Durability:
1000000 cycles
Operating Force:
10 N C/O changing electrical state
Acquisition Time:
2 ms
Transmission Frequency:
2405 MHz
Modulation Technique:
O-QPSK
Vibration Resistance:
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Mounting Diameter:
22 mm
Communication Port Protocol:
Zigbee green power 2.4 GHz IEEE 802.15.4
Maximum Sensing Distance:
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Mechanical Robustness:
free fall resistance 1000 mm EN/IEC 60068-2-32
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Radio Agreement:
ANATEL || ARIB T66 || FCC || ICASA || RSS
Electrical Composition Code:
PW1
Response Time:
< 2 ms
Operating Travel:
4.3 mm total travel)
Ik Degree Of Protection:
IK03 IEC 50102
Cad Overall Width:
30 mm
Ambient Air Temperature For Operation:
-40-70°C
Antenna Gain:
0 dBi
Embedding Depth:
42 mm
Emission Power:
3 mW
Cad Overall Depth:
43 mm
Station Name:
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance:
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Bandwidth:
5-5 MHz
Product Or Component Type:
wireless and batteryless transmitter
Product Certifications:
BT 2006/95/EC || CCC || UL || GOST || C-tick || CSA
Ip Degree Of Protection:
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Shape Of Signaling Unit Head:
round
Operator Material:
Plastic
Resistance Properties:
Shock Resistant, Vibration Resistant
Overall Height:
1.62 in
Maintained Action Release:
Not Applicable
Legend Background Color:
Not Applicable
NEMA Enclosure Rating:
12
Overall Width:
1.17 in
Overall Depth:
2.05 in
Operating Temperature - Minimum:
-40 Degrees F
Head Color:
Green
Mushroom Head Diameter:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Mechanical Operating Durability:
1,000,000
Manufacturer Warranty Length:
18 mo
Push Button Style:
Flush
Panel Cutout Diameter:
22 mm
Operator Illumination:
Non-Illuminated
Legend Color:
Not Applicable
Package Quantity:
1
