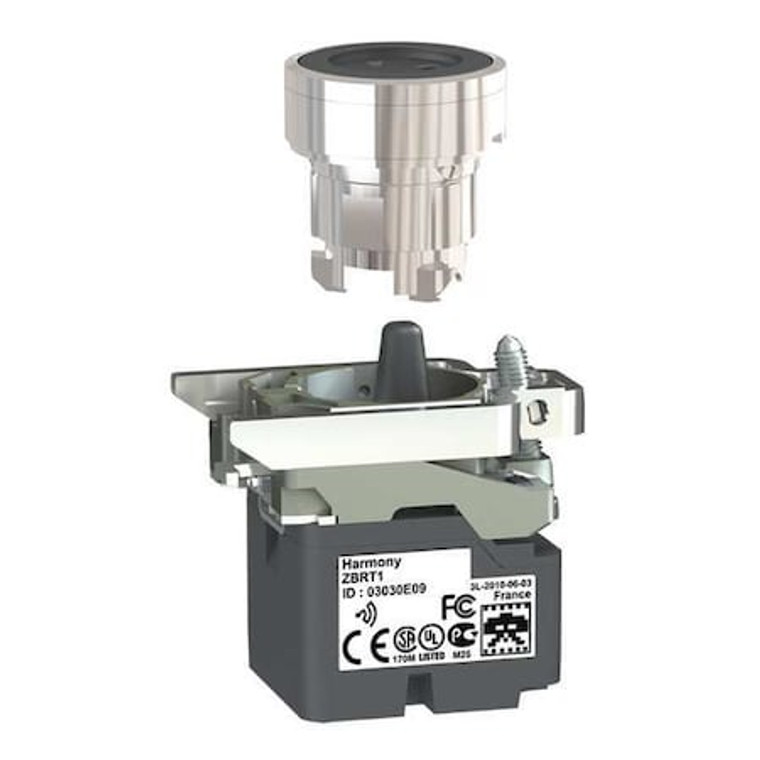

Push Button with Transmitter, 22 mm, Black - ZB4RTA2

Push Button with Transmitter, 22 mm, Black - ZB4RTA2

Schneider Electric
SKU:
ZB4RTA2
|
UPC:
785901593485
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Wireless Push Button Transmitter, Color Black, Action Momentary, Material Metal, NEMA Rating 12, IP Rating IP30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Additional Information
Country of Origin:
France
Action:
Momentary
Size:
22 mm
Head Material:
Metal
NEMA Rating:
12
Type of Operator:
Flush Push Button
Color:
Black
Legend:
None
Number of Operators:
1
Item:
Wireless Push Button Transmitter
Bezel Material:
chromium plated metal
Length:
2.05 in
Width:
3.39 in
Material:
Metal
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Height:
1.3 in
IP Rating:
IP30
Series:
XB4R
Length (Straight Wireway):
2.05 in
Mushroom Head Diameter:
Not Applicable
Manufacturer Warranty Length:
18 mo
Legend Background Color:
Not Applicable
Operator Illumination:
Non-Illuminated
Overall Height:
1.82 in
Panel Cutout Diameter:
22 mm
Operating Temperature - Maximum:
158 Degrees F
Mechanical Operating Durability:
1,000,000
Operator Material:
Metal
Push Button Style:
Flush
Head Color:
Black
Overall Depth:
2.05 in
NEMA Enclosure Rating:
12
Overall Width:
1.18 in
Maintained Action Release:
Not Applicable
Legend Color:
Not Applicable
Operating Temperature - Minimum:
-40 Degrees F
Resistance Properties:
Shock Resistant, Vibration Resistant
Mechanical Durability:
1000000 cycles
Ip Degree Of Protection:
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Shock Resistance:
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cad Overall Width:
30 mm
Level Or Class:
5M00G7W
Acquisition Time:
2 ms
Ambient Air Temperature For Storage:
-40-70°C
Operating Force:
10 N C/O changing electrical state
Communication Port Protocol:
Zigbee green power 2.4 GHz IEEE 802.15.4
Fixing Mode:
fixing screw beneath head 0.8-1.2 N.m
Max Power Consumption In W:
1 mW
Product Certifications:
GOST || CCC || C-tick || UL || BT 2006/95/EC || CSA
Protective Treatment:
TH
Product Or Component Type:
wireless and batteryless transmitter
Electrical Composition Code:
PW1
Maximum Sensing Distance:
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Modulation Technique:
O-QPSK
Ik Degree Of Protection:
IK03 IEC 50102
Mechanical Robustness:
free fall resistance 1000 mm EN/IEC 60068-2-32
Operator Profile:
black flush
Antenna Type:
omnidirectional
Cad Overall Depth:
43 mm
Transmission Frequency:
2405 MHz
Legend Markings:
No Legend
Number Of Channels:
16
Shape Of Signaling Unit Head:
round
Vibration Resistance:
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Response Time:
< 2 ms
Operating Travel:
4.3 mm total travel)
Bandwidth:
5-5 MHz
Ambient Air Temperature For Operation:
-40-70°C
Cad Overall Height:
41.5 mm
Antenna Gain:
0 dBi
Embedding Depth:
42 mm
Mounting Diameter:
22 mm
Emission Power:
3 mW
Relative Humidity:
95-95 % -40-70°C without condensation
Radio Agreement:
ANATEL || ARIB T66 || FCC || ICASA || RSS
Electromagnetic Compatibility:
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IE
Device Short Name:
XB5R
Fixing Collar Material:
zamak
Package Quantity:
1
