Push Button Operator, 30 mm, Green - 9001KR24GM
Schneider ElectricLog in for pricing
(No reviews yet)
Write a Review
Schneider Electric

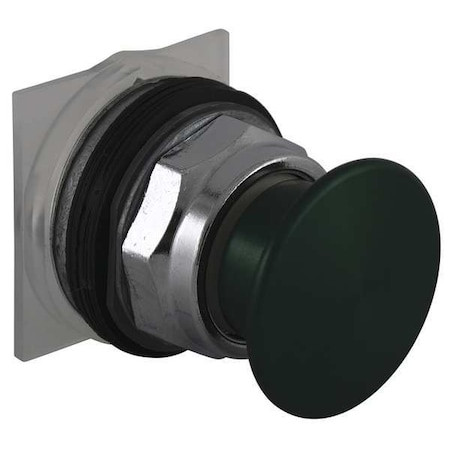

Push Button Operator, 30 mm, Green - 9001KR24GM
Mushroom Head Push Button, 30 mm, Momentary, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
- Country of Origin:
- Mexico
- Action:
- Momentary
- Size:
- 30 mm
- Head Material:
- Metal
- NEMA Rating:
- 1, 12, 13, 2, 3, 3R, 4, 6
- Type of Operator:
- 40mm Mushroom Head
- Lamp Type:
- Not Applicable
- Color:
- Green
- Legend:
- Not Applicable
- Number of Operators:
- 1
- Item:
- Mushroom Head Push Button
- Bezel Material:
- Metal
- Standards:
- Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
- Basic Material:
- Metal
- Accessory Group:
- Type K and SK Accessories
- IP Rating:
- IP66
- Terminal Connection:
- Not Applicable
- Lamp Module Type:
- Not Applicable
- Series:
- 9001K
- Product Type:
- Push Button Operators
- Ip Degree Of Protection:
- IP66 IEC 60529
- Operator Profile:
- green mushroom Ø 40 mm, unmarked, mushroom Ø 40 mm
- Mechanical Durability:
- 5000000 cycles
- Cad Overall Height:
- 45 mm
- Overvoltage Category:
- class II IEC 61140
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- UL 508 || NEMA
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -25-70°C
- Operator Additional Information:
- screw-on metal with set screw
- Cad Overall Depth:
- 70 mm
- Operating Position:
- any position
- Cap/Operator Or Lens Colour:
- green
- Shape Of Signaling Unit Head:
- round
- Contacts Type And Composition:
- without contact block
- Device Short Name:
- 9001K
- Mounting Diameter:
- 30 mm
- Protective Treatment:
- TC
- Ambient Air Temperature For Storage:
- -40-70°C
- Product Or Component Type:
- head for push-button
- Cad Overall Width:
- 45.5 mm
- Product Compatibility:
- contact block 9001KA..
- Legend Color:
- Not Applicable
- Operating Temperature - Maximum:
- 158 Degrees F
- Push Button Style:
- Mushroom Head
- Manufacturer Warranty Length:
- 18 mo
- Overall Width:
- 1.79 in
- NEMA Enclosure Rating:
- 1, 12, 13, 2, 3, 3R, 4
- Overall Depth:
- 2.76 in
- Lamp Voltage - Maximum:
- Not Applicable
- Hazardous Location Specification:
- Not Rated
- Operator Material:
- Metal
- Overall Height:
- 1.77 in
- Legend Background Color:
- Not Applicable
- Operating Temperature - Minimum:
- -13 Degrees F
- Operator Illumination:
- Non-Illuminated
- Mushroom Head Diameter:
- 40 mm
- Panel Cutout Diameter:
- 30 mm
- Maintained Action Release:
- Not Applicable
- Resistance Properties:
- Shock Resistant, Vibration Resistant
- Head Color:
- Green
- Number of Indicator Lights:
- 0
- Package Quantity:
- 1
-
-
-
