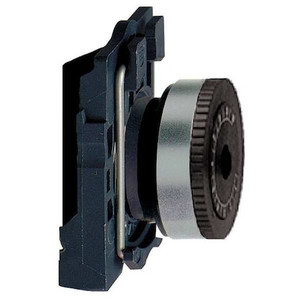

Push Button Operator, 22mm, Black - ZB5AD912

Push Button Operator, 22mm, Black - ZB5AD912

Schneider Electric
SKU:
ZB5AD912
|
UPC:
785901386056
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Potentiometer, NEMA Rating 13, 4X, 22 mm Size
Additional Information
Country of Origin:
France
Item:
Potentiometer
NEMA Rating:
13, 4X
Size:
22 mm
Overall Height:
1.83 in
IP Rating:
IP66
Resistance Properties:
Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum:
158 Degrees F
Overall Depth:
2.36 in
NEMA Enclosure Rating:
13, 4X
Knob Style:
Standard
Series:
XB5
Operating Temperature - Minimum:
-40 Degrees F
Manufacturer Warranty Length:
18 mo
Overall Width:
1.18 in
Panel Cutout Diameter:
22 mm
Protective Treatment:
TH
Ip Degree Of Protection:
IP66 IEC 60529
Shape Of Signaling Unit Head:
round
Device Presentation:
basic element
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type:
head + mounting base for potentiometer
Ambient Air Temperature For Storage:
-40-70°C
Electrical Shock Protection Class:
class II IEC 60536
Operator Profile:
knurled knob, with white)
Head Type:
standard
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Product Compatibility:
for use with Ø 6 mm shaft
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection:
IK03 IEC 50102
Ambient Air Temperature For Operation:
-40-70°C
Product Certifications:
GL || LROS (Lloyds register of shipping) || UL Listed || CSA || DNV || BV
Bezel Material:
dark grey plastic
Standards:
JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
Mounting Diameter:
22 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name:
ZB5
Package Quantity:
1
