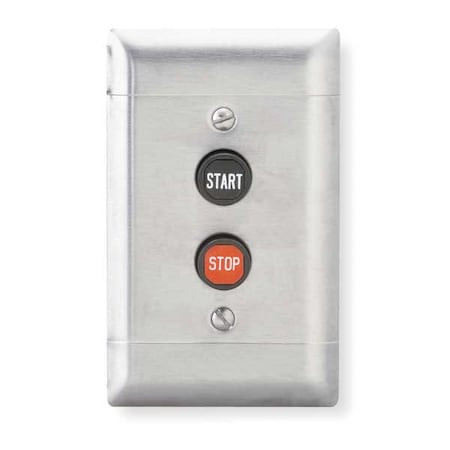

Push Bttn Cntrl Statn, 1NO/1NC, Start/Stop - 9001BF201

Push Bttn Cntrl Statn, 1NO/1NC, Start/Stop - 9001BF201

Square D
SKU:
9001BF201
|
UPC:
785901390459
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Start/Stop, Type of Operator Flush Button/Flush Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, IP Rating IP20, Enclosure Material Stainless Steel, Enclosure Color Gray, Standards CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
Additional Information
Country of Origin:
Mexico
Item:
Control Station
Contact Form:
1NO/1NC
Number of Gangs:
1
Legend:
Start/Stop
Type of Operator:
Flush Button/Flush Button
Number of Pilot Lights:
0
Number of Operators:
2
NEMA Rating:
1
Series:
9001
Hub Style:
Feed-Thru
Size:
30 mm
Standards:
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
Contact Rating:
5A @ 600V AC/24V DC
For Use With:
indoor
Action:
Momentary/Momentary
Mechanical Interlock:
No
Green Environmental Attribute:
RoHS 2011/65/EU Compliant
IP Rating:
IP20
Enclosure Material:
Stainless Steel
Operator Color:
(2) Black
Mounting:
flush
Number of Speeds:
1
Enclosure Color:
Gray
Mounting Style:
Surface
Terminal Connection:
screw clamp terminal
Operating Temperature - Maximum:
158 Degrees F
Includes Mechanical Interlock:
No Mechanical Interlock Included.
Maintained Action Release:
Not Applicable
Overall Width:
2.75 in
Mounting Orientation:
Not Applicable
DC Contact Rating:
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Product Type:
Control Station
Manufacturer Warranty Length:
18 mo
Hub Size - Maximum:
Not Applicable
NEMA Enclosure Rating:
1
AC Contact Rating:
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
Hazardous Location Specification:
Not Rated
Panel Cutout Diameter:
Not Applicable
Selector Switch Number of Positions:
Not Applicable
Overall Height:
4.5 in
Overall Depth:
2.13 in
Pilot Light Color:
Not Applicable
Operating Temperature - Minimum:
-13 Degrees F
Operator Configuration:
(2) Push Buttons
Package Quantity:
1
