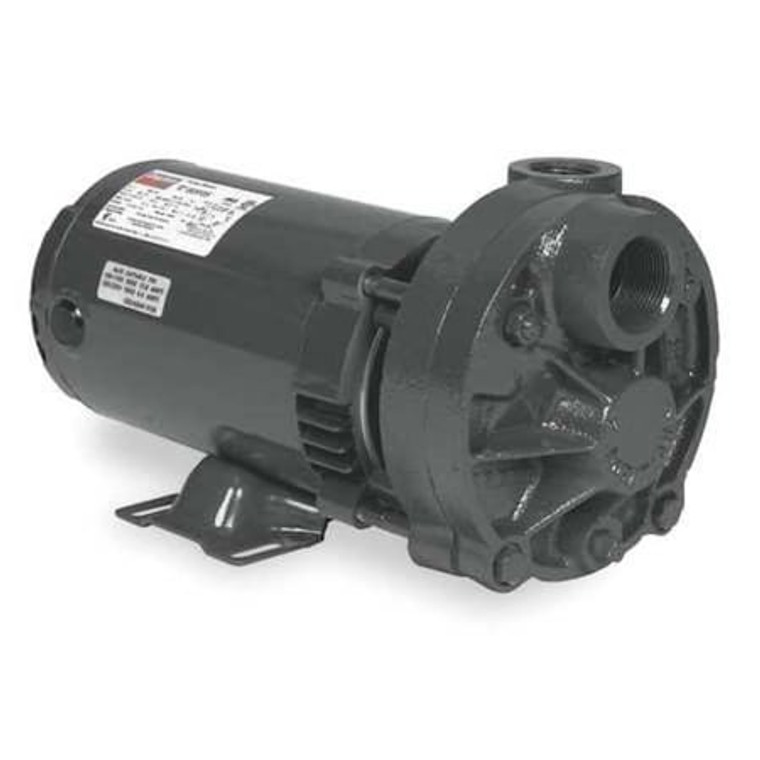

Pump, Turbine, 2 HP - 4UP58
Turbine Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 208-230/460V AC, Shut Off Pressure (Maximum) 85 psi, Maximum Flow Rate 25 gpm, Flow Rate @ 10 psi 25 gpm, Flow Rate @ 20 psi 23.7 gpm, Flow Rate @ 30 psi 22.8 gpm, Compatible Intake Pipe Size 1 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type 3-Phase, Best Efficiency Head 75 ft, Case Pressure (Maximum) 300 psi
- Country of Origin:
- United States
- HP:
- 2 hp
- Voltage:
- 208-230/460
- Wetted Materials:
- Bronze Fitted, Cast Iron
- Seal Material:
- Buna-N/Carbon/Ceramic (Face)
- Max. Pressure:
- 300 psi
- Bearing Type:
- Sealed Ball Bearing (Motor Bearing)
- GPM @ 75 PSI:
- 19.0
- Max. Case Pressure:
- 300 psi
- Width:
- 8 3/8 in
- GPM @ 50 PSI:
- 21.0
- Inlet (In.):
- 1
- GPM @ 20 PSI:
- 23.7
- Impeller Material:
- Bronze
- Includes:
- Cast Casing
- Inlet:
- 1 in
- Phase:
- Three
- GPM @ 60 PSI:
- 18.2
- Duty:
- Continuous
- Frame:
- 56c
- Outlet:
- 1 in
- Motor Enclosure:
- Totally Enclosed Fan Cooled (TEFC)
- Max. Dia. Solids:
- 25 Microns
- GPM @ 10 PSI:
- 25.0
- Max. Specific Gravity:
- 1
- Item:
- Turbine Pump
- Height:
- 6 1/2 in
- Best Efficiency GPM @ Head:
- 9.4 gpm @ 75 psi ft
- Motor Type:
- 3-Phase
- Port Rotation:
- 90 Degrees Increments
- Impeller Type:
- Regenerative Turbine
- Amps:
- 5.6-5.2/2.6
- Agency Compliance:
- CE & CSA ON MOTOR ONLY, UL
- Housing Material:
- Cast iron
- Manufacturers Warranty Length:
- 1 yr
- Inlet Pressure:
- 200 psi
- GPM @ 30 PSI:
- 22.8
- Overall Height:
- 6.5 in
- Standards:
- CE Certified (Motor Only), CSA Certified (Motor Only), UL Listed
- Overall Width:
- 8.38 in
- Discharge Type:
- NPT
- Wetted Material:
- Bronze Fitted, Cast Iron
- Flow Rate @ 240 psi:
- Not Applicable
- Compatible with Media Type:
- Water
- Flow Rate @ 140 psi:
- Not Applicable
- Flow Rate @ 70 psi:
- 18.8 gpm
- Flow Rate @ 100 psi:
- 15.7 gpm
- Compatible Discharge Pipe Size:
- 1 in
- Best Efficiency Head:
- 75 ft
- Specific Gravity (Maximum):
- 1
- Flow Rate @ 180 psi:
- Not Applicable
- Shut Off Pressure (Maximum):
- 85 psi
- Flow Rate @ 160 psi:
- Not Applicable
- Impeller Design:
- Regenerative Turbine
- Flow Rate @ 220 psi:
- Not Applicable
- Seal Type:
- Type 21
- Flow Rate @ 50 psi:
- 21.7 gpm
- Flow Rate @ 120 psi:
- 13.5 gpm
- Nameplate Voltage:
- 208-230/460V AC
- Flow Rate @ 60 psi:
- 20 gpm
- Minimum Flow Rate:
- 19 gpm
- Flow Rate @ 20 psi:
- 23.7 gpm
- Pump Housing Material:
- Cast Iron
- Flow Rate @ 200 psi:
- 2.7 gpm
- Intake Type:
- NPT
- Motor Frame Designation:
- 56C
- Maximum Flow Rate:
- 25 gpm
- Flow Rate @ 40 psi:
- 39 gpm
- Flow Rate @ 90 psi:
- Not Applicable
- Flow Rate @ 30 psi:
- 22.8 gpm
- Solid Diameter (Maximum):
- 25 micron
- Duty Cycle:
- Continuous
- Flow Rate @ 80 psi:
- 17.7 gpm
- Flow Rate @ 10 psi:
- 25 gpm
- NPSHr:
- 200 psi
- Manufacturer Warranty Length:
- 1 yr
- Flow Rate @ 15 psi:
- Not Applicable
- Case Pressure (Maximum):
- 300 psi
- Compatible Intake Pipe Size:
- 1 in
- Discharge Rotation:
- 90 Degrees Increments
- Flow Rate @ 260 psi:
- Not Applicable
- Horsepower:
- 2 hp
- Package Quantity:
- 1
