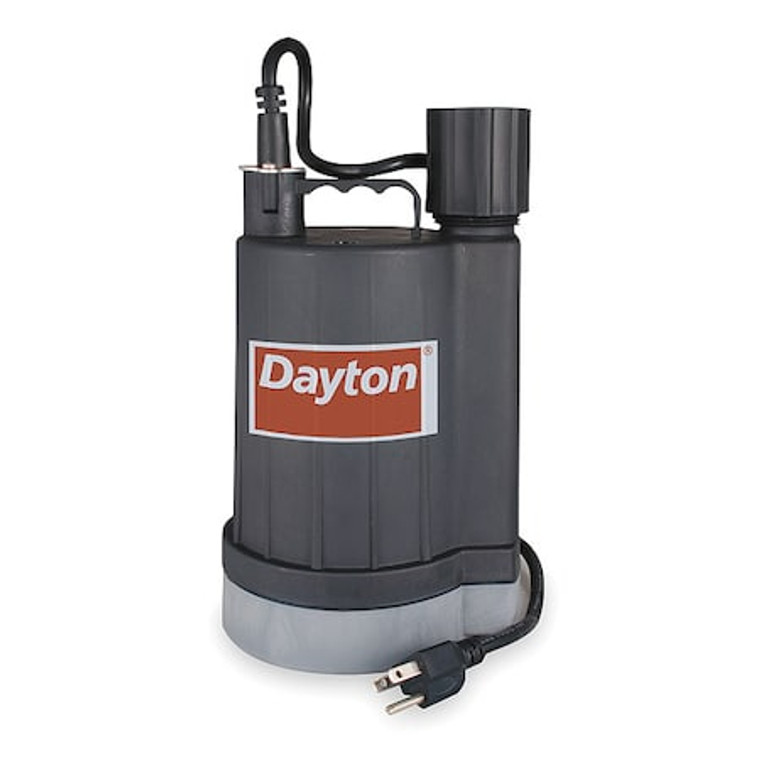

Pump, Sensor Utility, 1/4 HP, 120V - 2VAN7

Pump, Sensor Utility, 1/4 HP, 120V - 2VAN7

Dayton
SKU:
2VAN7
|
UPC:
190735234358
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Plug-In Utility Pump, HP 1/4, Rated Voltage 120V AC, Hz 60, Phase - Pumps 1, Amps 2.5 AC, Switch Actuation Sensor, Body Material Plastic, Impeller Material Thermoplastic, Shaft Seal Material - Pumps Buna-N, Ceramic, Stainless Steel, Flow Rate @ 5 Ft. of Head 30 gpm, Flow Rate @ 10 Ft. of Head 22 gpm, Flow Rate @ 15 Ft. of Head 12 gpm, Flow Rate @ 20 Ft. of Head 0 gpm, Max. Head 20 ft, Min. Sump Pit Dia. 6 3/4 in, Body Dia. 6 in, Overall Height 11 3/4 in, Max. Diameter Solids 3/32 in
Additional Information
Country of Origin:
Taiwan, Province of China
HP:
1/4
Switch Actuation:
Sensor
Body Material:
Plastic
Cord Length:
9 ft
Max. Diameter Solids:
3/32 in
Max. Head:
20 ft
Diameter:
6";Voltage - Pumps=120VAC"
Bearing Type:
Ball
For Use With:
Water
Insulation Class:
B
Input Phase AC:
1
Impeller Material - Pumps:
Thermoplastic
Phase:
1
Shaft Seal Material - Pumps:
Buna-N, Ceramic, Stainless Steel
Pump Body Material:
Thermoplastic
Impeller Material:
Thermoplastic
Switch Type - Pumps:
Electric
Switch Type:
Electronic
Height:
11-3/4";GPM of Water @ 15 Ft. of Head=12"
Max. Head - Pumps:
20 ft.
Pump RPM:
3450
GPM of Water @ 10 Ft. of Head:
22
Hz:
60
Amps:
2.5 AC
Motor RPM:
3450
Thermal Protection:
Yes
GPM of Water @ 5 Ft. of Head:
30
Max. Dia. Solids:
3/32";Cord Size=18 AWG"
Discharge NPT:
1-1/4";Max. Liquid Temp.=104 Degrees F"
Agency Compliance:
CSA
Duty:
Intermittent
Handle:
Yes
Item:
Plug-In Utility Pump
Housing Material:
Thermoplastic
Shaft Seal:
Ceramic, Buna N, Stainless Steel
Item - Dewatering Pumps:
Utility/Dewatering Pump
Voltage:
115
Motor Type:
PSC
Cord Length - Pumps:
9 ft.
Cord Type:
SJTW
Includes:
Garden Hose Adapter
Base Material:
Thermoplastic
Min. Sump Pit Dia.:
6 3/4 in
Discharge Standard:
NPT
Discharge Gender:
Male
Flow Rate @ 10 Ft. of Head:
22 gpm
Discharge Dia.:
1 1/4 in
RPM:
3,450 RPM
Rated Voltage:
120V AC
Body Dia.:
6 in
Flow Rate @ 20 Ft. of Head:
0 gpm
Overall Height:
11 3/4 in
Duty Cycle:
Intermittent
Flow Rate @ 15 Ft. of Head:
12 gpm
Flow Rate @ 5 Ft. of Head:
30 gpm
Discharge:
1 1/4 in MNPT
Phase - Pumps:
1
Pump Type:
Sensor Utility
Package Quantity:
1
