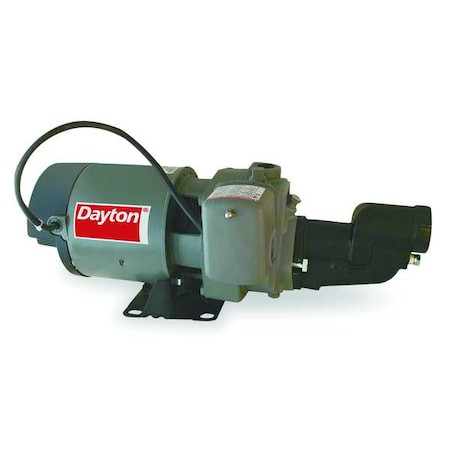

Pump, Jet, Shallow Well - 1D880
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Pump, Jet, Shallow Well - 1D880
Shallow Well Jet Pump, HP 3/4 hp, Rated Voltage 115/230V AC, Amps 13.0/6.5 A, Ejector Included Yes, Flow Rate @ 10 Ft. Lift @ 30 PSI 12.9 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 12.2 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 9.2 gpm, Max. Suction Lift 25 ft, Inlet 1-1/4 in NPT, Discharge 3/4 in NPT, Max. Case Pressure 74 psi, Max. Operating Temp. 140, Shut Off Pressure 74 psi, Overall Length 20, Overall Width 9 7/8, Overall Height 6 3/4, Includes Diffuser, Drain Plug
- Country of Origin:
- United States
- Item:
- Shallow Well Jet Pump
- HP:
- 3/4 hp
- Pump Material:
- Cast Iron
- Inlet:
- 1-1/4 in NPT
- Includes:
- Diffuser, Drain Plug
- Amps:
- 13.0/6.5 A
- Flow Rate @ 10 Ft. Lift @ 40 PSI:
- 12.2 gpm
- Ejector Included:
- Yes
- Discharge:
- 3/4 in NPT
- GPM of Water @ 5 Ft @ 30, 50 PSI:
- 15.7 9.0
- NPT Inlet (In.):
- 1-1/4
- Width (In.):
- 9-7/8
- GPM of Water @ 15 Ft @ 30, 50 PSI:
- 12.3 7.0
- Voltage:
- 115/230
- Max. Case Pressure (PSI):
- 74
- Amps AC:
- 13.0/6.5
- GPM of Water @ 25 Ft @ 30, 50 PSI:
- 7.5 5.5
- Length (In.):
- 20
- Motor Type:
- Capacitor Start
- NPT Outlet:
- 3/4
- Application:
- Ideal for Installations with Driven Well Points, Dug Wells, Drilled Wells or Cisterns Where Higher Operating Efficiencies are Desired, for Use When Vertical Distance to Water is Less Than 25 Feet and Installed as a Single Pipe System to the Water Sou
- Outlet:
- 3/4 NPT"
- GPM of Water @ 20 Ft @ 30, 50 PSI:
- 10.0 6.2
- Max. Operating Temp. (F):
- 140
- Shut Off (PSI):
- 74
- Pressure Switch Setting:
- 30 to 50 psi
- Height (In.):
- 6-3/4
- Resists:
- Corrosion
- GPM of Water @ 10 Ft @ 30, 50 PSI:
- 14.3 8.3
- Tank PSI:
- 30 50
- Rated Voltage:
- 115/230V AC
- Overall Length:
- 20
- Discharge Standard:
- NPT
- Inlet Standard:
- NPT
- Flow Rate @ 10 Ft. Lift @ 30 PSI:
- 12.9 gpm
- Shut Off Pressure:
- 74 psi
- Overall Height:
- 6 3/4
- Max. Operating Temp.:
- 140
- Max. Case Pressure:
- 74 psi
- Max. Suction Lift:
- 25 ft
- Inlet Dia.:
- 1 1/4 in
- Flow Rate @ 10 Ft. Lift @ 50 PSI:
- 9.2 gpm
- Overall Width:
- 9 7/8
- Package Quantity:
- 1
