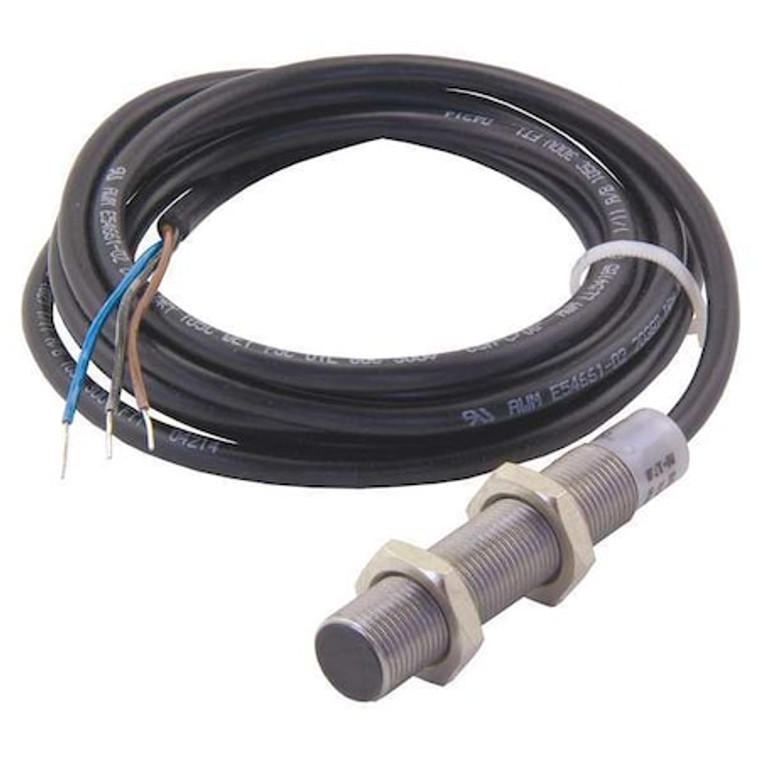

ProxSwitch, 12mm, Shielded, NPN, NO, 2m - E57G-12SNN2-C2

ProxSwitch, 12mm, Shielded, NPN, NO, 2m - E57G-12SNN2-C2

Eaton
SKU:
E57G-12SNN2-C2
|
UPC:
786685904542
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 64 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
Country of Origin:
Mexico
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
10 to 30V DC
Proximity Sensor Output Circuit Type:
3 Wire NPN
Output Mode:
NO
Length:
64 mm
Proximity Sensor Diameter:
12 mm
Width:
5 in
Max. Detecting Distance:
2 mm
Depth:
6 in
Proximity Sensor Electrical Connection:
2m Cable
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Shielded
Proximity Sensor Operating Frequency:
2,000 Hz
Case Material:
Stainless Steel
NEMA Rating:
4X
IP Rating:
IP67
Description/Special Features:
Proximity Switch
Standards:
UL Listed
Max. Current Load:
100mA
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Electrical Connection:
Bare Wire
Length (Straight Wireway):
64 mm
Series:
E57
Product Name:
Eaton E57 inductive proximity sensor
Certifications:
UL Listed
Product Height:
2 in
Type:
E57G Proximity Sensor
Indicator Type:
LED
Ring Inside Diameter:
Not Applicable
Features:
360 Degree LED Indicator, Laser-Engraved Label, Short Circuit Protection
Overall Diameter:
12 mm
NEMA Enclosure Rating:
4X
Sensing Face Shielding:
Shielded
Includes Indicator Lights:
Indicator Lights Included
Body Material:
Stainless Steel
Overall Depth:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Output Circuit Type:
NPN
Overall Width:
Not Applicable
Output Circuit Contact Form:
NO
Sensing Method:
Inductive
Electrical Installation Type:
Prewired Cable
AC Voltage Rating:
Not Rated
Sensing Distance - Maximum:
2 mm
Output Circuit Number of Wires:
3
Style:
Cylindrical
Cable Length:
2 m
Load Current - Maximum:
300 mA
DC Voltage Rating:
10-30V DC
Overall Height:
64 mm
Operating Temperature - Minimum:
-13 Degrees F
Resolution of Steel Ball Diameter:
Not Applicable
Switching Frequency:
2,000 Hz
Package Quantity:
1
