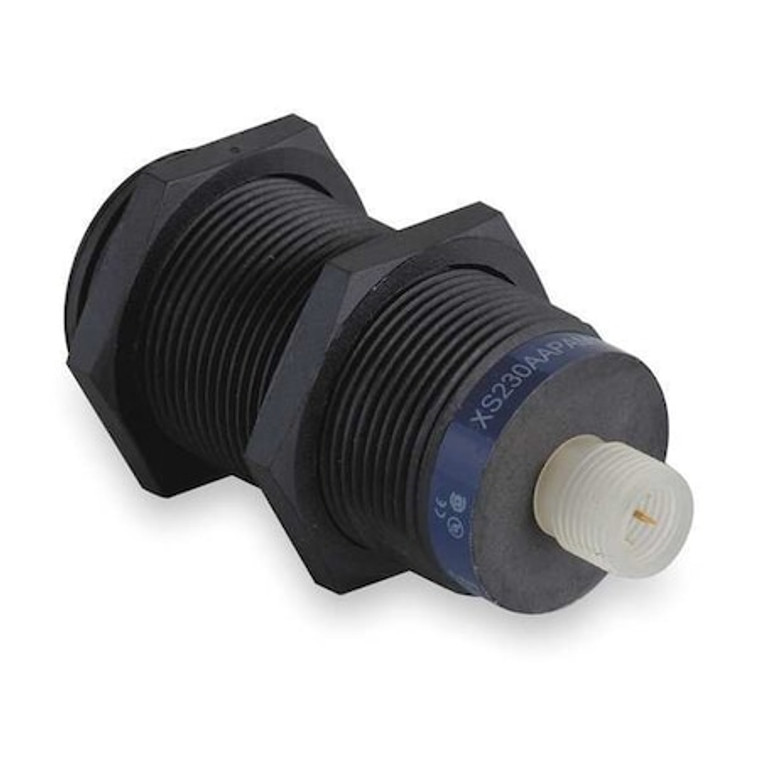

Proximity Sensor, Inductive, 22mm, PNP, NO - XS230AAPAM12

Proximity Sensor, Inductive, 22mm, PNP, NO - XS230AAPAM12

Telemecanique Sensors
SKU:
XS230AAPAM12
|
UPC:
785901876847
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
Country of Origin:
France
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Measurement Range:
15 to 40 mm
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
12 to 24V DC
Proximity Sensor Output Circuit Type:
3 Wire PNP
Output Mode:
NO
Length:
41 mm
Proximity Sensor Diameter:
30 mm
Max. Detecting Distance:
22 mm
Proximity Sensor Electrical Connection:
4 Pin M12 Connector
Basic Proximity Sensor Case Material:
Plastic
Shielded / Unshielded:
Unshielded
Proximity Sensor Operating Frequency:
500 Hz
Case Material:
Plastic
IP Rating:
IP67, IP69K
Standards:
CCC, CE, CSA, RoHS, UL Listed
NEMA Rating:
4X
Description/Special Features:
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range:
-13 Degrees to 185 Degrees F
Max. Current Load:
200mA
Electrical Connection:
M12
Length (Straight Wireway):
41 mm
Differential Travel:
1...15% of Sr
Vibration Resistance:
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity:
<= 200 mA overload and short-circuit protection
Supply Voltage Limits:
10-58 V DC
Body Type:
fixed
Shock Resistance:
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery:
1.4 ms
Maximum Delay Response:
0.6 ms
Application:
food and beverage
Maximum Delay First Up:
10 ms
Storage Temp. Range:
-40-85 °C
Series:
XS2
Maximum Voltage Drop:
<2 V closed)
Number of Pins:
4
NEMA Enclosure Rating:
4X
Resolution of Steel Ball Diameter:
Not Applicable
DC Voltage Rating:
12-48V DC
Body Finish:
Nickel Plated
Sensing Face Shielding:
Unshielded
Overall Depth:
Not Applicable
Sensing Distance - Maximum:
40 mm
AC Voltage Rating:
Not Rated
Style:
Cylindrical
Includes Indicator Lights:
Indicator Lights Included
Electrical Installation Type:
Direct Connector
Body Material:
PPS
Overall Height:
70 mm
Output Circuit Number of Wires:
3
Load Current - Maximum:
200 mA
Overall Diameter:
30 mm
Switching Frequency:
500 Hz
Overall Width:
Not Applicable
Operating Temperature - Minimum:
-13 Degrees F
Sensing Distance - Minimum:
15 mm
Output Circuit Type:
PNP
Ring Inside Diameter:
Not Applicable
Output Circuit Contact Form:
NO
Operating Temperature - Maximum:
185 Degrees F
Sensing Method:
Inductive
Package Quantity:
1
