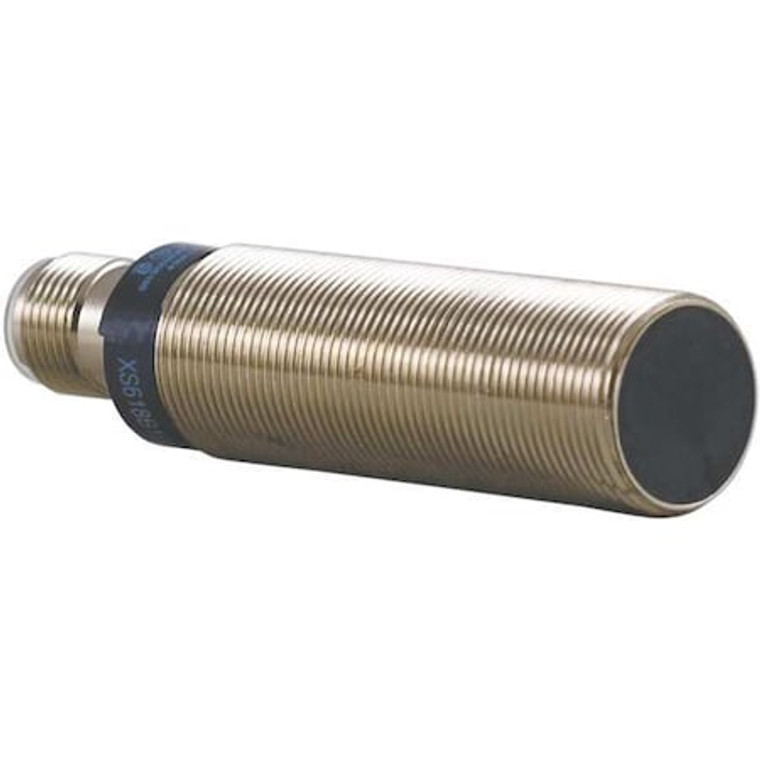

Proximity Sensor, Inductive, 18mm, NPN, NO - XS618B1NAL2

Proximity Sensor, Inductive, 18mm, NPN, NO - XS618B1NAL2

Telemecanique Sensors
SKU:
XS618B1NAL2
|
UPC:
785901997948
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
Country of Origin:
Multiple
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Measurement Range:
4 to 8 mm
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
12 to 48V DC
Proximity Sensor Output Circuit Type:
3 Wire NPN
Output Mode:
NO
Length:
41 mm
Proximity Sensor Diameter:
18 mm
Max. Detecting Distance:
8 mm
Proximity Sensor Electrical Connection:
2m Cable
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Shielded
Proximity Sensor Operating Frequency:
1,000 Hz
Case Material:
Nickel Plated Brass
Max. Current Load:
200mA
Standards:
CE, CSA, E2, RoHS, UL Listed
NEMA Rating:
4X
IP Rating:
IP68, IP69K
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Description/Special Features:
Extended Range
Electrical Connection:
Bare Wire
Length (Straight Wireway):
41 mm
Maximum Delay Recovery:
0.7 ms
Maximum Voltage Drop:
<2 V closed)
Supply Voltage Limits:
10-58 V DC
Shock Resistance:
50 gn 11 ms IEC 60068-2-27
Application:
mobile equipment; general purpose
Switching Capacity:
<= 200 mA DC overload and short-circuit protection
Storage Temp. Range:
-40-85 °C
Body Type:
fixed
Series:
XS6
Maximum Delay Response:
0.3 ms
Differential Travel:
1...15% of Sr
Maximum Delay First Up:
10 ms
Vibration Resistance:
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Features:
Extended Range
Operating Temperature - Minimum:
-13 Degrees F
Overall Diameter:
18 mm
NEMA Enclosure Rating:
4X
Overall Width:
Not Applicable
Output Circuit Contact Form:
NO
Overall Height:
62 mm
Includes Indicator Lights:
Indicator Lights Included
Sensing Face Shielding:
Shielded
Electrical Installation Type:
Prewired Cable
Sensing Distance - Minimum:
4 mm
DC Voltage Rating:
12-48V DC
AC Voltage Rating:
Not Rated
Output Circuit Number of Wires:
3
Overall Depth:
Not Applicable
Switching Frequency:
1,000 Hz
Cable Length:
2 m
Operating Temperature - Maximum:
158 Degrees F
Body Finish:
Nickel Plated
Ring Inside Diameter:
Not Applicable
Sensing Distance - Maximum:
8 mm
Body Material:
Brass
Output Circuit Type:
NPN
Load Current - Maximum:
200 mA
Sensing Method:
Inductive
Style:
Cylindrical
Resolution of Steel Ball Diameter:
Not Applicable
Package Quantity:
1
