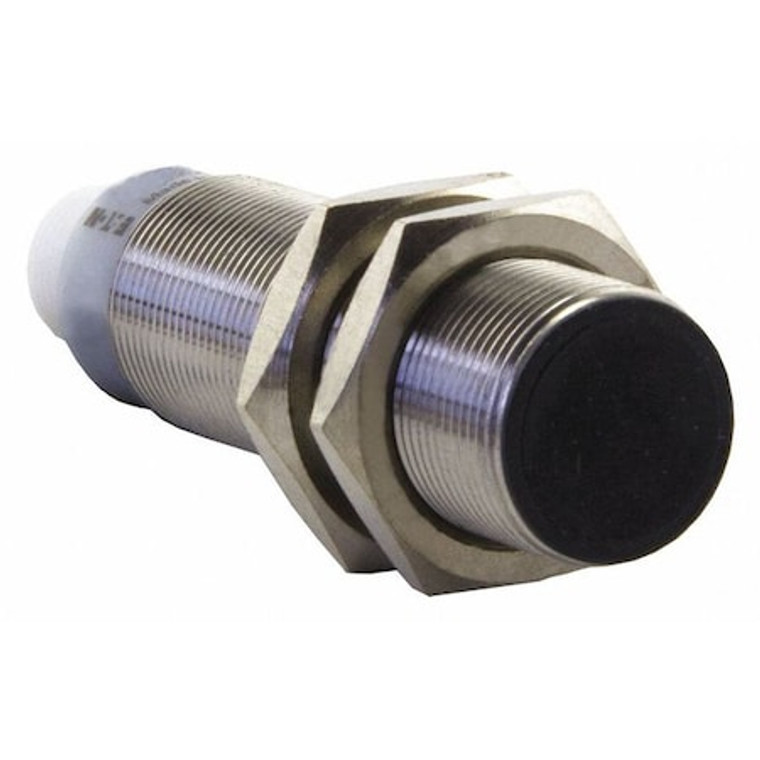

Proximity Sensor, Inductive, 18mm, NO - E59-M18C116D01-D1

Proximity Sensor, Inductive, 18mm, NO - E59-M18C116D01-D1

Eaton
SKU:
E59-M18C116D01-D1
|
UPC:
782116303977
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 150 Hz, Proximity Sensor Output Circuit Type Programmable, Max. Detecting Distance 16 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 69 mm, Operating Temp. Range -40 Degrees to 158 Degrees F
Additional Information
Country of Origin:
Mexico
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
6 to 48V DC
Proximity Sensor Output Circuit Type:
Programmable
Output Mode:
NO
Length:
69 mm
Proximity Sensor Diameter:
18 mm
Width:
0.71 in
Max. Detecting Distance:
16 mm
Depth:
2.73 in
Proximity Sensor Electrical Connection:
4 Pin Micro DC Connector
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Unshielded
Proximity Sensor Operating Frequency:
150 Hz
Case Material:
Stainless Steel
Description/Special Features:
Programmable
Operating Temp. Range:
-40 Degrees to 158 Degrees F
Standards:
CE, CSA, UL Listed
NEMA Rating:
12, 13, 4, 4X, 6, 6P
IP Rating:
IP67, IP69K
Max. Current Load:
300mA
Electrical Connection:
M12
Length (Straight Wireway):
69 mm
Series:
E59
Operating Temperature - Min:
-40 °F
Input Voltage:
6-48 Vdc
Environmental Rating:
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Protection:
Auto reset
Connection:
M12
Enclosure Material:
303 stainless steel
Certifications:
UL Listed;CSA Certified
Number of Pins:
4
Contact Rating:
300 mA at 6-48 Vdc
Contact Configuration:
NPN/PNP auto configure, NO
Temperature Rating:
-40 to 158 °F
Compliances:
CE Marked
Maximum DC Current:
300 mA
Size:
18
Product Name:
Eaton E59 iProx programmable inductive proximity sensor
Operating Temperature - Max:
158 °F
Accuracy:
< 3% sensing range
Led Indicator:
360° viewable LED
Output Circuit Number of Wires:
3
DC Voltage Rating:
6-48V DC
Overall Diameter:
18 mm
Resolution of Steel Ball Diameter:
Not Applicable
Overall Height:
69 mm
Electrical Installation Type:
Direct Connector
Ring Inside Diameter:
Not Applicable
Body Material:
Stainless Steel
Overall Depth:
Not Applicable
Includes Indicator Lights:
Indicator Lights Included
Style:
Cylindrical
Features:
Band Sensing, Smartsense Embedded Microprocessor Technology, Nuisance Metal Rejection, Optional Computer Programming Cable, Over Speed Detection, Timing Delays, Under Speed Detection, Windows-Based Proxview Configuration
Output Circuit Contact Form:
NO
Operating Temperature - Maximum:
158 Degrees F
NEMA Enclosure Rating:
12, 13, 4, 4X, 6, 6P
AC Voltage Rating:
Not Rated
Body Stainless Steel Grade:
303
Overall Width:
Not Applicable
Load Current - Maximum:
300 mA
Output Circuit Type:
NPN and PNP
Sensing Method:
Inductive
Switching Frequency:
150 Hz
Sensing Face Shielding:
Unshielded
Operating Temperature - Minimum:
-40 Degrees F
Sensing Distance - Maximum:
16 mm
Package Quantity:
1
