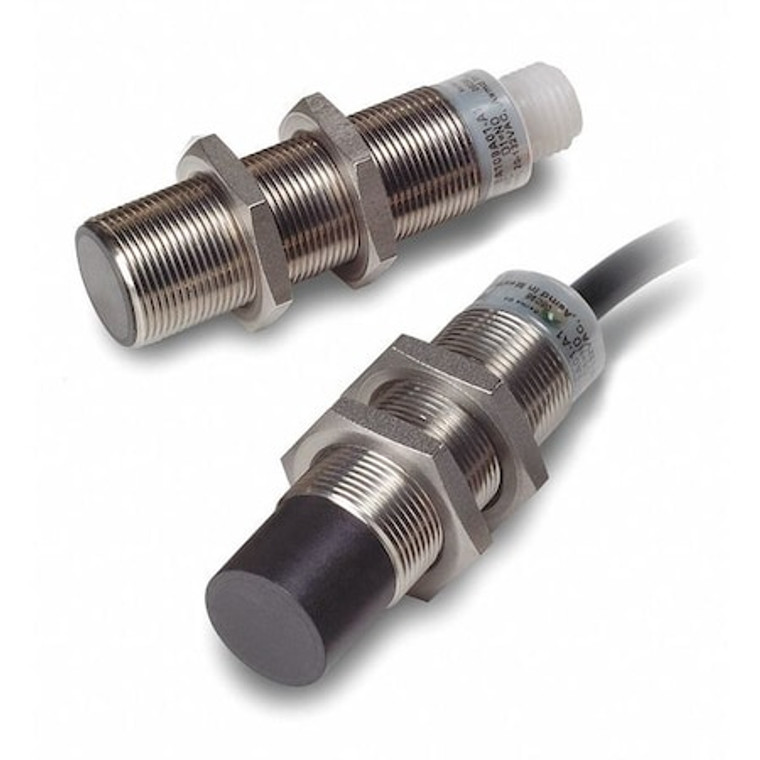

Proximity Sensor, Inductive, 18mm, NO - E59-M18A108C02-D1

Proximity Sensor, Inductive, 18mm, NO - E59-M18A108C02-D1

Eaton
SKU:
E59-M18A108C02-D1
|
UPC:
782116183319
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Shielded, Proximity Sensor Operating Frequency 390 Hz, Proximity Sensor Output Circuit Type Programmable, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 64 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
Country of Origin:
Mexico
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
6 to 48V DC
Proximity Sensor Output Circuit Type:
Programmable
Output Mode:
NO
Length:
64 mm
Proximity Sensor Diameter:
18 mm
Width:
0.71 in
Max. Detecting Distance:
8 mm
Depth:
0.71 in
Proximity Sensor Electrical Connection:
2m Cable
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Shielded
Proximity Sensor Operating Frequency:
390 Hz
Case Material:
Stainless Steel
Standards:
CE, CSA, UL Listed
Operating Temp. Range:
-40 Degrees to 158 Degrees F
IP Rating:
IP67, IP69K
NEMA Rating:
12, 13, 4, 4X, 6, 6P
Max. Current Load:
300mA
Description/Special Features:
Programmable
Electrical Connection:
Bare Wire
Length (Straight Wireway):
64 mm
Series:
E59
Product Name:
Eaton E59 iProx programmable inductive proximity sensor
Cable Type:
Polyvinyl Chloride (PVC)
Certifications:
UL Listed;CSA Certified
Contact Rating:
500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Cord Length:
79.2 ft
Environmental Rating:
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Accuracy:
< 1% of sensing distance
Connection:
6.6 ft (2 m) cable
Input Voltage:
6-48 Vdc
Operating Temperature - Min:
-40 °F
Operating Temperature - Max:
158 °F
Led Indicator:
Green power up turns red when output energized
Sensor Type:
Inductive proximity
Product Height:
2.54 in
Contact Configuration:
NPN/PNP auto configure, NO
Enclosure Material:
Front cap
Maximum DC Current:
500 mA
Protection:
Auto reset short circuit
Compliances:
CE Marked
Overall Height:
65 mm
Electrical Installation Type:
Prewired Cable
Overall Diameter:
18 mm
Resolution of Steel Ball Diameter:
Not Applicable
Overall Width:
Not Applicable
Output Circuit Contact Form:
NO
Style:
Cylindrical
AC Voltage Rating:
Not Rated
Includes Indicator Lights:
Indicator Lights Included
Switching Frequency:
390 Hz
Body Material:
Stainless Steel
Sensing Face Shielding:
Shielded
Output Circuit Number of Wires:
3
Operating Temperature - Minimum:
-40 Degrees F
Overall Depth:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Features:
Band Sensing, Smartsense Embedded Microprocessor Technology, Nuisance Metal Rejection, Optional Computer Programming Cable, Over Speed Detection, Timing Delays, Under Speed Detection, Windows-Based Proxview Configuration
NEMA Enclosure Rating:
12, 13, 4, 4X, 6, 6P
Load Current - Maximum:
300 mA
Output Circuit Type:
NPN and PNP
Cable Length:
2 m
DC Voltage Rating:
6-48V DC
Ring Inside Diameter:
Not Applicable
Sensing Distance - Maximum:
8 mm
Sensing Method:
Inductive
Package Quantity:
1
