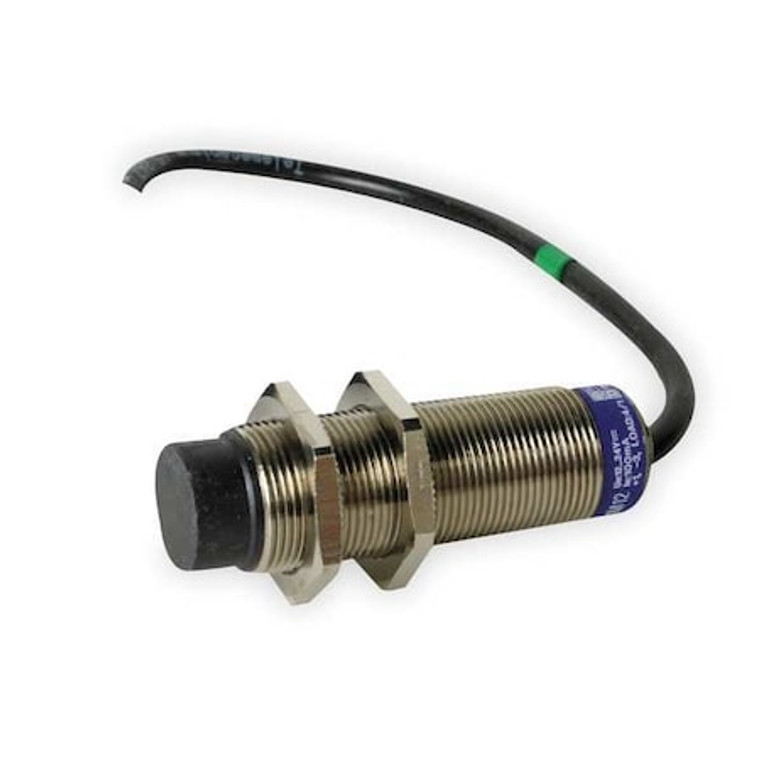

Proximity Sensor, Inductive, 18mm, NC - XS618B1MBL2

Proximity Sensor, Inductive, 18mm, NC - XS618B1MBL2

Telemecanique Sensors
SKU:
XS618B1MBL2
|
UPC:
785901883890
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 25 Hz AC/1000 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
Country of Origin:
Multiple
Proximity Sensor Style:
Cylindrical Proximity Sensor
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensing Method:
Inductive
Measurement Range:
4 to 8 mm
Proximity Sensor Power Requirement:
24 to 240V AC/DC
Proximity Sensor Output Circuit Type:
2 Wire
Output Mode:
NC
Proximity Sensor Diameter:
18 mm
Length:
41 mm
Max. Detecting Distance:
8 mm
Proximity Sensor Electrical Connection:
2m Cable
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Shielded
Case Material:
Nickel Plated Brass
Proximity Sensor Operating Frequency:
25 Hz AC/1000 Hz DC
Description/Special Features:
Extended Range
Max. Current Load:
200mA
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Standards:
CE, CSA, RoHS, UL Listed
NEMA Rating:
4X
IP Rating:
IP68, IP69K
Electrical Connection:
Bare Wire
Length (Straight Wireway):
41 mm
Maximum Delay Recovery:
0.5 ms
Storage Temp. Range:
-40-85 °C
Switching Capacity:
5...200 mA DC || 5...300 mA AC
Supply Voltage Limits:
20-264 V AC/DC
Body Type:
fixed
Maximum Voltage Drop:
<5.5 V closed)
Maximum Delay Response:
0.5 ms
Application:
general purpose
Shock Resistance:
50 gn 11 ms IEC 60068-2-27
Maximum Delay First Up:
25 ms
Differential Travel:
1...15% of Sr
Vibration Resistance:
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series:
XS6
Includes Indicator Lights:
Indicator Lights Included
Features:
Extended Range
Overall Depth:
Not Applicable
Body Finish:
Nickel Plated
Style:
Cylindrical
Electrical Installation Type:
Prewired Cable
Switching Frequency:
1,000 Hz (DC), 25 Hz (AC)
Ring Inside Diameter:
Not Applicable
Sensing Distance - Maximum:
8 mm
Operating Temperature - Maximum:
158 Degrees F
Resolution of Steel Ball Diameter:
Not Applicable
Output Circuit Type:
AC/DC-Type
Overall Width:
Not Applicable
Cable Length:
2 m
Body Material:
Brass
Sensing Method:
Inductive
DC Voltage Rating:
24-240V DC
Overall Diameter:
18 mm
Output Circuit Number of Wires:
2
Overall Height:
62 mm
AC Voltage Rating:
24-240V AC
NEMA Enclosure Rating:
4X
Operating Temperature - Minimum:
-13 Degrees F
Output Circuit Contact Form:
NC
Sensing Face Shielding:
Shielded
Sensing Distance - Minimum:
4 mm
Load Current - Maximum:
300 mA
Package Quantity:
1
