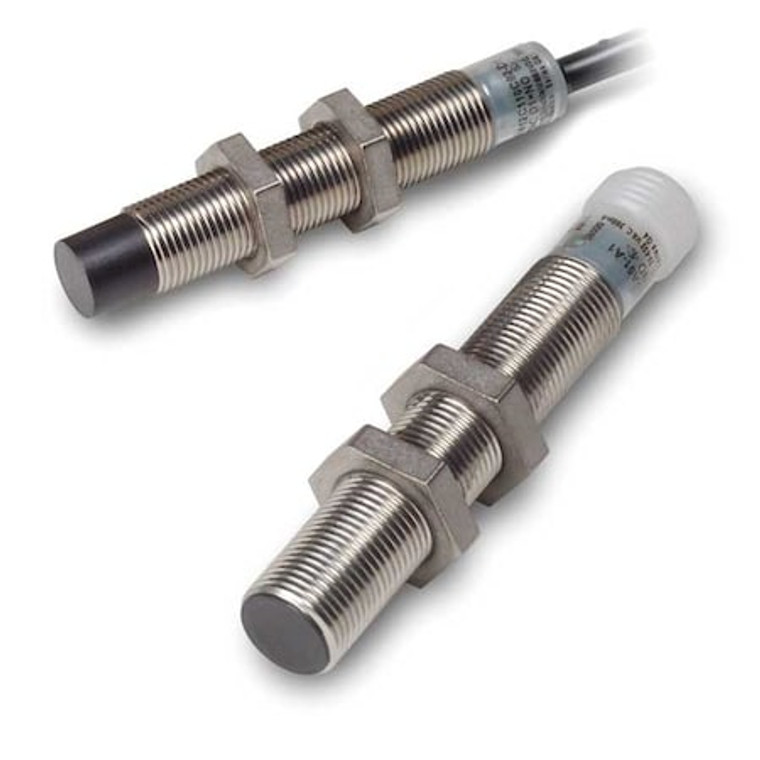

Proximity Sensor, Inductive, 12mm, NO - E59-M12C110C02-D1

Proximity Sensor, Inductive, 12mm, NO - E59-M12C110C02-D1

Eaton
SKU:
E59-M12C110C02-D1
|
UPC:
782116183258
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type Programmable, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 62 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
Country of Origin:
Mexico
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical Proximity Sensor
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
6 to 48V DC
Proximity Sensor Output Circuit Type:
Programmable
Output Mode:
NO
Length:
62 mm
Proximity Sensor Diameter:
12 mm
Width:
0.47 in
Max. Detecting Distance:
10 mm
Depth:
2.46 in
Proximity Sensor Electrical Connection:
2m Cable
Basic Proximity Sensor Case Material:
Metal
Shielded / Unshielded:
Unshielded
Proximity Sensor Operating Frequency:
300 Hz
Case Material:
Stainless Steel
NEMA Rating:
12, 13, 4, 4X, 6, 6P
Description/Special Features:
Programmable
Max. Current Load:
300mA
Operating Temp. Range:
-40 Degrees to 158 Degrees F
IP Rating:
IP67, IP69K
Standards:
CE, CSA, UL Listed
Electrical Connection:
Bare Wire
Length (Straight Wireway):
62 mm
Series:
E59
Operating Temperature - Min:
-40 °F
Number of Wires:
3
Operating Temperature - Max:
158 °F
Contact Configuration:
NPN/PNP auto configure, NO
Product Name:
Eaton E59 iProx programmable inductive proximity sensor
Temperature Rating:
-40 to 158 °F
Enclosure Material:
303 stainless steel
Contact Rating:
300 mA at 6-48 Vdc
Input Voltage:
6-48 Vdc
Led Indicator:
360° viewable LED
Accuracy:
< 3% sensing range
Cable Type:
Polyvinyl Chloride (PVC)
Compliances:
CE Marked
Certifications:
UL Listed;CSA Certified
Environmental Rating:
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Maximum DC Current:
300 mA
Protection:
Auto reset
Cord Length:
79.2 ft
Overall Depth:
Not Applicable
Overall Diameter:
12 mm
Resolution of Steel Ball Diameter:
Not Applicable
Load Current - Maximum:
300 mA
Sensing Face Shielding:
Unshielded
Includes Indicator Lights:
Indicator Lights Included
NEMA Enclosure Rating:
12, 13, 4, 4X, 6, 6P
Operating Temperature - Maximum:
158 Degrees F
Sensing Distance - Maximum:
10 mm
Ring Inside Diameter:
Not Applicable
Output Circuit Number of Wires:
3
Overall Height:
62 mm
Output Circuit Type:
Programmable
Overall Width:
Not Applicable
Style:
Cylindrical
Sensing Method:
Inductive
Cable Length:
2 m
DC Voltage Rating:
6-48V DC
Body Stainless Steel Grade:
303
Body Material:
Stainless Steel
Electrical Installation Type:
Prewired Cable
AC Voltage Rating:
Not Rated
Features:
Band Sensing, Smartsense Embedded Microprocessor Technology, Nuisance Metal Rejection, Optional Computer Programming Cable, Over Speed Detection, Timing Delays, Under Speed Detection, Windows-Based Proxview Configuration
Switching Frequency:
300 Hz
Operating Temperature - Minimum:
-40 Degrees F
Output Circuit Contact Form:
NO
Package Quantity:
1
