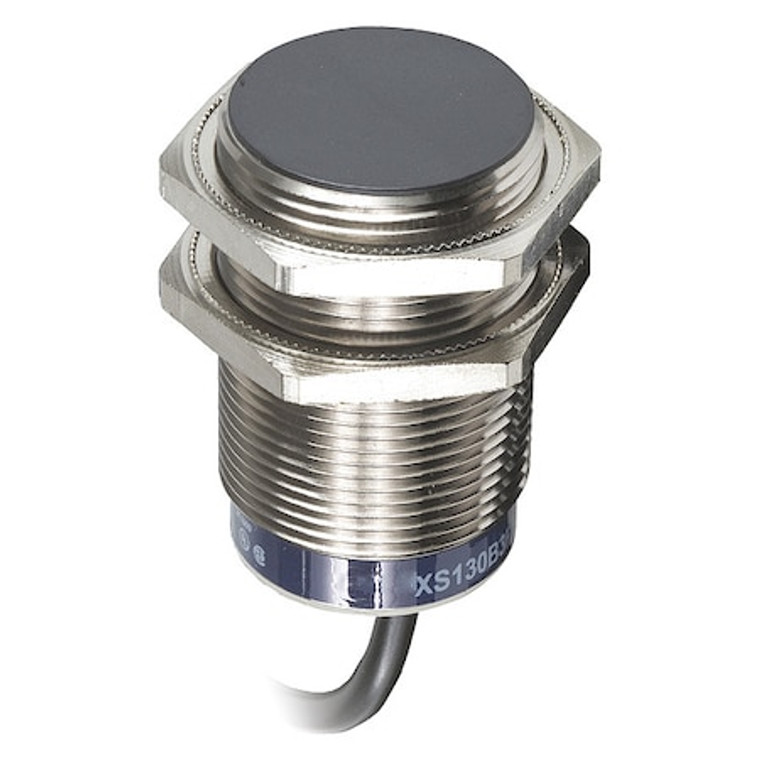

Proximity Sensor 30Mm Ac/Dc Xs6+Options - XS630B1MAL5

Proximity Sensor 30Mm Ac/Dc Xs6+Options - XS630B1MAL5

Telemecanique Sensors
SKU:
XS630B1MAL5
|
UPC:
785901446347
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Inductive Cylindrical Proximity Sensor, IP Rating IP68, IP69K, Standards CE, CSA, UL Listed
Additional Information
Country of Origin:
Multiple
Item:
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style:
Cylindrical M30
Measurement Range:
8 to 15 mm
Proximity Sensing Method:
Inductive
Proximity Sensor Power Requirement:
24 to 240V AC/DC
Proximity Sensor Output Circuit Type:
2-Wire AC/DC
Output Mode:
1 NO
Length:
62 mm
Max. Detecting Distance:
15 mm
Proximity Sensor Electrical Connection:
Cable Connection
Basic Proximity Sensor Case Material:
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency:
Less than Or Equal to 25 Hz AC; Less than Or Equal to 500 Hz DC
Standards:
CE, CSA, UL Listed
Operating Temp. Range:
-25 to 70 Degrees C
IP Rating:
IP68, IP69K
Electrical Connection:
Bare Wire
Description/Special Features:
Frontal Detection Face; Output State 1 LED Yellow
Switching Capacity:
5...200 mA DC || 5...300 mA AC
Maximum Delay First Up:
25 ms
Maximum Voltage Drop:
<5.5 V closed)
Application:
general purpose
Series:
XS6
Differential Travel:
1...15% of Sr
Storage Temp. Range:
-40-85 °C
Maximum Delay Recovery:
2 ms
Supply Voltage Limits:
20-264 V AC/DC
Maximum Delay Response:
0.5 ms
Vibration Resistance:
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Body Type:
fixed
Shock Resistance:
50 gn 11 ms IEC 60068-2-27
Features:
Flush Mountable
Overall Width:
Not Applicable
AC Voltage Rating:
24-240V AC
Sensing Distance - Minimum:
8 mm
Body Finish:
Nickel Plated
Operating Temperature - Minimum:
-13 Degrees F
Electrical Installation Type:
Prewired Cable
Sensing Method:
Inductive
DC Voltage Rating:
24-240V DC
Cable Length:
5 m
Operating Temperature - Maximum:
158 Degrees F
Output Circuit Number of Wires:
2
Overall Depth:
Not Applicable
Overall Diameter:
36 mm
Switching Frequency:
25 Hz (AC), 500 Hz (DC)
Overall Height:
62 mm
Style:
Cylindrical
Sensing Face Shielding:
Shielded
Sensing Distance - Maximum:
15 mm
Body Material:
Brass
Includes Indicator Lights:
Indicator Lights Included
Output Circuit Contact Form:
NO
Resolution of Steel Ball Diameter:
Not Applicable
Ring Inside Diameter:
Not Applicable
Package Quantity:
1
