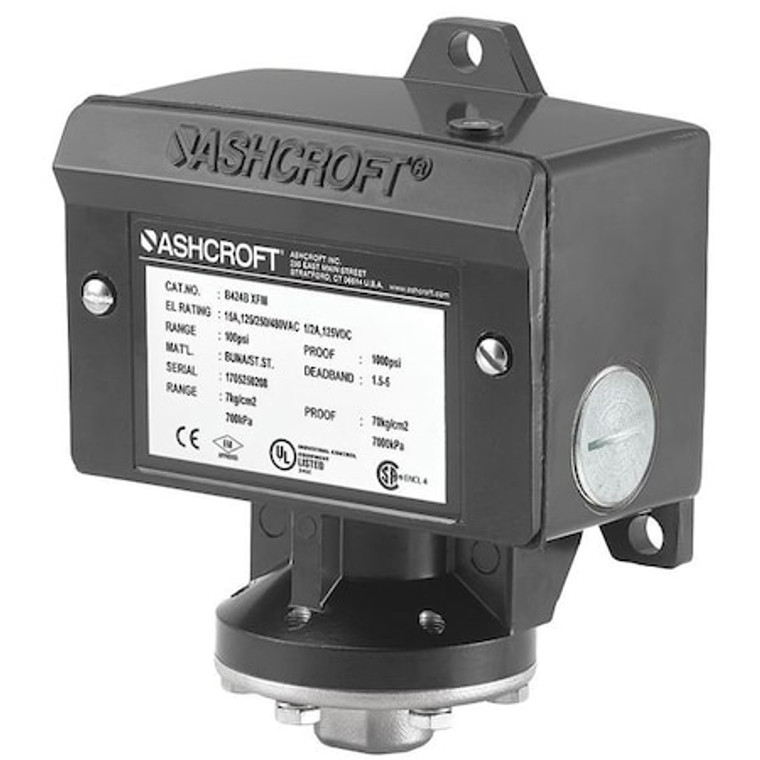

Pressure Switch, (1) Port, 1/4 in FNPT, SPDT, 1.5 to 15 psi, Standard Action - B424VXCYLM15

Pressure Switch, (1) Port, 1/4 in FNPT, SPDT, 1.5 to 15 psi, Standard Action - B424VXCYLM15

Ashcroft
SKU:
B424VXCYLM15
|
UPC:
783156420242
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Switch, Differential 0.5 to 1.5 psi, Range 1.5 to 15 psi, Port Type 1-Port 1/4 in FNPT, Contact Form SPDT, NEMA Rating 13, 3, 4, 4X, Actuation Type Diaphragm, Action Standard, Series B, Factory On/Off Setting 90 Percent of Range, AC Contact Rating 15 A @ 125 V, 15 A @ 250 V, 15 A @ 480 V, DC Contact Rating 0.25 A @ 125 V, 0.5 A @ 120 V, 6 A @ 30 V
Additional Information
Country of Origin:
United States
Item:
Pressure Switch
Pressure Switch Port Type:
(1) Port, 1/4 in FNPT
Pressure Switch Factory On/Off Setting:
90% of Range
Pressure Switch Differential:
0.5 to 1.5 psi
Pressure Switch Range:
1.5 to 15 psi
Pressure Switch Electrical Contact Form:
SPDT
Pressure Switch Action:
Standard
Differential:
0.5 to 1.5 psi
Action:
Standard
Factory On/Off Setting:
90% of Range
AC Contact Rating:
15A @ 125/250/480V
Series:
B
Port Type:
(1) Port, 1/4 in FNPT
Contact Form:
SPDT
NEMA Rating:
13, 3, 4, 4X
DC Contact Rating:
0.25A @ 250V, 0.5A @ 125V, 6A @ 30V
Actuation Type:
Diaphragm
Range:
1.5 to 15 psi
IP Rating:
IP66
Standards:
3A Approved, CE, CRN, FM Listed, RoHS, UL Listed
NEMA Enclosure Rating:
4X
Overall Height:
5.11 in
Media Temperature - Maximum:
70 Degrees F
Overall Depth:
3.31 in
Differential Pressure - Minimum:
0.5 psi
Overall Width:
4 in
Deadband Adjustability:
Adjustable
Operating Temperature - Minimum:
-20 Degrees F
Pressure - Maximum:
15 psi
Hazardous Location Specification:
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Number of Pressure Connection Ports:
4
Proof Pressure:
500 psi
Differential Pressure - Maximum:
1.5 psi
Operating Temperature - Maximum:
150 Degrees F
Manufacturer Warranty Length:
1 yr
Pressure - Minimum:
1.5 psi
Media Temperature - Minimum:
50 Degrees F
Pressure Connection Type:
1/4 FNPT"
Package Quantity:
1
