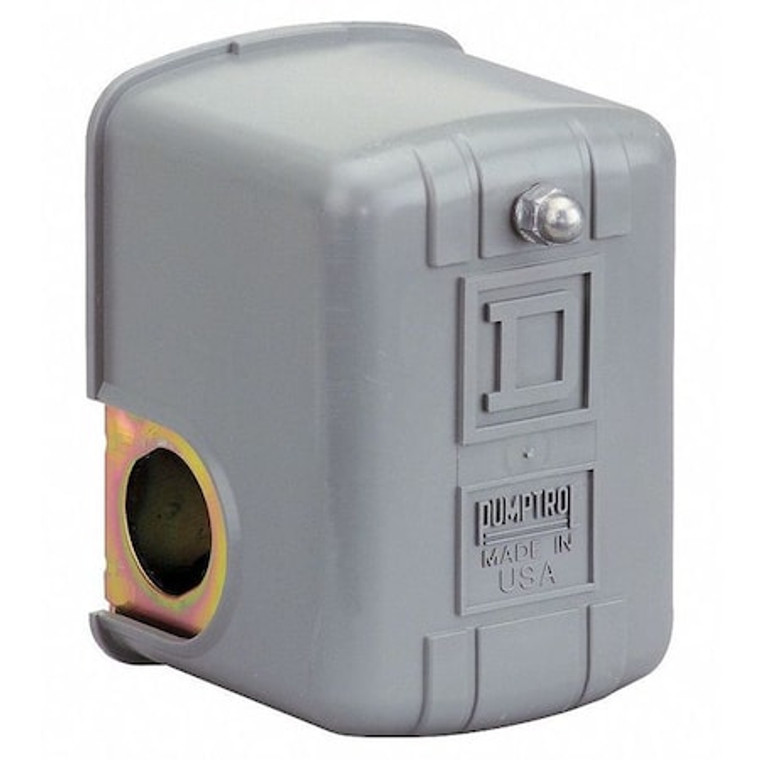

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 5 to 80 psi, Standard Action - 9013FYG2J21M1

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 5 to 80 psi, Standard Action - 9013FYG2J21M1

Telemecanique Sensors
SKU:
9013FYG2J21M1
|
UPC:
785901112433
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Water Pump Switch, Water Pump, Manual Switch Action Auto/Off, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 30/50 psi, No Pressure Switch Unloader, Pressure Switch Differential 20 to 30 psi, Pressure Switch Range 5 to 80 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013FY, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 1 hp, Temp. Range -22 Degrees to 257 Degrees F
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Application:
Water Pump
Manual Switch Action:
Auto/Off
Pressure Switch Port Type:
(1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting:
30/50 psi
Pressure Switch Unloader:
No
Pressure Switch Differential:
20 to 30 psi
Pressure Switch Range:
5 to 80 psi
Pressure Switch Electrical Contact Form:
DPST
Pressure Switch Action:
Standard
HP @ 3 Phase - 480V:
1 hp
HP @ 3 Phase - 240V:
5 hp
Series:
9013FYG
Temp. Range:
-22 Degrees to 257 Degrees F
HP @ 1 Phase - 240V:
3 hp
AC Contact Rating:
10A @ 575V
HP @ 1 Phase - 120V:
2 hp
NEMA Rating:
1
Standards:
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Differential:
Adjustable Differential Scale
Burst Pressure:
220 psi
Contact Form:
2NC
Circuit Type:
Power Circuit
Actuation Type:
Diaphragm
Electrical Connection:
Screw-Clamp Terminals
HP @ 1 Phase - 230V:
3
IP Rating:
IP20 (IEC 60529)
DC Contact Rating:
1/2 HP @ 115VDC, 1/2 HP @ 230VDC
Unloader:
No Unloader Included
Phase:
Single/Three
Features:
Pumptrol
Type:
Electromechanical Pressure Switch
Material:
Polypropylene Cover; Noryl Thermoplastic Resin Cover
Product Type:
Water Pump Switch
Switch Function Configuration:
Auto/Off
Factory Off Setting:
50 psi
Overall Depth:
3.76 in
Factory On Setting:
30 psi
Horsepower @ Single Phase - 120V AC:
2 hp
Pressure Switch Action Type:
Standard
Horsepower @ Single Phase - 240V AC:
3 hp
Operating Temperature - Minimum:
-33 Degrees F
Overall Width:
3.1 in
Pressure Connection Type:
1/4 FNPS"
Horsepower @ Three Phase - 240V AC:
5 hp
Media Temperature - Maximum:
257 Degrees F
Media Temperature - Minimum:
-33 Degrees F
Overall Height:
2.8 in
NEMA Enclosure Rating:
1
Operating Temperature - Maximum:
257 Degrees F
Differential Pressure - Maximum:
50 psi
Pressure - Minimum:
5 psi
Number of Pressure Connection Ports:
1
Actuator Style:
Diaphragm
Differential Pressure - Minimum:
30 psi
Manufacturer Warranty Length:
18 mo
Horsepower @ Three Phase - 480V AC:
1 hp
Pressure - Maximum:
80 psi
Package Quantity:
1
