Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 5 to 80 psi, Reverse Action - 9013GSG2J23R
Telemecanique SensorsLog in for pricing
(No reviews yet)
Write a Review
Telemecanique Sensors

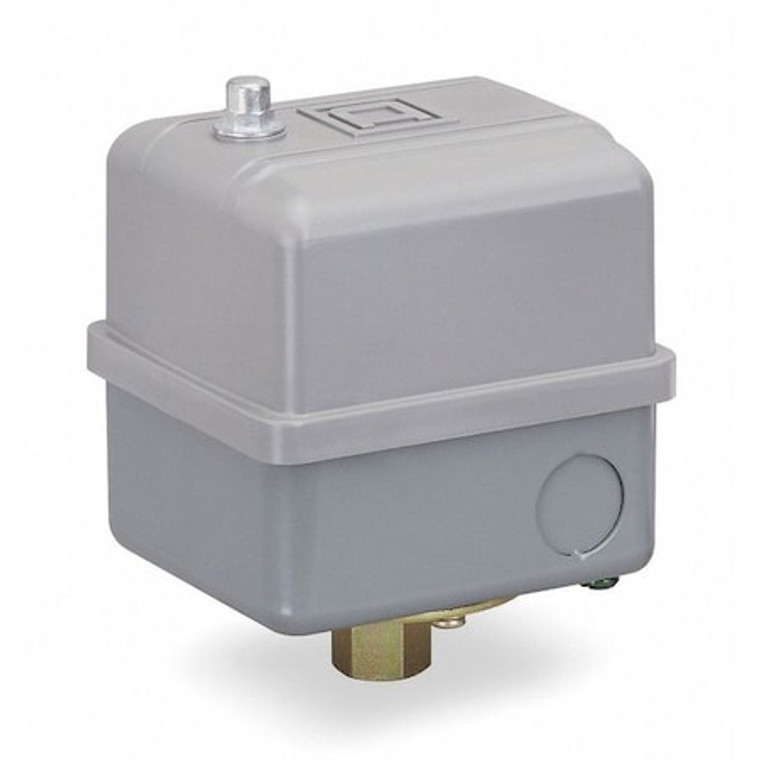

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 5 to 80 psi, Reverse Action - 9013GSG2J23R
Water and Air Pressure Switch, Air Compressor and Water Pump, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 40/20 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 5 to 80 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Reverse, NEMA Rating 1, Series 9013GS, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 5 hp
- Country of Origin:
- Mexico
- Item:
- Pressure Switch
- Pressure Switch Application:
- Air Compressor and Water Pump
- Manual Switch Action:
- None
- Pressure Switch Port Type:
- (1) Port, 1/4 in FNPS
- Pressure Switch Factory On/Off Setting:
- 40/20 psi
- Pressure Switch Unloader:
- No
- Pressure Switch Differential:
- 15 to 30 psi
- Pressure Switch Range:
- 5 to 80 psi
- Pressure Switch Electrical Contact Form:
- DPST
- Pressure Switch Action:
- Reverse
- Temp. Range:
- -22 Degrees to 257 Degrees F
- HP @ 3 Phase - 480V:
- 5 hp
- HP @ 1 Phase - 240V:
- 3 hp
- HP @ 3 Phase - 240V:
- 5 hp
- Special Features:
- Nitrile (Buna-N) Diaphragm
- AC Contact Rating:
- 10A @ 575V
- HP @ 1 Phase - 120V:
- 2 hp
- NEMA Rating:
- 1
- Series:
- 9013GSG
- Standards:
- ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
- Contact Form:
- 2NO
- Circuit Type:
- Power Circuit
- Electrical Connection:
- Screw-Clamp Terminals
- Actuation Type:
- Diaphragm
- Differential:
- Adjustable Differential Scale
- Unloader:
- No Unloader Included
- Burst Pressure:
- 300 psi
- HP @ 1 Phase - 230V:
- 3
- Features:
- Pumptrol
- IP Rating:
- IP20 (IEC 60529)
- Phase:
- Single/Three
- DC Contact Rating:
- 1 HP @ 115VDC, 1 HP @ 230VDC
- Material:
- Polypropylene Cover; Noryl Thermoplastic Resin Cover
- Type:
- Electromechanical Pressure Switch
- Product Type:
- Water and Air Pressure Switch
- Media Temperature - Maximum:
- 257 Degrees F
- Overall Depth:
- 3.88 in
- Pressure Switch Action Type:
- Reverse
- Pressure - Minimum:
- 5 psi
- Operating Temperature - Minimum:
- -33 Degrees F
- Pressure - Maximum:
- 80 psi
- Horsepower @ Three Phase - 480V AC:
- 5 hp
- Factory On Setting:
- 40 psi
- Differential Pressure - Minimum:
- 40 psi
- Switch Function Configuration:
- None
- Horsepower @ Single Phase - 120V AC:
- 2 hp
- Manufacturer Warranty Length:
- 18 mo
- Number of Pressure Connection Ports:
- 1
- Horsepower @ Three Phase - 240V AC:
- 5 hp
- Pressure Connection Type:
- 1/4 FNPS"
- Horsepower @ Single Phase - 240V AC:
- 3 hp
- Operating Temperature - Maximum:
- 257 Degrees F
- NEMA Enclosure Rating:
- 1
- Differential Pressure - Maximum:
- 40 psi
- Overall Height:
- 5.4 in
- Media Temperature - Minimum:
- -33 Degrees F
- Factory Off Setting:
- 20 psi
- Overall Width:
- 3.44 in
- Actuator Style:
- Diaphragm
- Package Quantity:
- 1
-
-
