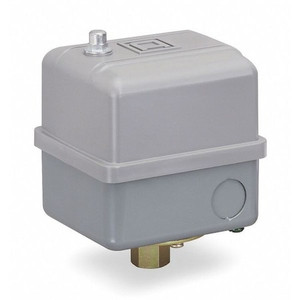

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 40 to 200 psi, Standard Action - 9013GHG2J57

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 40 to 200 psi, Standard Action - 9013GHG2J57

Telemecanique Sensors
SKU:
9013GHG2J57
|
UPC:
785901559672
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Water and Air Pressure Switch, Air Compressor and Water Pump, Manual Switch Action Auto/Off/On, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 120/150 psi, No Pressure Switch Unloader, Pressure Switch Differential 20 to 40 psi, Pressure Switch Range 40 to 200 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013GH, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 5 hp
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Application:
Air Compressor and Water Pump
Manual Switch Action:
Auto/Off/On
Pressure Switch Port Type:
(1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting:
120/150 psi
Pressure Switch Unloader:
No
Pressure Switch Differential:
20 to 40 psi
Pressure Switch Range:
40 to 200 psi
Pressure Switch Electrical Contact Form:
DPST
Pressure Switch Action:
Standard
Special Features:
Nitrile (Buna-N) Diaphragm
HP @ 1 Phase - 240V:
3 hp
HP @ 1 Phase - 120V:
2 hp
Standards:
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Series:
9013GHG
Temp. Range:
-22 Degrees to 257 Degrees F
AC Contact Rating:
10A @ 575V
HP @ 3 Phase - 240V:
5 hp
HP @ 3 Phase - 480V:
5 hp
NEMA Rating:
1
Burst Pressure:
300 psi
IP Rating:
IP20 (IEC 60529)
Contact Form:
2NC
Actuation Type:
Diaphragm
Differential:
Adjustable Differential Scale
Circuit Type:
Power Circuit
HP @ 1 Phase - 230V:
3
DC Contact Rating:
1 HP @ 115VDC, 1 HP @ 230VDC
Electrical Connection:
Screw-Clamp Terminals
Phase:
Single/Three
Unloader:
No Unloader Included
Material:
Polypropylene Cover; Noryl Thermoplastic Resin Cover
Type:
Electromechanical Pressure Switch
Product Type:
Water and Air Pressure Switch
Pressure - Minimum:
40 psi
Overall Width:
3.44 in
Overall Depth:
3.88 in
Operating Temperature - Minimum:
-33 Degrees F
Manufacturer Warranty Length:
18 mo
Horsepower @ Three Phase - 240V AC:
5 hp
Operating Temperature - Maximum:
257 Degrees F
Media Temperature - Minimum:
-33 Degrees F
Factory Off Setting:
150 psi
Number of Pressure Connection Ports:
1
NEMA Enclosure Rating:
1
Actuator Style:
Diaphragm
Horsepower @ Single Phase - 120V AC:
2 hp
Differential Pressure - Maximum:
150 psi
Pressure Switch Action Type:
Standard
Pressure Connection Type:
1/4 FNPS"
Factory On Setting:
120 psi
Differential Pressure - Minimum:
120 psi
Overall Height:
5.4 in
Media Temperature - Maximum:
257 Degrees F
Horsepower @ Single Phase - 240V AC:
3 hp
Pressure - Maximum:
200 psi
Horsepower @ Three Phase - 480V AC:
5 hp
Switch Function Configuration:
Auto/Off/On
Package Quantity:
1
