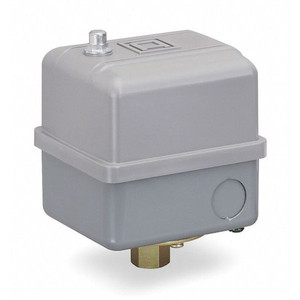

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 10 to 80 psi, Standard Action - 9013FSG52J25M4

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 10 to 80 psi, Standard Action - 9013FSG52J25M4

Telemecanique Sensors
SKU:
9013FSG52J25M4
|
UPC:
785901168676
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Water Pump Switch, Water Pump, Manual Switch Action Auto/Off/Start, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 60/80 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 10 to 80 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013FS, HP @ 1 Phase - 120V 1 1/2 hp, HP @ 1 Phase - 240V 2 hp, HP @ 3 Phase - 240V 3 hp, HP @ 3 Phase - 480V 1 hp
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Application:
Water Pump
Manual Switch Action:
Auto/Off/Start
Pressure Switch Port Type:
(1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting:
60/80 psi
Pressure Switch Unloader:
No
Pressure Switch Differential:
15 to 30 psi
Pressure Switch Range:
10 to 80 psi
Pressure Switch Electrical Contact Form:
DPST
Pressure Switch Action:
Standard
AC Contact Rating:
10A @ 575V
HP @ 3 Phase - 240V:
3 hp
HP @ 1 Phase - 240V:
2 hp
Standards:
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Series:
9013FSG
NEMA Rating:
1
Special Features:
Low Pressure Cut-Off
Temp. Range:
-22 Degrees to 257 Degrees F
HP @ 1 Phase - 120V:
1 1/2 hp
HP @ 3 Phase - 480V:
1 hp
Electrical Connection:
Screw-Clamp Terminals
IP Rating:
IP20 (IEC 60529)
Contact Form:
DPST-2NC
Burst Pressure:
220 psi
Differential:
Adjustable Differential Scale
DC Contact Rating:
1/4 HP @ 115VDC, 1/4 HP @ 230VDC
Features:
Pumptrol
HP @ 1 Phase - 230V:
2
Unloader:
No Unloader Included
Circuit Type:
Power Circuit
Actuation Type:
Diaphragm
Phase:
Single/Three
Material:
Polypropylene Cover; Noryl Thermoplastic Resin Cover
Type:
Electromechanical Pressure Switch
Product Type:
Water Pump Switch
Differential Pressure - Maximum:
80 psi
Pressure Connection Type:
1/4 FNPS"
Horsepower @ Single Phase - 120V AC:
1 1/2 hp
Horsepower @ Three Phase - 240V AC:
3 hp
Media Temperature - Minimum:
-22 Degrees F
Operating Temperature - Minimum:
-33 Degrees F
Factory Off Setting:
80 psi
Pressure Switch Action Type:
Standard
Overall Height:
3.71 in
Horsepower @ Single Phase - 240V AC:
2 hp
Overall Depth:
3.76 in
Number of Pressure Connection Ports:
1
Differential Pressure - Minimum:
60 psi
Pressure - Maximum:
80 psi
Pressure - Minimum:
5 psi
Media Temperature - Maximum:
257 Degrees F
Horsepower @ Three Phase - 480V AC:
1 hp
Operating Temperature - Maximum:
257 Degrees F
Factory On Setting:
60 psi
Overall Width:
3.1 in
Actuator Style:
Diaphragm
NEMA Enclosure Rating:
1
Switch Function Configuration:
Auto/Start/Off
Manufacturer Warranty Length:
18 mo
Package Quantity:
1
