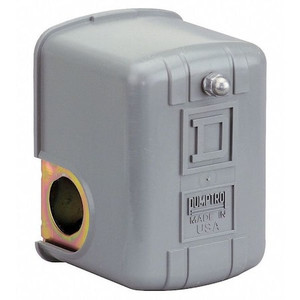

Pressure Switch, (1) Port, 1/4 in FNPS, DPST, 5 to 80 psi, Standard Action - 9013FYG2J33M4
Manufacturer: Telemecanique Sensors
MFR # 9013FYG2J33M4
Log in for pricing
Pressure Switch, (1) Port, 1/4 in FNPS, 2 NC, DPST-DB, Form YY, 5 to 80 psi, Standard Action - 9013GSR2J20
Telemecanique SensorsLog in for pricing
(No reviews yet)
Write a Review
Telemecanique Sensors
Pressure Switch, (1) Port, 1/4 in FNPS, 2 NC, DPST-DB, Form YY, 5 to 80 psi, Standard Action - 9013GSR2J20
Water and Air Pressure Switch, Air Compressor and Water Pump, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 20/40 psi, No Pressure Switch Unloader, Pressure Switch Differential 20 to 40 psi, Pressure Switch Range 5 to 80 psi, Pressure Switch Action Standard, NEMA Rating 7, 9, Series 9013GS, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 5 hp, Temp. Range -22 Degrees to 158 Degrees F
- Country of Origin:
- Mexico
- Item:
- Pressure Switch
- Pressure Switch Application:
- Air Compressor and Water Pump
- Manual Switch Action:
- None
- Pressure Switch Port Type:
- (1) Port, 1/4 in FNPS
- Pressure Switch Factory On/Off Setting:
- 20/40 psi
- Pressure Switch Unloader:
- No
- Pressure Switch Differential:
- 20 to 40 psi
- Pressure Switch Range:
- 5 to 80 psi
- Pressure Switch Electrical Contact Form:
- 2 NC, DPST-DB, Form YY
- Pressure Switch Action:
- Standard
- Temp. Range:
- -22 Degrees to 158 Degrees F
- HP @ 3 Phase - 480V:
- 5 hp
- NEMA Rating:
- 7, 9
- HP @ 1 Phase - 240V:
- 3 hp
- Special Features:
- For Hazardous Location Usage, Nitrile (Buna-N) Diaphragm
- Standards:
- ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
- AC Contact Rating:
- 10A @ 575V
- Series:
- 9013GSR
- HP @ 1 Phase - 120V:
- 2 hp
- HP @ 3 Phase - 240V:
- 5 hp
- DC Contact Rating:
- 1 HP @ 115VDC, 1 HP @ 230VDC
- Actuation Type:
- Diaphragm
- HP @ 1 Phase - 230V:
- 3
- Electrical Connection:
- Screw-Clamp Terminals
- Contact Form:
- 2NC
- Differential:
- Adjustable Differential Scale
- Burst Pressure:
- 100 psi
- Circuit Type:
- Power Circuit
- IP Rating:
- IP20 (IEC 60529)
- Unloader:
- No Unloader Included
- Phase:
- Single/Three
- Features:
- Pumptrol
- Material:
- Cast Aluminium Enclosure
- Type:
- Electromechanical Pressure Switch
- Product Type:
- Water and Air Pressure Switch
- Overall Height:
- 8.46 in
- Horsepower @ Three Phase - 240V AC:
- 5 hp
- Horsepower @ Single Phase - 240V AC:
- 3 hp
- Factory Off Setting:
- 40 psi
- Pressure Switch Action Type:
- Standard
- Differential Pressure - Maximum:
- 40 psi
- Horsepower @ Single Phase - 120V AC:
- 2 hp
- Overall Depth:
- 5.38 in
- Pressure Connection Type:
- 1/4 FNPS"
- Media Temperature - Minimum:
- -27 Degrees F
- Pressure - Maximum:
- 80 psi
- Operating Temperature - Minimum:
- -27 Degrees F
- Manufacturer Warranty Length:
- 18 mo
- Actuator Style:
- Diaphragm
- NEMA Enclosure Rating:
- 7
- Number of Pressure Connection Ports:
- 1
- Operating Temperature - Maximum:
- 495 Degrees F
- Overall Width:
- 7.13 in
- Differential Pressure - Minimum:
- 20 psi
- Media Temperature - Maximum:
- 495 Degrees F
- Horsepower @ Three Phase - 480V AC:
- 5 hp
- Switch Function Configuration:
- None
- Factory On Setting:
- 20 psi
- Pressure - Minimum:
- 5 psi
- Package Quantity:
- 1
-
-
