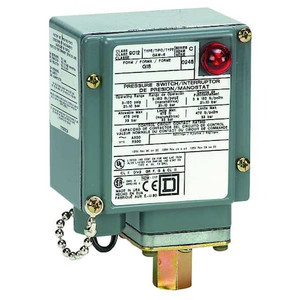

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 90 to 2900 psi, Standard Action - 9012GCW2

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 90 to 2900 psi, Standard Action - 9012GCW2

Telemecanique Sensors
SKU:
9012GCW2
|
UPC:
785901024873
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Switch, Differential 170 to 560 psi, Range 90 to 2900 psi, Port Type 1-Port 1/4-18 in FNPT, Contact Form 1NO/1NC, NEMA Rating 13, 4, 4X, Actuation Type Piston, Action Standard, Series 9012G, AC Contact Rating 3 A @ 240 V, DC Contact Rating 0.22 A @ 125 V, 0.27 A @ 240 V
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Port Type:
(1) Port, 1/4-18 in FNPT
Pressure Switch Differential:
170 to 560 psi
Pressure Switch Range:
90 to 2900 psi
Pressure Switch Electrical Contact Form:
SPDT
Pressure Switch Action:
Standard
NEMA Rating:
13, 4, 4X
Differential:
170 to 560 psi
Actuation Type:
Piston
AC Contact Rating:
10A @ 480V
Range:
90 to 2900 psi
DC Contact Rating:
0.11A @ 250V, 0.22A @ 125V
Action:
Standard
Port Type:
1-Port 1/4-18 in FNPT
Contact Form:
SPDT
Series:
9012G
Housing Material:
Die cast aluminium alloy
Electrical Connection:
Screw-Clamp Terminals
Circuit Type:
Control Circuit
Special Features:
Mercury Free; Green Premium product
Standards:
CE, CSA C22.2, RoHS, UL 508
Temp. Range:
-10 to 185 °F
IP Rating:
54
Max. Pressure:
15000 psi
Type:
Electromechanical Pressure Switch
Operating Temperature - Minimum:
-10 Degrees F
Pressure Connection Type:
1/4-18 FNPT"
Differential Pressure - Minimum:
170 psi
Pressure - Maximum:
2,900 psi
Operating Temperature - Maximum:
185 Degrees F
Overall Depth:
2.63 in
NEMA Enclosure Rating:
13, 4, 4X
Overall Width:
3.5 in
Manufacturer Warranty Length:
18 mo
Media Temperature - Maximum:
250 Degrees F
Proof Pressure:
15,000 psi
Number of Pressure Connection Ports:
1
Media Temperature - Minimum:
-15 Degrees F
Deadband Adjustability:
Adjustable
Pressure - Minimum:
90 psi
Differential Pressure - Maximum:
560 psi
Overall Height:
6.37 in
Package Quantity:
1
