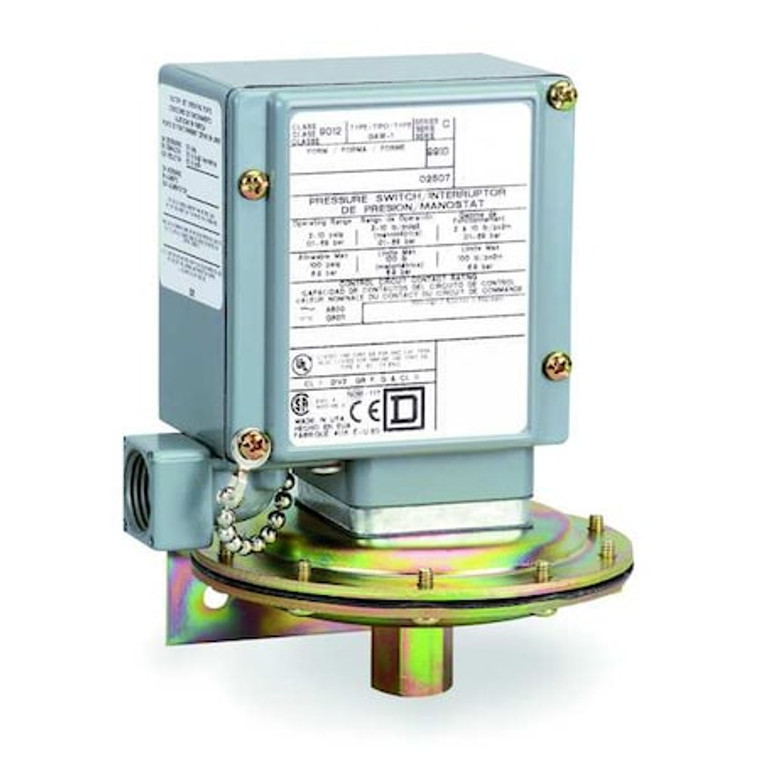

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 3 to 150 psi, Standard Action - 9012GDW5

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 3 to 150 psi, Standard Action - 9012GDW5

Telemecanique Sensors
SKU:
9012GDW5
|
UPC:
785901025016
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Switch, Differential 6 to 0.8 psi, Range 3 to 150 psi, Port Type 1-Port 1/4-18 in FNPT, Contact Form 1NO/1NC, NEMA Rating 13, 4, 4X, Actuation Type Diaphragm, Action Standard, Series 9012G, AC Contact Rating 3 A @ 240 V, 6 A @ 120 V, DC Contact Rating 0.22 A @ 125 V, 0.27 A @ 250 V
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Port Type:
(1) Port, 1/4-18 in FNPT
Pressure Switch Differential:
6 to 0.8 psi
Pressure Switch Range:
3 to 150 psi
Pressure Switch Electrical Contact Form:
SPDT
Pressure Switch Action:
Standard
Series:
9012G
Port Type:
1-Port 1/4-18 in FNPT
Range:
3 to 150 psi
DC Contact Rating:
0.11A @ 250V, 0.22A @ 125V
Differential:
6 to 0.8 psi
Contact Form:
SPDT
Action:
Standard
Actuation Type:
Diaphragm
NEMA Rating:
13, 4, 4X
AC Contact Rating:
10A @ 480V
IP Rating:
54
Standards:
CE, CSA C22.2, RoHS, UL 508
Electrical Connection:
Screw-Clamp Terminals
Temp. Range:
-10 to 185 °F
Circuit Type:
Control Circuit
Max. Pressure:
475 psi
Special Features:
Mercury Free; Green Premium product
Housing Material:
Die cast aluminium alloy
Type:
Electromechanical Pressure Switch
Differential Pressure - Maximum:
6 psi
Manufacturer Warranty Length:
18 mo
Pressure - Minimum:
3 psi
Media Temperature - Minimum:
-40 Degrees F
Media Temperature - Maximum:
250 Degrees F
Pressure - Maximum:
150 psi
Proof Pressure:
475 psi
Differential Pressure - Minimum:
0.8 psi
Operating Temperature - Minimum:
-10 Degrees F
Overall Depth:
2.63 in
Pressure Connection Type:
1/4-18 FNPT"
Number of Pressure Connection Ports:
1
Deadband Adjustability:
Fixed
Overall Width:
3.5 in
NEMA Enclosure Rating:
13, 4, 4X
Operating Temperature - Maximum:
185 Degrees F
Overall Height:
5.55 in
Package Quantity:
1
