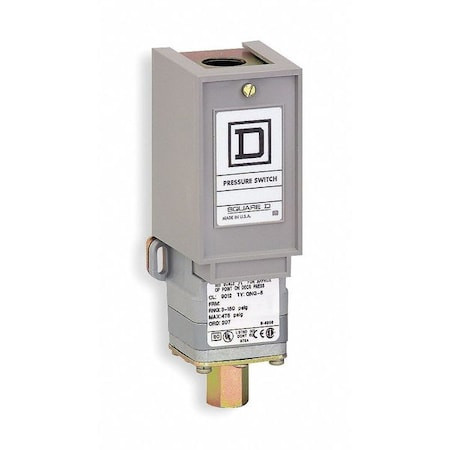

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 1 to 40 psi, Standard Action - 9012GNG3

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 1 to 40 psi, Standard Action - 9012GNG3

Telemecanique Sensors
SKU:
9012GNG3
|
UPC:
785901476429
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Switch, Differential 1.2 to 3.6 psi, Range 1 to 40 psi, Port Type 1-Port 1/4-18 in FNPT, Contact Form 1NO/1NC, NEMA Rating 1, Actuation Type Diaphragm, Action Standard, Series 9012G, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -40 Degrees to 250 Degrees F, AC Contact Rating 3 A @ 240 V, 6 A @ 120 V, DC Contact Rating 0.22 A @ 125 V, 0.27 A @ 250 V
Additional Information
Country of Origin:
Mexico
Item:
Pressure Switch
Pressure Switch Port Type:
(1) Port, 1/4-18 in FNPT
Pressure Switch Differential:
1.2 to 3.6 psi
Pressure Switch Range:
1 to 40 psi
Pressure Switch Electrical Contact Form:
SPDT
Pressure Switch Action:
Standard
Contact Form:
SPDT
Actuation Type:
Diaphragm
Series:
9012G
NEMA Rating:
1
Action:
Standard
Media Temp. Range:
-40 Degrees to 250 Degrees F
Ambient Temp. Range:
-10 Degrees to 185 Degrees F
DC Contact Rating:
0.11A @ 250V, 0.22A @ 125V
Port Type:
1-Port 1/4-18 in FNPT
AC Contact Rating:
10A @ 480V
Differential:
1.2 to 3.6 psi
Range:
1 to 40 psi
Standards:
CE, RoHS, UL 508
Temp. Range:
-10 to 185 °F
Special Features:
Mercury Free; Green Premium product
IP Rating:
54
Circuit Type:
Control Circuit
Max. Pressure:
100 psi
Housing Material:
Thermoplastic
Electrical Connection:
Screw-Clamp Terminals
Type:
Electromechanical Pressure Switch
Number of Pressure Connection Ports:
1
Deadband Adjustability:
Adjustable
Pressure - Minimum:
1 psi
Media Temperature - Minimum:
-40 Degrees F
Operating Temperature - Minimum:
-10 Degrees F
Overall Depth:
2.75 in
Overall Height:
6.94 in
Media Temperature - Maximum:
250 Degrees F
Overall Width:
2.21 in
Pressure - Maximum:
40 psi
NEMA Enclosure Rating:
1
Proof Pressure:
100 psi
Differential Pressure - Minimum:
1.2 psi
Pressure Connection Type:
1/4-18 FNPT"
Differential Pressure - Maximum:
6 psi
Manufacturer Warranty Length:
18 mo
Operating Temperature - Maximum:
185 Degrees F
Package Quantity:
1
