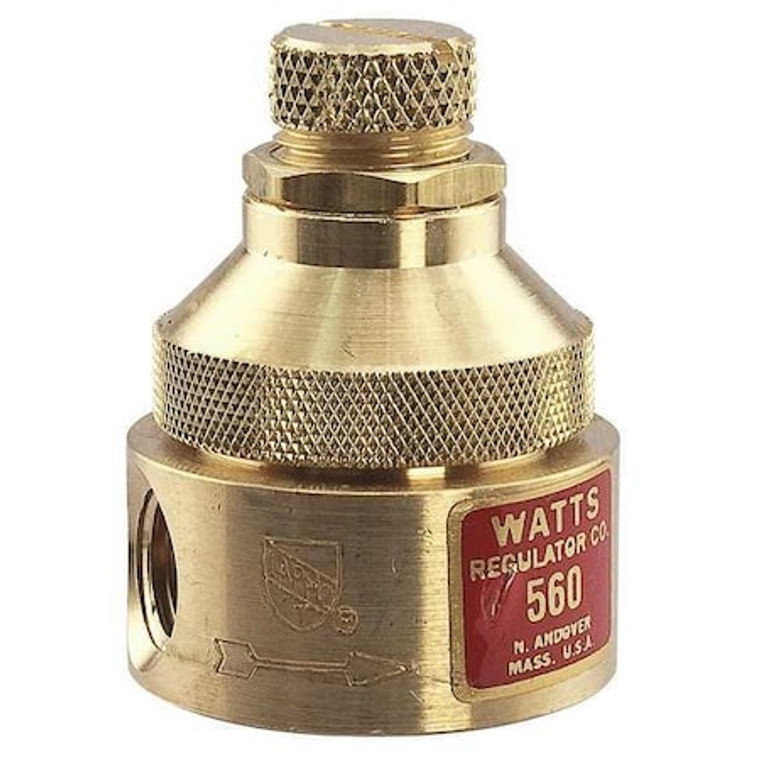

Pressure Regulator, 1/4 In, 0 to 125 psi - 1/4 LF560 0-125

Pressure Regulator, 1/4 In, 0 to 125 psi - 1/4 LF560 0-125

Watts
SKU:
1/4 LF560 0-125
|
UPC:
98268794243
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Regulator, Series 560, Body Material Brass, Inlet Size 1/4 in, Outlet Size 1/4 in, Length 1 1/2 in, Height 2 in, Application Industrial Use, Connection Type FNPT, Pressure Adjustment Range 0 to 125 psi, Gauge Port Size 1/8 in, Seal Material Buna-N, Max. Temp. 140 Degrees F, Pipe Size 1/4 in, Max. Pressure 300 psi
Additional Information
Country of Origin:
United States
Item:
Pressure Regulator
Series:
560
Body Material:
Brass
Inlet Size:
1/4 in
Outlet Size:
1/4 in
Length:
1 1/2 in
Height:
2 in
Standards:
IAPMO
Pressure Adjustment Range:
0 to 125 psi
Max. Pressure:
300 psi
Connection Type:
FNPT x FNPT
Max. Temp.:
140 Degrees F
Gauge Port Size:
1/8 in
Seal Material:
Buna-N
Application:
Industrial Use
Pipe Size:
1/4 in
Overall Width:
1 1/2 in
Outlet Connection Type:
NPT
Operating Temperature - Minimum:
33 Degrees F
NSF Certifications for Food and Drinking Water:
NSF 372
Overall Height:
2 in
Operating Temperature - Maximum:
140 Degrees F
For Media:
Water
Operating Pressure - Maximum:
300 psi
Pilot Adjustment - Minimum:
0 psi
Pilot Adjustment - Maximum:
125 psi
Outlet Connection Gender:
Female
Inlet Connection Gender:
Female
Inlet Connection Size:
1/4 in
Operating Pressure Differential - Maximum:
Not Applicable
Operating Pressure Differential - Minimum:
Not Applicable
Inlet Connection Type:
NPT
Outlet Connection Size:
1/4 in
Operating Pressure - Minimum:
Not Applicable
Package Quantity:
1
