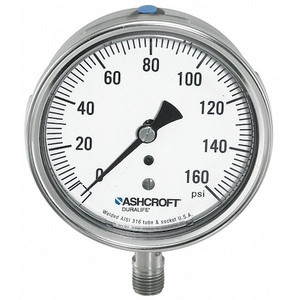

Pressure Gauge, 0 to 160 psi, 1/4 in MNPT, Stainless Steel, Silver - 351009SWL02L160#

Pressure Gauge, 0 to 160 psi, 1/4 in MNPT, Stainless Steel, Silver - 351009SWL02L160#

Ashcroft
SKU:
351009SWL02L160#
|
UPC:
759426944879
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Industrial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-1.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance Liquid-Filled
Additional Information
Country of Origin:
United States
Connection Location:
Lower
Item:
Industrial Pressure Gauge
Connection Size:
1/4 in NPT
Gauge Application:
Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions
Range:
0 to 160 psi
Accuracy:
+/-1.5%
Material:
304 Stainless steel
Color:
Silver
Application:
Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications
Diameter:
3.89";Dial Size (In.)=3-1/2"
Gauge Primary Range Values:
0 to 160
Gauge Primary Range Units:
psi
Gauge Connection Type:
MNPT
Gauge Connection Size:
1/4 in
Basic Gauge Case Material:
Stainless Steel
Case Color:
Metallic
Basic Gauge Sensor Material:
Stainless Steel
Gauge Sensor Material:
316 Stainless Steel
Gauge Nominal Dial Size:
3 1/2 in
Basic Gauge Socket Material:
Stainless Steel
Series:
1009
Gauge Filled With:
Glycerin
Gauge Lens Material:
Polycarbonate
Gauge Socket Material:
316 Stainless Steel
Manufacturers Warranty Length:
5 yr
Calibration Certificate Included:
No
Basic Gauge Lens Material:
Plastic
Gauge Panel Mountable:
No
Gauge Primary Range Numbered Graduations:
20
Max. Pressure (PSI):
160
Gauge Special Options:
PowerFlex(TM) Movement
Gauge Case Material:
304 Stainless Steel
Liquid Filled:
Yes
Smallest Graduation:
5 psi
Pressure and Vacuum Gauge Type:
Pressure Gauge
Gauge Connection Location:
Bottom
Graduations:
20 psi
Gauge Primary Range Smallest Graduation:
5
Operating Temp. Range:
-20 Degrees to 150 Degrees F
Basic Gauge Wetted Parts:
Stainless Steel
Gauge Accuracy:
+/-1.50%
Gauge Case Color:
Stainless Steel
Socket Material:
316L Stainless Steel
Standards:
CRN, RoHS
Field Fillable:
No
Liquid-Filled Case:
Yes
Freeze Resistant Movement:
No
Includes Mounting Hardware:
No
Dry Dampening Feature:
None
Dial Color:
White
Blowout Safety Back:
No
Compatible Process Media:
Deionized Water
Manufacturer Warranty Length:
5 yr
Pointer Material:
Aluminum
Sensor Type:
Bourdon Tube
Primary Pressure Scale Color:
Black
Dial Face Material:
Aluminum
Process Connection Location:
Bottom
Includes Calibration Certificate:
No
Process Connection Type:
NPT
Bezel Material:
304 Stainless Steel
Primary Scale Units:
psi
Primary Scale Minor Graduations:
5
Case Diameter:
3.89 in
Burst Pressure:
1,400 psi
Hazardous Location Rating:
Not Rated
Case Construction:
Welded Joint
Bezel Mounting Type:
Bayonet
Panel-Mountable:
No
Pointer Color:
Black
Cleaned for Oxygen Service:
No
Process Connection Gender:
Male
Sensor Material:
316L Stainless Steel
Ambient Operating Temperature Range:
20 Degrees to 150 Degrees F (-7 Degrees to 66 Degrees C)
Pressure Range Type:
Pressure
Primary Scale Numeric Increments:
20
Case Depth:
1.25 in
Pressure Gauge Type:
Industrial Pressure Gauge
Vibration Resistance:
Liquid-Filled
Nominal Dial Size:
3 1/2 in
Non-Sparking:
No
Process Connection Size:
1/4 in
Movement Material:
304 Stainless Steel
Removable Bezel:
Yes
Primary Pressure Range:
0 to 160
Accuracy Scale:
Full Scale
Lens Material:
Polycarbonate
IP/NEMA Rating:
IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Includes Vent Plug:
Yes
Accuracy Grade:
ASME B40.100 Grade 1A
Process Temperature Range:
20 Degrees to 200 Degrees F
Gauge Case Liquid:
Glycerin
Scale Type:
Single
Package Quantity:
1

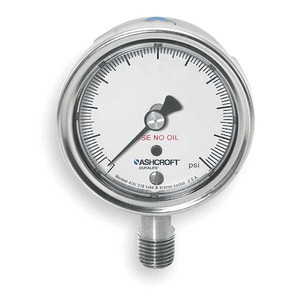

Related Products
