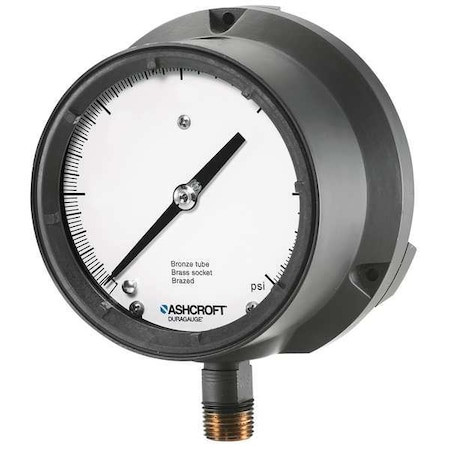

Pressure Gauge, 0 to 1000 psi, 1/2 in MNPT, Plastic, Black - 451379SSL04L1000#

Pressure Gauge, 0 to 1000 psi, 1/2 in MNPT, Plastic, Black - 451379SSL04L1000#

Ashcroft
SKU:
451379SSL04L1000#
|
UPC:
723259820426
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP66, NEMA 4X, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Process Pressure Gauge
Additional Information
Country of Origin:
United States
Item:
Process Pressure Gauge
Connection Location:
Lower
Connection Size:
1/2 in NPT
For Use With:
Media Compatible with Bronze
Gauge Application:
Process
Range:
0 to 1000 psi
Accuracy:
+/-0.5%
Material:
Phenolic/Thermoplastic
Color:
Black
Application:
Chemical Industries, Refrigeration, Mining, Oil and Gas Industry, Power Industries, Turbines and Compressors, Water Purification or Irrigation, Water Pressure Testing
Diameter:
5-13/16";Dial Size (In.)=4-1/2"
Gauge Primary Range Values:
0 to 1000
Gauge Primary Range Units:
psi
Gauge Connection Type:
MNPT
Gauge Connection Size:
1/2 in
Basic Gauge Case Material:
Plastic
Case Color:
Black
Pressure and Vacuum Gauge Type:
Pressure Gauge
Gauge Mounting Method:
Surface
Gauge Case Color:
Black
Operating Temp. Range:
0 Degrees to 150 Degrees F
Gauge Panel Mountable:
Yes
Gauge Nominal Dial Size:
4 1/2 in
Gauge Primary Range Smallest Graduation:
100
Gauge Lens Material:
Acrylic
Smallest Graduation:
100 psi
Gauge Filled With:
Glycerin
Graduations:
100 psi
Liquid Filled:
Yes
Calibration Certificate Included:
No
Basic Gauge Socket Material:
Stainless Steel
Gauge Case Material:
Aluminum
Gauge Connection Location:
Bottom
Basic Gauge Sensor Material:
Stainless Steel
Basic Gauge Lens Material:
Plastic
Gauge Socket Material:
316 Stainless Steel
Max. Pressure (PSI):
1000
Gauge Accuracy:
+/-0.50%
Series:
1379
Basic Gauge Wetted Parts:
Stainless Steel
Gauge Sensor Material:
316L Stainless Steel
Socket Material:
316L Stainless Steel
Standards:
ASME, CRN
Scale Type:
Single
Manufacturer Warranty Length:
10 yr
Process Connection Location:
Bottom
Nominal Dial Size:
4 1/2 in
Field Fillable:
Yes
Lens Material:
Glass
Compatible Process Media:
Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater
Primary Pressure Scale Color:
Black
Bolt Circle Diameter:
5.375 in
Primary Pressure Range:
0 to 1,000
Process Connection Gender:
Male
Gauge Case Liquid:
Glycerin
Movement Material:
400 Stainless Steel
Primary Scale Minor Graduations:
100
Panel-Mountable:
No
Includes Calibration Certificate:
No
Pressure Gauge Type:
Process Pressure Gauge
IP/NEMA Rating:
IP66, NEMA 4X
Bezel Material:
Polypropylene
Accuracy Scale:
Full Scale
Freeze Resistant Movement:
No
Ambient Operating Temperature Range:
20 Degrees to 150 Degrees F (-7 Degrees to 66 Degrees C)
Includes Mounting Hardware:
No
Liquid-Filled Case:
Yes
Case Diameter:
5.812 in
Vibration Resistance:
Liquid-Filled
Burst Pressure:
16,000 psi
Sensor Type:
Bourdon Tube
Case Finish:
Epoxy Coated
Includes Vent Plug:
No
Case Construction:
Solid Front with Pressure Relief Back
Panel Mount Characteristics:
3 0.218 Dia Holes on 5 3/8 Dia Bolt Circle
Case Depth:
3.375 in
Blowout Safety Back:
Yes
Process Connection Size:
1/2 in
Pointer Color:
Black
Pointer Characteristics:
Micrometer Adjustable
Cleaned for Oxygen Service:
No
Primary Scale Units:
psi
Pressure Range Type:
Pressure
Movement Type:
Rotary
Hazardous Location Rating:
Not Rated
Dry Dampening Feature:
None
Sensor Material:
316L Stainless Steel
Dial Color:
White
Non-Sparking:
No
Pointer Material:
Aluminum
Removable Bezel:
No
Process Connection Type:
NPT
Process Temperature Range:
20 Degrees to 150 Degrees F
Accuracy Grade:
ASME B40.100 Grade 2A
Dial Face Material:
Aluminum
Package Quantity:
1
