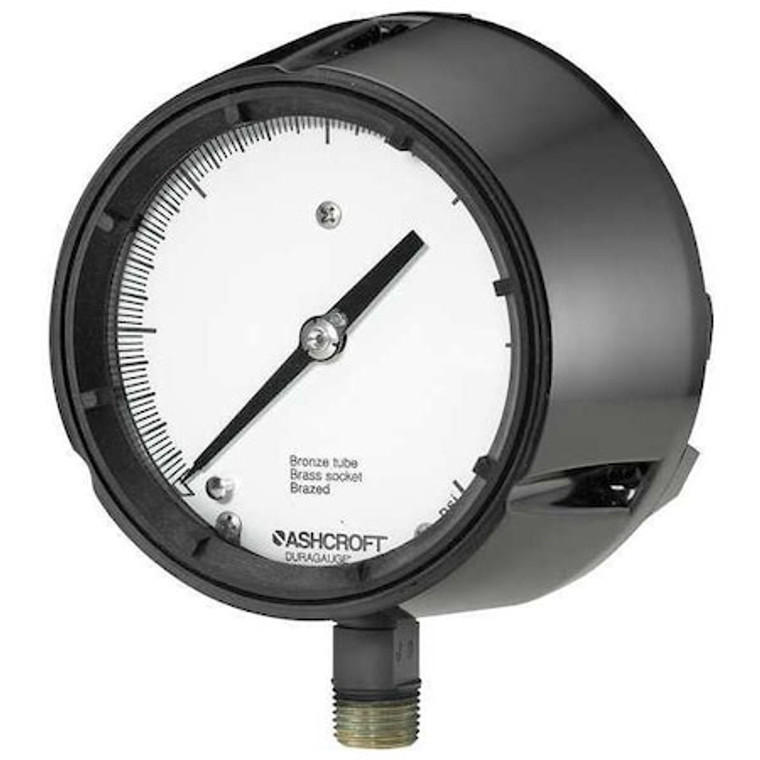

Pressure Gauge, 0 to 1000 psi, 1/2 in MNPT, Plastic, Black - 451279AS04L1000#

Pressure Gauge, 0 to 1000 psi, 1/2 in MNPT, Plastic, Black - 451279AS04L1000#

Ashcroft
SKU:
451279AS04L1000#
|
UPC:
723259664747
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Phenolic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge
Additional Information
Country of Origin:
United States
Item:
Process Pressure Gauge
Connection Location:
Lower
Connection Size:
1/2 in NPT
For Use With:
Media Compatible with Bronze
Gauge Application:
Process
Range:
0 to 1000 psi
Accuracy:
+/-0.5%
Material:
Phenolic
Color:
Black
Application:
Chemical Industries, Refrigeration, Mining, Oil and Gas Industry, Power Industries, Turbines and Compressors, Water Purification or Irrigation, Water Pressure Testing
Diameter:
5.81";Dial Size (In.)=4-1/2"
Gauge Primary Range Values:
0 to 1000
Gauge Primary Range Units:
psi
Gauge Connection Type:
MNPT
Gauge Connection Size:
1/2 in
Basic Gauge Case Material:
Plastic
Case Color:
Black
Max. Pressure (PSI):
1000
Basic Gauge Lens Material:
Glass
Gauge Mounting Method:
Surface
Liquid Filled:
No
Graduations:
100 psi
Gauge Case Material:
Phenolic
Gauge Nominal Dial Size:
4 1/2 in
Gauge Primary Range Smallest Graduation:
100
Smallest Graduation:
100 psi
Basic Gauge Socket Material:
Brass
Pressure and Vacuum Gauge Type:
Pressure Gauge
Operating Temp. Range:
-50 Degrees to 150 Degrees F
Gauge Sensor Material:
Phosphor Bronze
Gauge Connection Location:
Bottom
Gauge Case Color:
Black
Gauge Panel Mountable:
Yes
Series:
1279
Gauge Special Options:
PLUS!(TM) Performance
Basic Gauge Wetted Parts:
Brass / Bronze
Basic Gauge Sensor Material:
Bronze
Gauge Lens Material:
Glass
Calibration Certificate Included:
No
Gauge Socket Material:
Brass
Gauge Accuracy:
+/-0.50%
Socket Material:
Brass
Standards:
ASME, CRN, UL 94-V-0
Bezel Material:
Polycarbonate
Dry Dampening Feature:
None
Liquid-Filled Case:
No
Field Fillable:
No
Process Temperature Range:
-20 Degrees to 250 Degrees F
Primary Pressure Range:
0 to 1,000
Includes Calibration Certificate:
No
Sensor Material:
Bronze
Primary Pressure Scale Color:
Black
Case Depth:
3.36 in
Blowout Safety Back:
Yes
Movement Material:
400 Stainless Steel
Ambient Operating Temperature Range:
-20 Degrees to 200 Degrees F (-29 Degrees to 93 Degrees C)
Case Diameter:
5.81 in
Pointer Material:
Aluminum
Manufacturer Warranty Length:
10 yr
Panel Mount Characteristics:
3 0.218 Dia Holes on 5 3/8 Dia Bolt Circle
Non-Sparking:
No
Freeze Resistant Movement:
No
Includes Mounting Hardware:
No
Pressure Range Type:
Pressure
Sensor Type:
Bourdon Tube
Includes Vent Plug:
No
Accuracy Scale:
Full Scale
Compatible Process Media:
Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater
Pressure Gauge Type:
Process Pressure Gauge
Vibration Resistance:
None
Nominal Dial Size:
4 1/2 in
IP/NEMA Rating:
Not Rated
Primary Scale Minor Graduations:
100
Process Connection Size:
1/2 in
Process Connection Gender:
Male
Panel-Mountable:
No
Process Connection Location:
Bottom
Movement Type:
Rotary
Bezel Mounting Type:
Threaded
Dial Face Material:
Aluminum
Lens Material:
Glass
Hazardous Location Rating:
Not Rated
Process Connection Type:
NPT
Dial Color:
White
Gauge Case Liquid:
None
Cleaned for Oxygen Service:
No
Burst Pressure:
16,000 psi
Removable Bezel:
Yes
Case Construction:
Solid Front with Pressure Relief Back
Pointer Characteristics:
Micrometer Adjustable
Bolt Circle Diameter:
5.375 in
Primary Scale Units:
psi
Scale Type:
Single
Accuracy Grade:
ASME B40.100 Grade 2A
Package Quantity:
1
