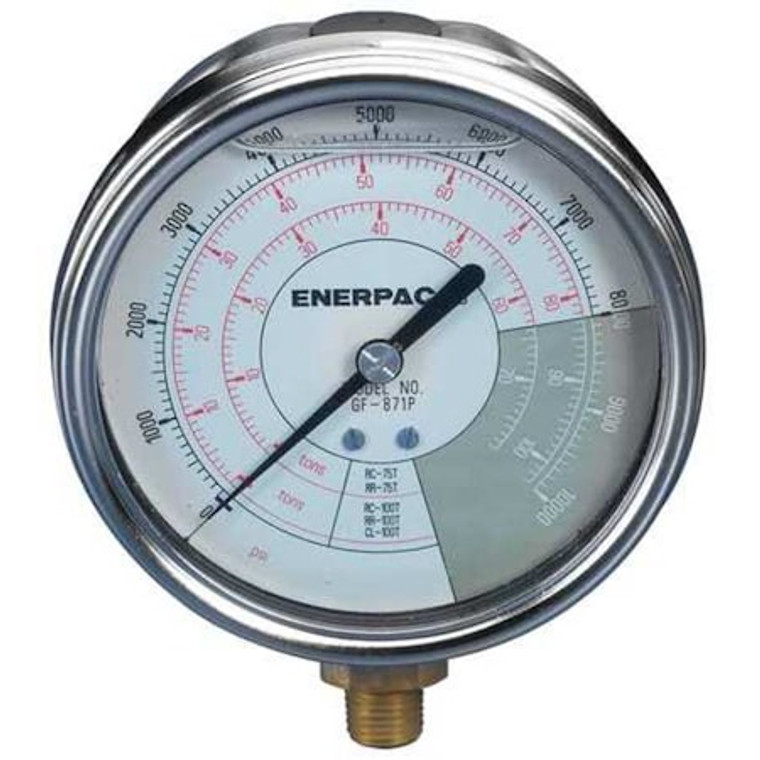

Pressure Gauge, 0 to 10,000 psi, 1/2 in NPTF, Aluminum, Silver - GF5P

Pressure Gauge, 0 to 10,000 psi, 1/2 in NPTF, Aluminum, Silver - GF5P

Enerpac
SKU:
GF5P
|
UPC:
662005121335
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pressure Gauge, Dial Size 4 In., Range 0 to 10,000 psi, Connection Size 1/2 In. NPTF, Connection Location Lower, Smallest Graduation 100 psi, Accuracy +/-1 Percent, Case Material 304 Stainless Steel, Case Color Silver, Socket Material Copper Alloy, Tube Material Copper Alloy, Filled With Glycerine, Lens Material Safety Glass, Ring Material Polished Stainless Steel, Operating Temp. Range -4 Degrees F to 140 Degrees F, Required Gauge Adapter GA2, For Use With RC-5, Series GF
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Hydraulic Cylinder Pressure Gauge
Connection Location:
Lower
Connection Size:
1/2 in FNPT
For Use With:
RC-5
Gauge Application:
General Purpose
Range:
0 to 10,000 psi
Accuracy:
+/-1.00%
Material:
Stainless Steel
Color:
Silver
Application:
Hydraulics
Diameter:
4";Dial Size (In.)=4"
Max Pressure (PSI):
10000
Gauge Primary Range Values:
0 to 10,000
Gauge Primary Range Units:
psi
Gauge Connection Type:
NPTF
Gauge Connection Size:
1/2 in
Basic Gauge Case Material:
Aluminum
Case Color:
Metallic
Required Gauge Adapter:
Enerpac GA-2
Gauge Case Material:
Stainless Steel
Gauge Filled With:
Glycerin
Liquid Filled:
Yes
Basic Gauge Wetted Parts:
Copper
Gauge Nominal Dial Size:
4 in
Operating Temp. Range:
-4 Degrees to 140 Degrees F
Basic Gauge Socket Material:
Copper
Max. Pressure (PSI):
10000
Basic Gauge Sensor Material:
Copper
Series:
GF
Pressure and Vacuum Gauge Type:
Pressure Gauge
Smallest Graduation:
100 psi
Gauge Panel Mountable:
No
Gauge Connection Location:
Bottom
Gauge Lens Material:
Glass
Gauge Case Color:
Stainless Steel
Gauge Primary Range Smallest Graduation:
100
Gauge Sensor Material:
Copper Alloy
Gauge Accuracy:
+/-1.00%
Gauge Socket Material:
Copper Alloy
Calibration Certificate Included:
No
Basic Gauge Lens Material:
Glass
Socket Material:
Copper Alloy
Gauge Mounting Method:
Lower Mount
Compatible With:
All 5 ton RC, RSM Cylinders
Ambient Operating Temperature Range:
-4 Degrees to 140 Degrees F
Compatible Manufacturer Model Number:
V-10, V-91
Hazardous Location Rating:
Not Rated
Freeze Resistant Movement:
No
Compatible Gauge Adapter:
Enerpac GA-1, Enerpac GA-2
Pressure Range Type:
Pressure
Scale Type:
Single
Case Construction:
Corrosion Resistant
Accuracy Scale:
Full Scale
Adjustable Pointer:
No
Compatible Brand and Series:
ENERPAC V-10, ENERPAC V-91
Gauge Case Liquid:
Glycerin
Primary Pressure Range:
0 to 10,000 psi
Primary Scale Units:
psi
Compatible Cylinder/Press:
All 5 ton RC, RSM Cylinders
Requires Adapter:
Yes
Field Fillable:
No
Primary Scale Minor Graduations:
100
Liquid-Filled Case:
Yes
Secondary Scale Minor Graduations:
0.1, 100
Vibration Resistance:
Liquid-Filled
Secondary Scale Units:
lbs, ton
Blowout Safety Back:
No
Panel-Mountable:
No
Process Connection Type:
NPTF
Pressure Gauge Type:
Hydraulic Cylinder Pressure Gauge
Includes Vent Plug:
No
Dial Color:
White
Nominal Dial Size:
4 in
Case Depth:
2 in
Process Connection Size:
1/2 in
Process Connection Gender:
Male
Includes Mounting Hardware:
No
Removable Bezel:
No
Sensor Material:
Copper Alloy
Case Diameter:
4.3 in
Process Connection Location:
Bottom
Lens Material:
Safety Glass
IP/NEMA Rating:
Not Rated
Scale:
Imperial
Force:
0 to 5 tons
Cylinder Series Compatibility:
RC, RSM
Package Quantity:
1
