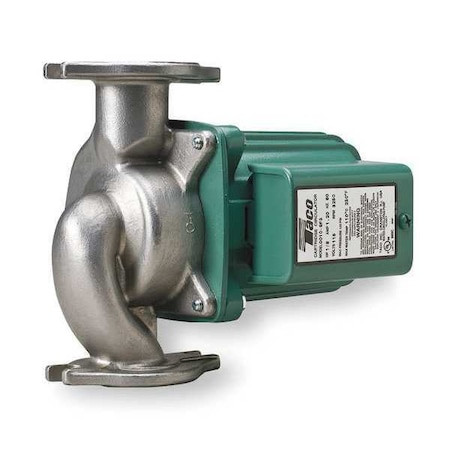

Potable Water Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection - 009-SF5-IFC

Potable Water Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection - 009-SF5-IFC

Taco
SKU:
009-SF5-IFC
|
UPC:
687752640045
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Potable Water Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/8, Maximum Feet of Head 35 ft, Maximum Flow Rate @ 10 Feet of Head 8 gpm, Maximum Flow Rate @ 15 Feet of Head 7 gpm, Maximum Flow Rate @ 1 Foot of Head 10 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00
Additional Information
Country of Origin:
United States
Item:
Potable Water Circulating Pump
Voltage:
115V AC
Phase:
Single
Horsepower:
1/8
Series:
009
Inlet/Outlet Size:
3/4 in to 1-1/2 in
Pump Type:
Standard
Number of Speeds:
1
Max. GPM @ Head:
10.5 gpm @ 1 ft
Maximum Feet of Head:
35 ft
Min. GPM @ Head:
4 gpm @ 25 ft
Connection Type:
Flange
Mechanical Seal:
No
Standards:
NSF, UL-CUS
Includes:
Flange Gaskets, Impedance Thermal Proctection
Amps:
1.4 A
Loop Configuration:
Open
Impeller Material:
Noryl(R)
Features:
Maintenance Free, Wet Rotor
Best Efficiency GPM @ Head:
6 gpm @ 18 ft
Face to Face Dimension:
6 3/8 in
Shut-Off:
35 ft
Pump Mount:
In Line
Thermal Protection:
Impedance
Drive Type:
Direct
Compliance:
Low Lead,NSF-372
Shaft Material:
Ceramic
Overall Length:
7 in
Overall Width:
5.5 in
Flange or Union Included:
No
Maximum Flow Rate @ 20 Feet of Head:
6 gpm
Nameplate Voltage:
115V AC
For Use With Potable Systems:
Yes
Maximum Flow Rate @ 15 Feet of Head:
7 gpm
Maximum Operating Pressure:
150 psi
Maximum Media Temperature:
230 Degrees F
Rotor Type:
Wet
Maximum Flow Rate @ 30 Feet of Head:
3 gpm
Maximum Flow Rate @ 1 Feet of Head:
10 gpm
Maximum RPM:
3,250 RPM
Minimum Media Temperature:
40 Degrees F
Series Family:
00
Compatible Media Type:
Water
Compatible Intake Pipe Size:
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Compatible Discharge Pipe Size:
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Frequency:
60 Hz
Maximum Flow Rate @ 50 Feet of Head:
9 gpm
Manufacturer Warranty Length:
3 yr
Maximum Flow Rate @ 25 Feet of Head:
5 gpm
Body Gasket Material:
EPDM
Maximum Flow Rate @ 10 Feet of Head:
8 gpm
Pump Housing Material:
Stainless Steel
Maximum Flow Rate @ 5 Feet of Head:
9 gpm
Package Quantity:
1
