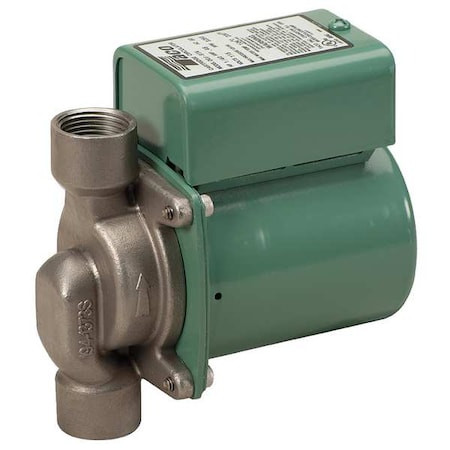

Potable Water Circulating Pump, 1/40 hp, 115V, 1 Phase, NPT Connection - 006-ST4-1

Potable Water Circulating Pump, 1/40 hp, 115V, 1 Phase, NPT Connection - 006-ST4-1

Taco
SKU:
006-ST4-1
|
UPC:
687752589153
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Potable Water Circulating Pump, Compatible Intake Pipe Size 3/4 in, Connection Type FNPT, Face to Face Dimension 4 in, Flange or Union Included Not Applicable, For Use With Potable Systems Yes, Horsepower 1/40, Maximum Feet of Head 10 ft, Maximum Flow Rate @ 10 Feet of Head 0 gpm, Maximum Flow Rate @ 1 Foot of Head 12 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 7 gpm, Series 006, Amps 0.52 A
Additional Information
Country of Origin:
United States
Item:
Potable Water Circulating Pump
Voltage:
115V AC
Phase:
Single
Horsepower:
1/40
Series:
006
Inlet/Outlet Size:
3/4 in
Pump Type:
Standard
Number of Speeds:
1
Max. GPM @ Head:
11 gpm @ 1 ft
Maximum Feet of Head:
10 ft
Min. GPM @ Head:
2 gpm @ 9 ft
Connection Type:
FNPT
Mechanical Seal:
No
Standards:
NSF, UL-CUS
Shut-Off:
9 1/2 ft
Thermal Protection:
Impedance
Pump Mount:
In Line
Compliance:
Low Lead,NSF-372
Face to Face Dimension:
4 in
Features:
Maintenance Free, Wet Rotor
Amps:
0.52 A
Shaft Material:
Ceramic
Impeller Material:
Noryl(R)
Drive Type:
Direct
Best Efficiency GPM @ Head:
6 gpm @ 6 ft
Loop Configuration:
Open
Includes:
Impedance Thermal Protection
Overall Length:
5.63 in
Overall Width:
3.09 in
Maximum Operating Pressure:
125 psi
Rotor Type:
Wet
Body Gasket Material:
EPDM
Frequency:
60 Hz
Maximum Flow Rate @ 50 Feet of Head:
[DELETE]
Maximum Media Temperature:
220 Degrees F
Minimum Media Temperature:
40 Degrees F
Compatible Intake Pipe Size:
3/4 in
For Use With Potable Systems:
Yes
Nameplate Voltage:
115V AC
Manufacturer Warranty Length:
3 yr
Maximum Flow Rate @ 10 Feet of Head:
0 gpm
Series Family:
00
Pump Housing Material:
Stainless Steel
Compatible Media Type:
Water
Maximum Flow Rate @ 15 Feet of Head:
0 gpm
Maximum RPM:
3,250 RPM
Compatible Discharge Pipe Size:
3/4 in
Maximum Flow Rate @ 5 Feet of Head:
7 gpm
Maximum Flow Rate @ 1 Feet of Head:
12 gpm
Flange or Union Included:
Not Applicable
Package Quantity:
1
