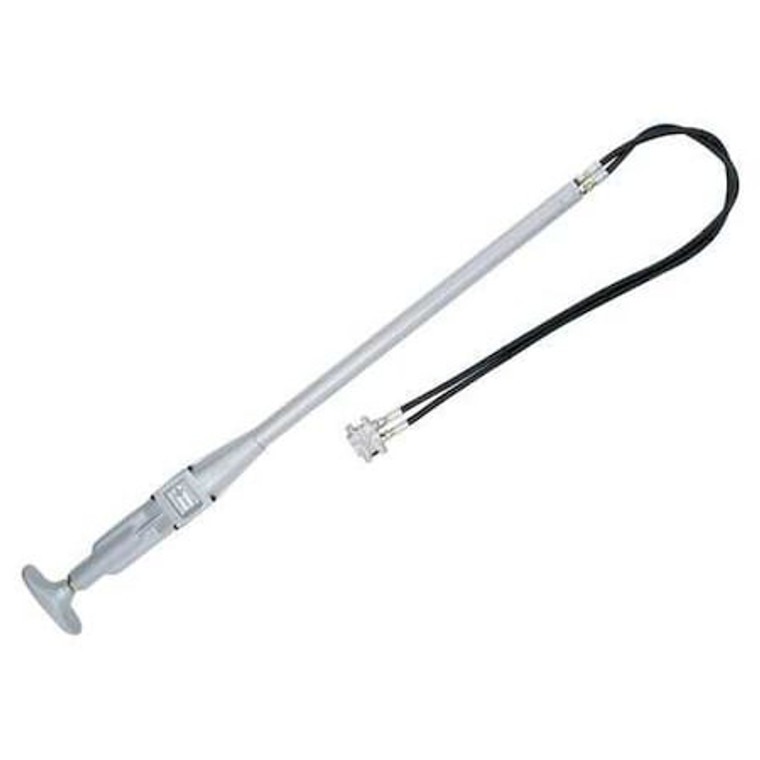

Pole Tamper, 60 In, With Hose End Valve - H4802

Pole Tamper, 60 In, With Hose End Valve - H4802

Greenlee
SKU:
H4802
|
UPC:
783310421986
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pole Tamper, Product Type Pole Tamper, Sign Post Drive Size Not Applicable, Blow Energy Not Applicable, Maximum Blows per Minute 1,300 bpm, Tool Length 60 in, Valve Location Hose End, Pressure Port 9/16 in - 18 SAE O-Ring, Return Port 3/4 in - 16 SAE, Minimum Operating Pressure 1,000 psi, Maximum Operating Pressure 2,000 psi, Minimum Flow Rate 4 gpm, Maximum Flow Rate 6 gpm, Foot Width 8 in, Foot Length 2 1/2 in, Tool Series H4802, Features Hose End Valve
Additional Information
Country of Origin:
United States
Item:
Pole Tamper
Hydraulic System Type:
Closed Center and Open Center
Blows per Minute:
1160@5GPM
Recommended Hydraulic Flow:
4-6 gpm
Max. Oil Temp.:
140 Degrees F
Return Port:
3/4 in - 16 SAE
Includes:
Kidney-Shaped Foot
Recommended Filtration (microns):
10
Width:
4 in
Max. Flow (GPM):
6
Min. Flow (GPM):
4
Max. Back Pressure:
200 psi
Foot Size:
2-1/2 in x 8 in
Weight:
23 lb
Type:
Hydraulic
Sound Level dB:
103
Max. Pressure (PSI):
2,000 psi
Length:
60 in
Pressure Port:
9/16 in - 18 SAE O-Ring
Features:
Hose End Valve
Standards:
SAE Standard J1273
Blow Energy:
Not Applicable
Tool Weight:
23 lb
Product Type:
Pole Tamper
Maximum Back Pressure:
200 psi
Maximum Operating Pressure:
2,000 psi
Maximum Oil Temperature:
140 Degrees F
Recommended Hydraulic Flow Rate:
5 gpm
Valve Location:
Hose End
Maximum Blows per Minute:
1,300 bpm
Maximum Flow Rate:
6 gpm
Foot Length:
2 1/2 in
Foot Width:
8 in
Tool Width:
4 in
Relief Valve Pressure Setting:
2,000 psi
Tool Series:
H4802
Recommended Filtration:
10 micron
Minimum Flow Rate:
4 gpm
Minimum Operating Pressure:
1,000 psi
Tool Length:
60 in
Sign Post Drive Size:
Not Applicable
Package Quantity:
1
