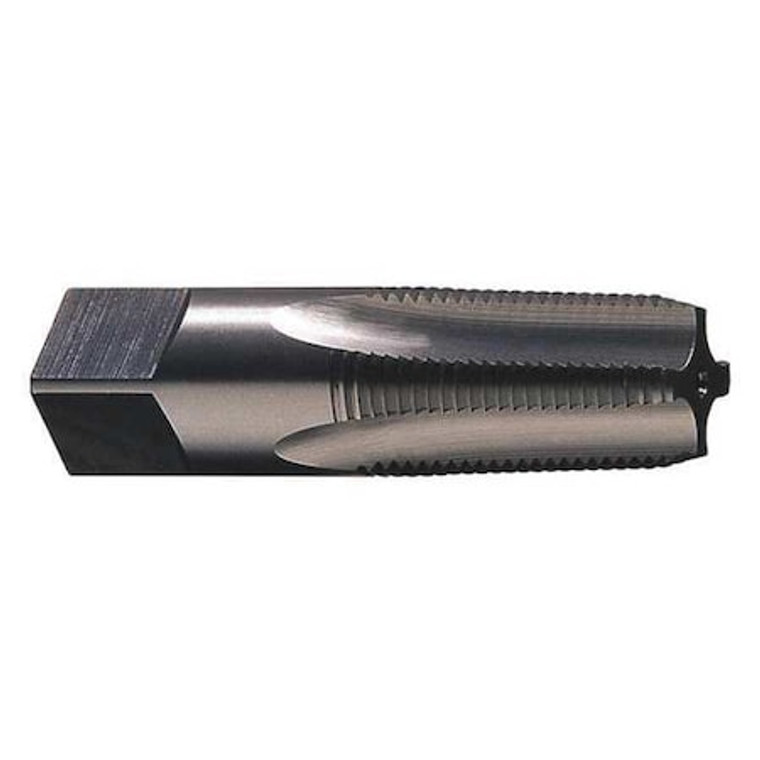

Pipe Tap, 1"-11-1/2, Semi-Bottoming, 5 Flutes, NPT - C64219

Name: Pipe Tap, 1"-11-1/2, Semi-Bottoming, 5 Flutes, NPT - C64219
Brand: Cle-Line
SKU: C64219
Price: 114.53 USD
Availability: InStock

Cle-Line

SKU:

C64219

UPC:

697334642190

Availability:

In Stock

(No reviews yet)

Pipe and Conduit Thread Tap, Thread Size 1 In.-11 1/2, NPT, Overall Length 3 3/4 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/4 in, 75 Percent Thread Drill Size 1.1406 in, Number of Flutes 5

Country of Origin:: United States
Item:: Pipe Tap
Tap Thread Size:: 1-11-1/2"
Tap Chamfer:: Semi-Bottoming
Number of Flutes:: 5
Tap Thread Type:: NPT
Standards:: USCTI Table 311
List Number:: 242
Tap Finish:: Bright
Thread Direction:: Right Hand
Shank Dia.:: 1.125";Thread Length=1-3/4""
Tap Style:: Pipe
Tap Grouping:: Tap
Pitch Diameter Limit:: Not Rated
Tap Material:: High Speed Steel
Number of Pieces:: 1
Tap Dimension Type:: Inch
Overall Length:: 3-3/4";Cutting Direction - Machining=Right Hand"
Series:: 0462
Thread Size:: 1-11 1/2"
Shank Length:: 2 3/8 in
Extended Neck:: No
Coolant Fed:: Non-Coolant Through
75% Thread Drill Size:: 1.1406 in
Max. Projection:: 0.6780 in
Interrupted Thread:: No
Drill Bit Size:: 1 1/8 in, 1 9/64 in
Material Grade - Machining:: 462
Thread Standard:: NPT
Tap Shank Standard:: USCTI Table 311
Square Size:: 0.8430 in
Measurement System:: Fractional Inch
Primary Material Application ISO Code:: K, N, P
Threads per Inch:: 11.5
Primary Material Application:: Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Spiral Direction:: Neutral
Tap Length Standard:: USCTI Table 311
Package Quantity:: 1
