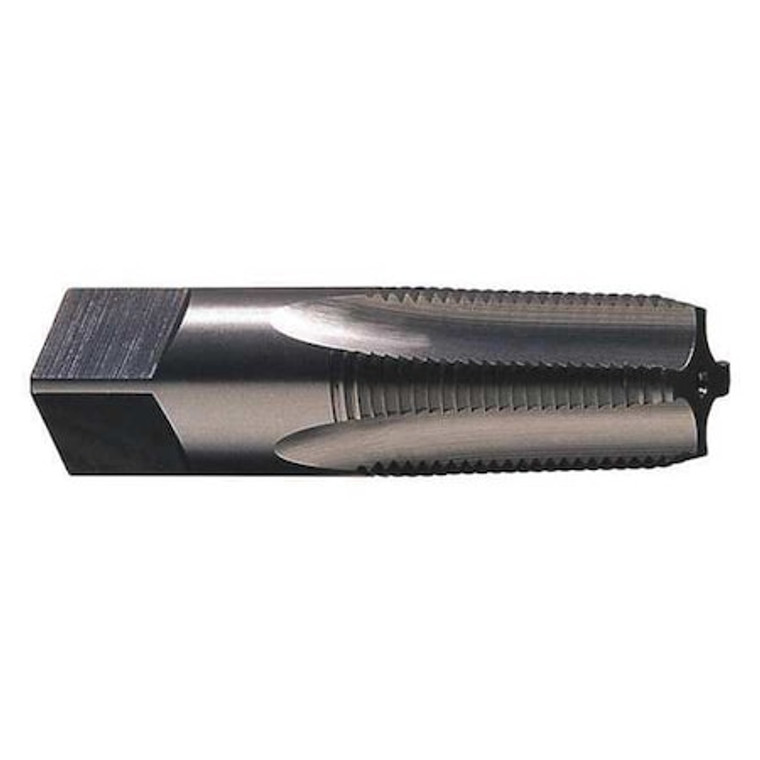

Pipe Tap, 1-1/4"-11-1/2, Semi-Bottoming, 5 Flutes, NPT - C64220

Name: Pipe Tap, 1-1/4"-11-1/2, Semi-Bottoming, 5 Flutes, NPT - C64220
Brand: Cle-Line
SKU: C64220
Price: 150.64 USD
Availability: InStock

Cle-Line

SKU:

C64220

UPC:

697334642206

Availability:

In Stock

(No reviews yet)

Pipe and Conduit Thread Tap, Thread Size 1-1/4 In.-11 1/2, NPT, Overall Length 4 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/4 in, 75 Percent Thread Drill Size 1.4844 in, Number of Flutes 5

Country of Origin:: United States
Item:: Pipe Tap
Tap Thread Size:: 1-1/4-11-1/2"
Tap Chamfer:: Semi-Bottoming
Number of Flutes:: 5
Tap Thread Type:: NPT
Shank Dia.:: 1.312";Tap Grouping=Tap"
List Number:: 242
Standards:: USCTI Table 311
Tap Style:: Pipe
Pitch Diameter Limit:: Not Rated
Thread Direction:: Right Hand
Tap Dimension Type:: Inch
Tap Material:: High Speed Steel
Number of Pieces:: 1
Overall Length:: 4";Tap Finish=Bright"
Thread Length:: 1-3/4";Cutting Direction - Machining=Right Hand"
Series:: 0462
Primary Material Application ISO Code:: K, N, P
Max. Projection:: 0.6860 in
Measurement System:: Fractional Inch
Tap Shank Standard:: USCTI Table 311
Square Size:: 0.9840 in
Tap Length Standard:: USCTI Table 311
Primary Material Application:: Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Shank Length:: 2 1/4 in
75% Thread Drill Size:: 1.4844 in
Threads per Inch:: 11.5
Coolant Fed:: Non-Coolant Through
Spiral Direction:: Neutral
Thread Standard:: NPT
Drill Bit Size:: 1 15/32 in, 1 31/64 in
Thread Size:: 1-1/4-11 1/2"
Material Grade - Machining:: 462
Extended Neck:: No
Interrupted Thread:: No
Package Quantity:: 1
