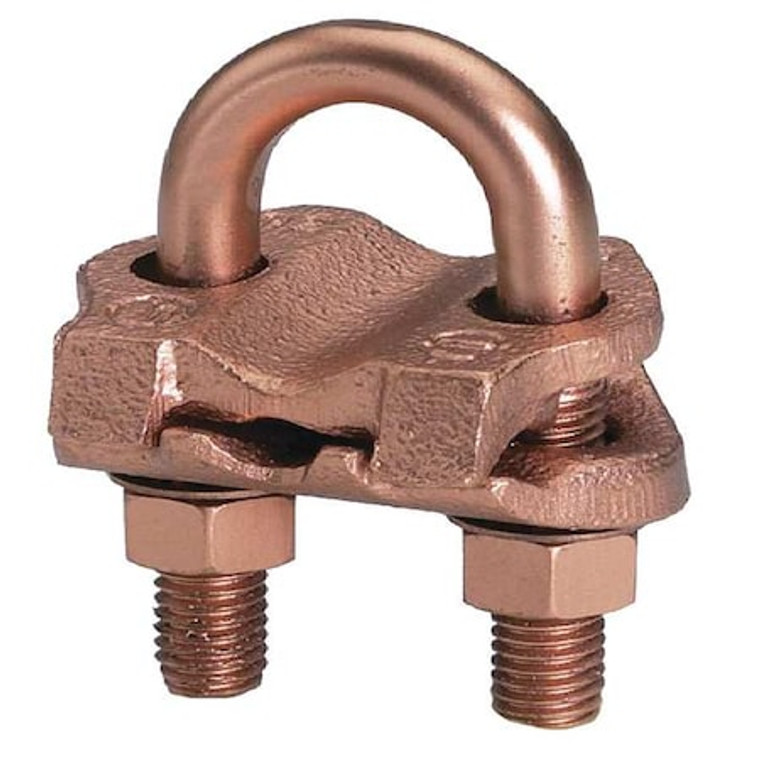

Pipe Ground Clamp, 5AWG, 3.5In - GAR1626
BurndyLog in for pricing
(No reviews yet)
Write a Review
Burndy
Pipe Ground Clamp, 5AWG, 3.5In - GAR1626
Grounding Connector, Grounding Wire Size 4 to 3/0 AWG SOL, 5 to 2/0 AWG STR, Material Copper, Number of Wires - Grounding 1, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 2/0 AWG STR, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Copper Conductors, Ground Rods, Pipes, Rebar, Grounding Wires Connected To #11 Rebar, 1 1/4 in Pipe, 1 3/8 in to 1 1/2 in Rod, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
- Country of Origin:
- United States
- Item - Grounding Connector:
- Grounding Connector
- Item:
- Grounding Connector
- Type - Grounding Connector:
- Mechanical
- Type:
- COMMERCIAL
- Wire Size - Grounding:
- 4 to 2/0 AWG
- Material:
- Copper
- Standards:
- UL Listed Direct Burial, UL467
- Grounding Wires Connected To:
- #11 Rebar, 1 1/4 in Pipe, 1 3/8 in to 1 1/2 in Rod
- Material - Grounding Connector:
- Copper Alloy
- Number of Wires - Grounding:
- 1
- Material of Construction:
- Copper Alloy
- Conductor Size:
- 2/0 AWG to 4 AWG
- Rod Dia.:
- 1-3/8 to 1-1/2" Rod, 1-1/4" Pipe"
- Description/Special Features:
- Direct Burial
- Package Quantity:
- 1
- For Use With:
- Copper Conductors, Ground Rods, Pipes, Rebar
- Grounding Wire Size:
- 4 to 3/0 AWG SOL, 5 to 2/0 AWG STR
- For Maximum Ground Conductor Wire Size:
- 2/0 AWG STR
- Overall Length:
- 1 9/16 in
- Overall Width:
- 3 in
- Overall Height:
- 3 1/2 in
- Accessory Type:
- Grounding Connector
- Torque:
- 240 in-lb
- For Rod Dia.:
- 1 3/8 in to 1 1/2 in
- For Maximum Pipe Size:
- 1 1/4 in
- For Minimum Ground Conductor Wire Size:
- 4 AWG SOL
- For Minimum Pipe Size:
- 1 1/4 in
- Application:
- For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
- Conductor - Rod Size Range:
- 1 3/8 in-1 1/2 in
- Installation Torque Recommended in-lb:
- 240 LBS/in
- Plating Type:
- Bright Dipped
- Conductor - Rebar Size:
- 11
- UL Listed:
- Yes
- Conductor - Copper Tube Std Size Range:
- 1/4 IPS IPS
- Installation Torque Recommended Run in-lb:
- 240 Lb in
- Conductor - Copper Solid Size:
- 4 AWG
- Industry Standard(s):
- UL467
- Dimension - Outside Diameter inch:
- 1.66 in
- Dimension - L Length Overall mm:
- 40 mm
- U Bolt Type:
- 204
- Dimension - Width inch:
- 3.00 in
- Dimension - Width fraction:
- 3 in
- Certification - UL Listed Direct Burial:
- Yes
- Conductor - Copper Solid Size Range:
- 4 AWG-3/0 AWG
- Conductor Type:
- CU C Solid-SizeCU C Str-SizeCU Tube Std-SizeRod-Size
- Plated:
- N
- Dimension - Length Overall inch:
- 1.56 in
- Dimension - Width mm:
- 76 mm
- Standards - Industry Standards Met:
- UL467
- Conductor - Copper Str Size:
- 2/0 AWG
- Conductor - Rod Size:
- 1.380-1.66 in
- Material - Hardware:
- DURIUMâ„¢ Silicon Bronze
- Conductor - Copper Str Size Range:
- 5 AWG-2/0 AWG
- Dimension - Height inch:
- 3.50 in
- Dimension - Height fraction:
- 3-1/2 in
- Conductor - Rebar Size Range:
- 11
- Conductor - Pipe or Round Tube Size Range:
- 1-1/4 in
- Dimension - B Length inch:
- 1.88 in
- Conductor - Copper Tube Std Size:
- 1/4 IPS IPS
