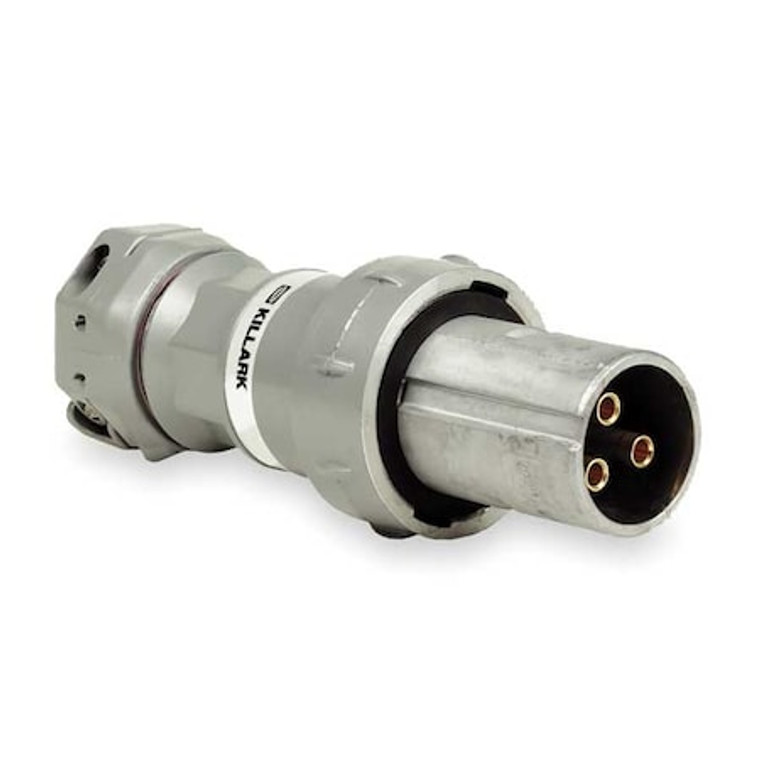

Pin & Slve Plug, 100A, 3P, 3W, 600VAC/250VDC - VP10377

Pin & Slve Plug, 100A, 3P, 3W, 600VAC/250VDC - VP10377

Hubbell
SKU:
VP10377
|
UPC:
783936834733
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pin and Sleeve Plug, Current Rating 100 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 2.469 in, Grounding Grounded, Grounding Style Style 1, Housing Material Copper-Free Aluminum
Additional Information
Country of Origin:
United States
Amps - Plugs and Receptacles:
100 A
Number of Poles:
3
Number of Wires:
3
Switch Rated:
No
Grounding Style:
Style 1
Material:
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Item:
Pin and Sleeve Plug
Amps:
100 A
Voltage:
600V AC/250V DC
Standards:
CSA Certified LR111846, UL E10757
NEMA Rating:
4x
Features:
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase:
Three
Grounding:
Grounded
Shrouded:
Yes
Reverse Service:
No
Maximum Wire Size:
2 AWG
For Location:
Indoor, Outdoor
Market:
Industrial
Face Diameter:
2.469 in
Power Indicating Light:
No
Voltage Rating:
250V DC, 600V AC
Outside Diameter:
4 in
Housing Material:
Metallic
Housing Color:
Gray
Horsepower Rating:
Not Applicable
Cap Type:
Not Applicable
Minimum Wire Size:
4 AWG
Hazardous Location Specification:
Class I, Div 1 and 2, Group A, B, C, D
Current Rating:
100 A
IP Rating:
Not Rated
NEMA Enclosure Rating:
4X
Wire Connection Type:
Screw Terminals
For Environment:
Cold, Corrosive, Hazardous Location, Marine, Wet
Overall Length:
10.875 in
Connection Orientation:
Straight
Housing Material Finish:
Baked Powder Epoxy/Polyester Coated
Finish:
Baked Powder Epoxy/Polyester Finish
Type:
Pin & Sleeve
Hz:
50-400 Hz
Grommet Range:
0.88-1.68
Finish Type:
Baked Powder Epoxy/Polyester Finish
Height:
4.25 in
Style:
Style I
Dimensions:
10.87 in x 4.25 in x 4.25 in
Amperage Rating:
100 A
Frequency Rating:
50-400 Hz
Application:
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as
Series:
VersaMate
Width:
4.25 in
Length:
10.87 in
Package Quantity:
1
