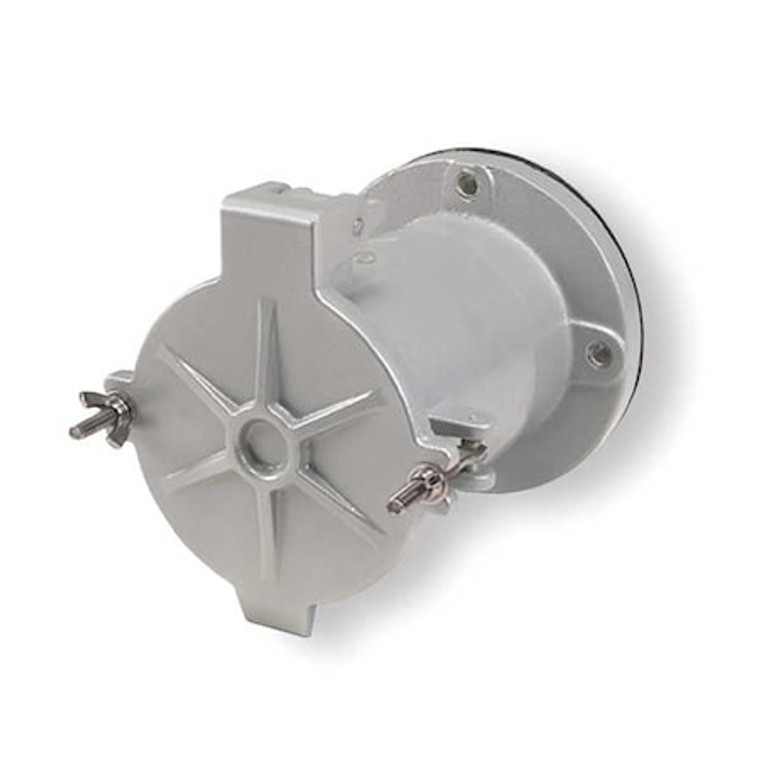

Pin & Sleev Receptacl, 200A, 4P, 3W, NEMA 4X - VR20422

Pin & Sleev Receptacl, 200A, 4P, 3W, NEMA 4X - VR20422

Hubbell
SKU:
VR20422
|
UPC:
783936833149
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Pin and Sleeve Receptacle, Current Rating 200 A, Flange Type Flanged, Grounding Style Style 2, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Three, Shrouded Yes, Voltage Rating 600V AC/250V DC, Cap Type Flip-Up and Screw Cap, Connection Orientation Straight, Grounding Grounded, Housing Color Gray, Housing Material Copper-Free Aluminum, Market Industrial, Power Indicating Light No
Additional Information
Country of Origin:
United States
Item:
Pin and Sleeve Receptacle
Phase:
Three
Number of Poles:
3
Number of Wires:
3
Grounding Style:
Style 2
Material:
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Voltage:
600V AC/250V DC
Amps:
200 A
Standards:
CSA Certified LR111846, UL E10757
NEMA Rating:
4x
Type:
Pin & Sleeve
Body Material - Pin and Sleeve:
Copper-Free Aluminum
Width:
6.83 in
Length:
7.87 in
Use With:
Suitable for Indoor Or Outdoor Use, Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, ReNeries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food
Features:
Boxes Come with a Green Grounding Screw
Receptacle Type:
Pin and Sleeve
Amps - Plugs and Receptacles:
200 A
IP Rating:
Not Rated
Market:
Industrial
Hazardous Location Specification:
Not Applicable
Voltage Rating:
600V AC/250V DC
Wire Connection Type:
Spring Clamp Terminals
Power Indicating Light:
No
For Location:
Indoor, Outdoor
Cap Type:
Flip-Up and Screw Cap
Shrouded:
Yes
Housing Material Finish:
Baked Powder Epoxy/Polyester Coated
Flange Type:
Flanged
Housing Color:
Gray
For Environment:
Cold, Corrosive, Hazardous Location, Wet
Connection Orientation:
Straight
NEMA Enclosure Rating:
4X
Grounding:
Grounded
Polarized:
Yes
Reverse Service:
No
Current Rating:
200 A
Number of Gangs:
1
Housing Material:
Copper-Free Aluminum
Contact Material:
Brass
Hz:
50-400 Hz
Finish Type:
Baked Powder Epoxy/Polyester Finish
Amperage Rating:
200 A
Application:
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as
Style:
Style II
Series:
VersaMate
Height:
7.59 in
Dimensions:
7.87 in x 6.83 in x 7.59 in
Frequency Rating:
50-400 Hz
Package Quantity:
1
