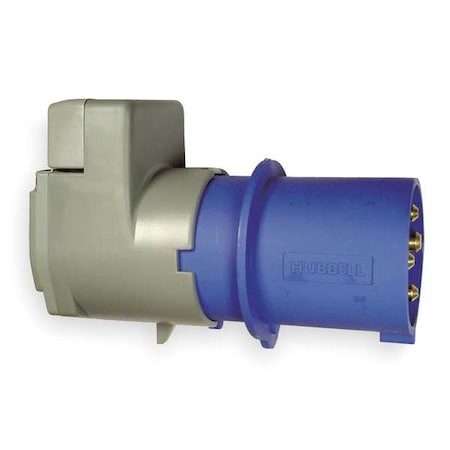

Pin and Sleeve Plug, 3P, 4W, 60A, 250V - A460P9

Pin and Sleeve Plug, 3P, 4W, 60A, 250V - A460P9

Hubbell
SKU:
A460P9
|
UPC:
783585507804
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Angled Pin and Sleeve Plug, Current Rating 60 A, Horsepower Rating 15 hp, Housing Color Blue, IP Rating IP22, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Minimum Cable Diameter 0.83 in, Grounding Grounded, Grounding Style IEC, Housing Material Polybutylene Terephthalate, Maximum Wire Size 4 AWG, Minimum Wire Size 8 AWG, NEMA Enclosure Rating 4X
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Angled Pin and Sleeve Plug
Body Material - Pin and Sleeve:
Zytel 101 Nylon
Amps - Plugs and Receptacles:
60
Voltage - Plugs and Receptacles:
250V AC
Color - Plugs and Receptacles:
Blue
Number of Poles:
3
Number of Wires:
4
Phase - Electrical:
3
Switch Rated:
No
Grounding Style:
IEC
Amps:
60
Phase:
Three
Voltage:
250VAC
Color:
Blue
HP:
15 hp
Features:
Integrated Cord Grip Limits Strain on Terminals, Recessed Pins are Protected from Impact and Abuse
Body Material:
Zytel 101 Nylon
Standards:
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, UL 1682
Item:
Angled Pin and Sleeve Plug
Connection Orientation:
Straight
Grounding:
Grounded
Reverse Service:
No
NEMA Enclosure Rating:
4X
UL 94 Flammability Rating:
HB
Housing Material:
Non-Metallic
Housing Color:
Blue
Minimum Wire Size:
8 AWG
IP Rating:
IP22
Current Rating:
60 A
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
Overall Length:
7 in
For Location:
Indoor
Voltage Rating:
250V AC
For Minimum Cable Diameter:
0.83 in
Shrouded:
Yes
Cap Type:
No Cap or Cover
Power Indicating Light:
No
Minimum Operating Temperature:
-40 Degrees C
Maximum Wire Size:
4 AWG
Outside Diameter:
3.31 in
Maximum Operating Temperature:
75 Degrees C
Horsepower Rating:
15 hp
Wire Connection Type:
Screw Terminals
Material:
Composite
Max. Voltage:
250V RMS
Type:
Angled Plug
Style:
Standard Service
Display Size:
Standard Sized
Cord Type:
All Portable
Wire Size:
#4 AWG
Connectivity:
Pressure Terminal Screws
Amperage Rating:
60 A
OEM Brand Name:
Hubbell Wiring Device-Kellems
Performance:
Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or C
Nema Rating:
Non-NEMA
Material - Mounting Hardware:
Cord Mounted
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Item Type:
Low Profile Male Plug
Current / Amperage Rating:
60 A
Series:
Low Profile
Voltage Rating Description:
3 Phase 250 VAC
Application:
High Ampacity Connections
Package Quantity:
1
