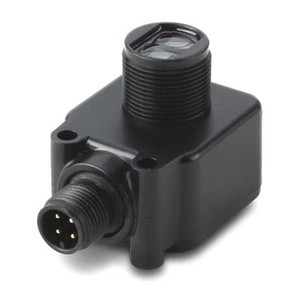

Photoelectric Sensor, Cylindrical, Diffuse - E65-SMSD200-HDD

Photoelectric Sensor, Cylindrical, Diffuse - E65-SMSD200-HDD

Eaton
SKU:
E65-SMSD200-HDD
|
UPC:
782114786512
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin Micro Connector, Circuit Type - Cylindrical Photoelectric Sensor NPN/PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 200 mm, Length - Cylindrical Photoelectric Sensor 55 mm
Additional Information
Country of Origin:
Mexico
Item:
Photoelectric Sensor
Power Requirement - Cylindrical Photoelectric Sensor:
10 to 30V DC
Length - Cylindrical Photoelectric Sensor:
55 mm
Electrical Connection:
M12
Operating Temp. Range:
-25 Degrees to 55 Degrees C
Electrical Connection - Cylindrical Photoelectric Sensor:
4-Pin Micro Connector
Light Source:
Red LED
Max. Sensing Distance - Cylindrical Photoelectric Sensor:
200 mm
Body Material:
Resin
Max. Load Current:
100 mA
Circuit Type - Cylindrical Photoelectric Sensor:
NPN/PNP
NEMA Rating:
1, 12, 13, 3, 4, 6, 6P
Min. Object Size:
Adjustable By Changing Gain
Sensing Method:
Diffuse
Standards:
CE, cUL, UL Listed
Operating Frequency:
500 Hz
Features:
Auto Reset Short Circuit
Operating Mode - Photoelectric Sensor:
Dark On
Sensing Method - Cylindrical Photoelectric Sensor:
Diffuse
Diameter - Cylindrical Photoelectric Sensor:
18 mm
Response Time:
1 msec
IP Rating:
IP68, IP69K
Response Time (ms):
1
Overall Height:
37 mm
Switch type:
Photoelectric
LED indicator:
Output
Protection:
Auto reset short circuit
Product Height:
1.47 in
Operating mode:
Diffuse reflective
Compliances:
CE Marked
Operating temperature - min:
-13°F
Series:
E65 SM
Maximum DC current:
100 mA
Environmental rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2
Product Width:
2.17 in
Connection:
M12
Certifications:
UL Listed
Input voltage:
10-30 Vdc
Enclosure Material:
Lens
Contact Rating:
100 mA at 10-30 Vdc
Operating temperature - max:
131°F
Cable type:
Polyvinyl Chloride (PVC)
Contact configuration:
NPN and PNP open collector
Sensor type:
Diffuse reflective
Product Length/Depth:
1.29 in
Product Name:
Eaton E65 SM compact photoelectric sensor
Emitted Sensor Light:
Red Light
Switching Frequency:
500 Hz
Sensing Distance - Minimum:
5 mm
Electrical Installation Type:
Direct Connector
Output Circuit Type:
NPN and PNP
Operating Temperature - Maximum:
131 Degrees F
Style:
Rectangular
Product Type:
Photoelectric Sensor
Operating Mode:
Dark On
Output Circuit Relay Style:
Not Applicable
NEMA Enclosure Rating:
1, 12, 13, 3, 4, 4X, 6, 6P
Overall Depth:
33 mm
Operating Temperature - Minimum:
-13 Degrees F
Overall Width:
55 mm
Sensing Distance - Maximum:
200 mm
Overall Diameter:
18 mm
Load Current - Maximum:
100 mA
Sensor Diameter:
18 mm
Orientation:
Right Angle
DC Voltage Rating:
10-30V DC
Includes Indicator Lights:
Indicator Lights Included
Package Quantity:
1
