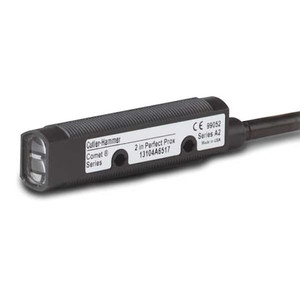

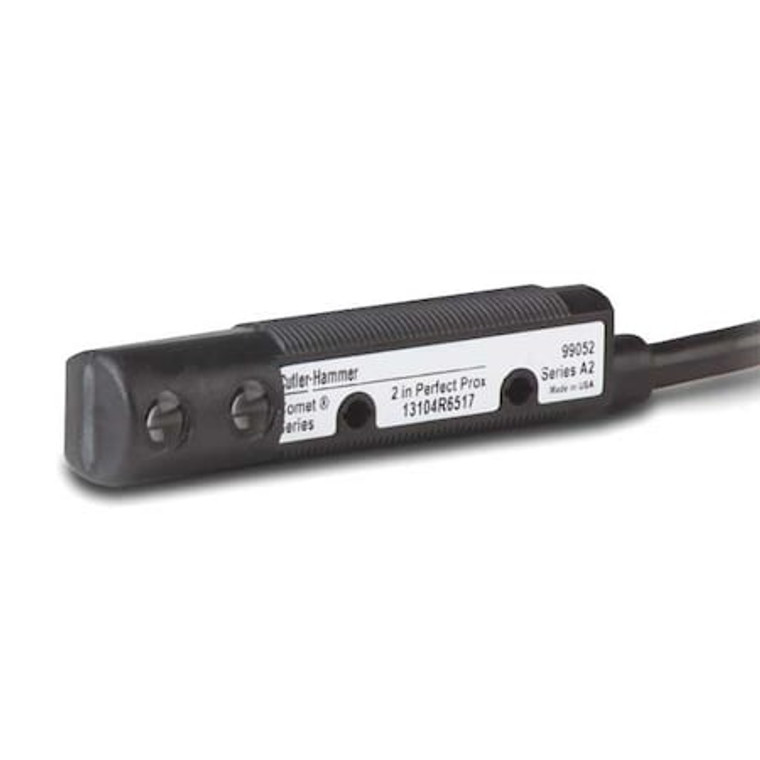

Photoelectric Sensor, Cylindrical, Diffuse - 13104RS5013

Photoelectric Sensor, Cylindrical, Diffuse - 13104RS5013

Eaton
SKU:
13104RS5013
|
UPC:
782114010624
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 20 to 264V AC/15 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm
Additional Information
Country of Origin:
Mexico
Item:
Photoelectric Sensor
Width:
7.30";Depth=0.47""
Electrical Connection:
Bare Wire
IP Rating:
IP68, IP69K
Max. Sensing Distance - Cylindrical Photoelectric Sensor:
100 mm
Sensing Method - Cylindrical Photoelectric Sensor:
Diffuse
Max. Sensing Distance:
100mm
Diameter:
18mm
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X, 6
Body Material:
Polyurethane
Operation Mode:
Selectable Light On/Dark On
Power Requirement:
20 to 264VAC/15 to 30VDC
Sensing Method:
Diffuse
Response Time:
10 msec
Response Time (ms):
10
Electrical Connection - Cylindrical Photoelectric Sensor:
2m Cable
Operating Temp. Range:
-40 Degrees to 70 Degrees C
Circuit Type:
NPN
Operating Mode - Photoelectric Sensor:
Selectable Light On/Dark On
Diameter - Cylindrical Photoelectric Sensor:
18 mm
Light Source:
Red LED
Features:
Latching Short Circuit
Power Requirement - Cylindrical Photoelectric Sensor:
20 to 264V AC/15 to 30V DC
Shape:
Cylindrical
Length:
3.02";Length - Cylindrical Photoelectric Sensor=77 mm"
Min. Object Size:
Adjustable By Changing Gain
Max. Load Current:
300 mA
Standards:
CE, cUL, UL Listed
Circuit Type - Cylindrical Photoelectric Sensor:
NPN
Operating Frequency:
500 Hz
Cable Length:
2 m
Overall Height:
77 mm
Certifications:
UL Recognized
Cord length:
79.2 ft
Operating mode:
Background suppression
Sensor type:
Back ground suppression
Switch type:
Photoelectric
LED indicator:
Output status
Operating temperature - min:
-40°F
Input voltage:
20-264 Vac, 15-30 Vdc
Operating temperature - max:
158°F
Product Width:
.71 in
Contact configuration:
AC
Maximum DC current:
300 mA
Environmental rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K
Product Length/Depth:
.6 in
Protection:
Latching short circuit
Cable type:
Polyvinyl Chloride (PVC)
Contact Rating:
300 mA AC/DC at 20-264Vac/15-30Vdc
Connection:
6.6 ft (2 m) cable
Compliances:
CE Marked
Product Height:
3.02 in
Enclosure Material:
Body
Maximum AC current:
300 mA
Product Name:
Eaton Comet 18mm tubular photoelectric sensor
Switching Frequency:
500 Hz
Operating Temperature - Maximum:
158 Degrees F
Sensing Distance - Maximum:
100 mm
Sensor Diameter:
18 mm
Output Circuit Type:
NPN
Style:
Cylindrical
Overall Diameter:
18 mm
Output Circuit Relay Style:
Not Applicable
Overall Depth:
15 mm
Sensing Distance - Minimum:
13 mm
Operating Temperature - Minimum:
-40 Degrees F
AC Voltage Rating:
20-264V AC
Series:
Comet
Product Type:
Photoelectric Sensor
Operating Mode:
Selectable Light On/Dark On
Load Current - Maximum:
300 mA
Orientation:
Right Angle
DC Voltage Rating:
15-30V DC
Emitted Sensor Light:
Red Light
Overall Width:
18 mm
Electrical Installation Type:
Prewired Cable
NEMA Enclosure Rating:
1, 12, 13, 3, 4, 4X, 6, 6P
Includes Indicator Lights:
Indicator Lights Included
Package Quantity:
1
