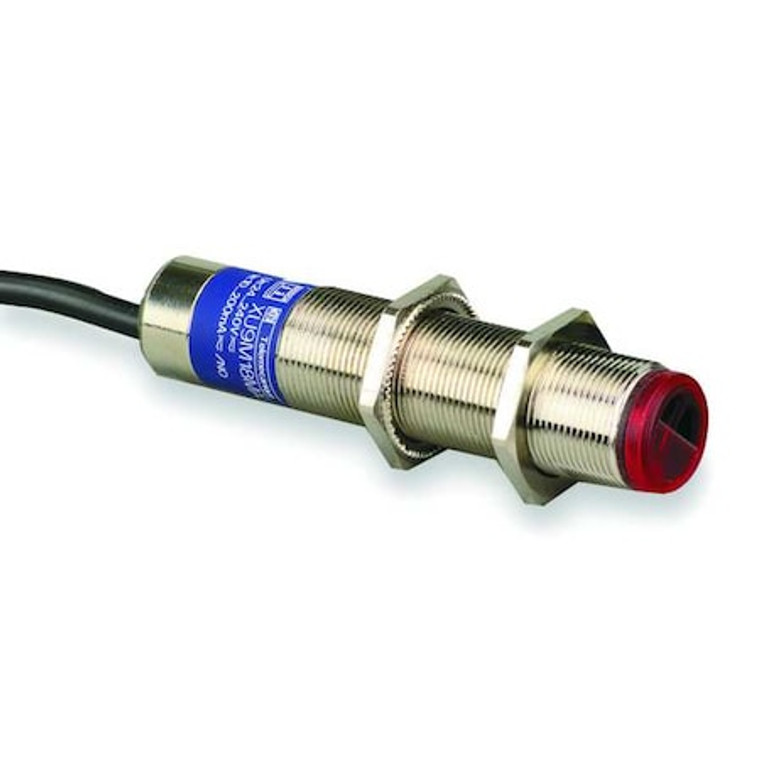

Photoelectric Sensor, Cylinder, Reflective - XUB1ANANL2

Photoelectric Sensor, Cylinder, Reflective - XUB1ANANL2

Telemecanique Sensors
SKU:
XUB1ANANL2
|
UPC:
785901697770
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 12 to 24V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 6 m
Additional Information
Country of Origin:
France
Item:
Photoelectric Sensor
Width:
3.00";Material=plastic"
Response Time:
1 msec
Length:
1.80";Operating Frequency=500 Hz"
Footnotes:
IP65 IP67 Rated
Power Requirement:
12 to 24VDC
Operating Temp. Range:
-25 Degrees to 55 Degrees C
Circuit Type - Cylindrical Photoelectric Sensor:
NPN
Sensing Method - Cylindrical Photoelectric Sensor:
Retroreflective
Sensing Method:
Retroreflective
Operation Mode:
Selectable Light On/Dark On
Diameter:
18mm
Diameter - Cylindrical Photoelectric Sensor:
18 mm
Power Requirement - Cylindrical Photoelectric Sensor:
12 to 24V DC
Standards:
CE, CSA, IEC 60529, RoHS, UL Listed
NEMA Rating:
Not Rated
Length - Cylindrical Photoelectric Sensor:
46 mm
Features:
Output Reverse Polarity Protection, Output Short-Cut Protection, Surge Suppressor
Response Time (ms):
1
Max. Load Current:
100 mA
Electrical Connection:
Bare Wire
Body Material:
PBT
Max. Sensing Distance - Cylindrical Photoelectric Sensor:
6 m
Electrical Connection - Cylindrical Photoelectric Sensor:
2m Cable
Operating Mode - Photoelectric Sensor:
Selectable Light On/Dark On
Light Source:
Infrared LED
Shape:
Cylindrical
IP Rating:
IP65, IP67
Overall Height:
46 mm
Current Consumption:
35 mA no-load
Cable Length:
2 m
[Us] Rated Supply Voltage:
12...24 V DC reverse polarity protection
Ambient Air Temperature For Storage:
-40-70°C
Shock Resistance:
30 gn 11 ms) IEC 60068-2-27
Enclosure Material:
PBT
Discrete Output Type:
NPN
Switching Frequency:
500 Hz
Supply Circuit Type:
DC
Emission:
infrared reflex
Series Name:
general purpose single mode
Setting-Up:
without sensitivity adjustment
Status Led:
1 LED yellow)output state
Sensor Design:
cylindrical M18
Ambient Air Temperature For Operation:
-25-55°C
Type Of Output Signal:
discrete
Line Of Sight Type:
axial
Add On Output:
without
[Sn] Nominal Sensing Distance:
4-4 m reflex need reflector XUZC50
Product Certifications:
CE || UL || CSA
Switching Capacity In Ma:
<= 100 mA overload and short-circuit protection)
Wire Insulation Material:
PvR
Maximum Voltage Drop:
<1.5 V closed state)
Supply Voltage Limits:
10-36 V DC
Maximum Delay Response:
1 ms
Ip Degree Of Protection:
IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
Vibration Resistance:
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Delay First Up:
15 ms
Maximum Sensing Distance:
5.5 m reflex
Lens Material:
PMMA
Discrete Output Function:
1 NO
Electronic Sensor Type:
photo-electric sensor
Wiring Technique:
3-wire
Output Type:
solid state
Maximum Delay Recovery:
1 ms
Sensor Name:
XUB
Detection System:
reflex
Overall Diameter:
18 mm
Orientation:
Straight
Sensing Distance - Maximum:
5.5 m
Product Type:
Photoelectric Sensor
Output Circuit Contact Form:
1NO
Sensor Diameter:
18 mm
Output Circuit Relay Style:
Not Applicable
Operating Temperature - Minimum:
-13 Degrees F
DC Voltage Rating:
12-24V DC
Operating Mode:
Selectable Light On/Dark On
Operating Temperature - Maximum:
131 Degrees F
Load Current - Maximum:
100 mA
Includes Indicator Lights:
Indicator Lights Included
Output Circuit Type:
NPN
Style:
Cylindrical
Series:
XU
NEMA Enclosure Rating:
No Enclosure
Electrical Installation Type:
Prewired Cable
Package Quantity:
1
