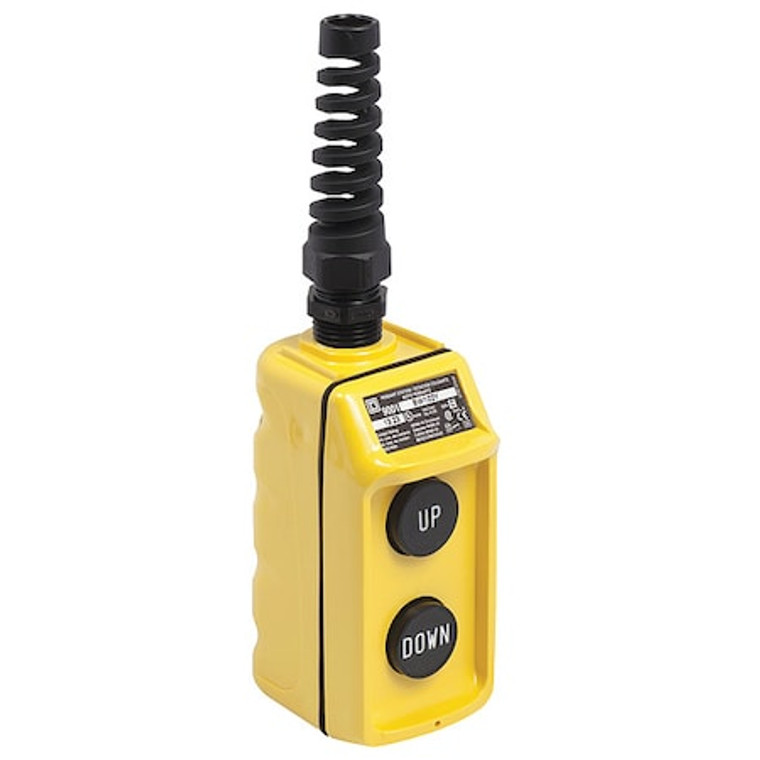

Pendant Station, Up/Down Legend, Depth: 2.94 in - 9001BW102Y

Name: Pendant Station, Up/Down Legend, Depth: 2.94 in - 9001BW102Y
Brand: Schneider Electric
SKU: 9001BW102Y
Price: 225.39 USD
Availability: InStock

Schneider Electric

SKU:

9001BW102Y

UPC:

785901729907

Availability:

In Stock

(No reviews yet)

Pendant Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Up/Down, Type of Operator Push Button, Contact Form 2NO, Mechanical Interlock Yes, NEMA Rating 1, 3, 3R, 4, 4X, NEMA Contact Rating Designation B600/P600, Hub 1/2 in NPT, Height 4.69 in, Width 2.19 in, Depth 2.94 in, Enclosure Material Thermoplastic, Enclosure Color Yellow, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508

Country of Origin:: Mexico
Item:: Pendant Control Station
Contact Form:: 2NO
Number of Gangs:: 1
Legend:: Up/Down
Type of Operator:: Push Button
Number of Pilot Lights:: 0
Number of Operators:: 2
NEMA Rating:: 1, 3, 3R, 4, 4X
Hub Style:: Dead-End
Standards:: CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508
Housing Color:: Yellow
Mechanical Interlock:: Yes
Hub:: 1/2 in NPT
Depth:: 2.94 in
Height:: 4.69 in
Width:: 2.19 in
Number of Speeds:: 2
NEMA Contact Rating Designation:: B600/P600
Housing Material:: PET Polyester Blend, Polycarbonate
Enclosure Color:: Yellow
Enclosure Material:: Thermoplastic
Product Type:: Pendant Control Station
NEMA Enclosure Rating:: 1, 3, 3R, 4, 4X
AC Contact Rating:: 5 A @ 600 V
Includes Mechanical Interlock:: Mechanical Interlock Included
Pilot Light Color:: Not Applicable
Overall Depth:: 2.94 in
Overall Height:: 4.69 in
Overall Width:: 2.19 in
Operator Configuration:: (2) Push Buttons
Package Quantity:: 1
