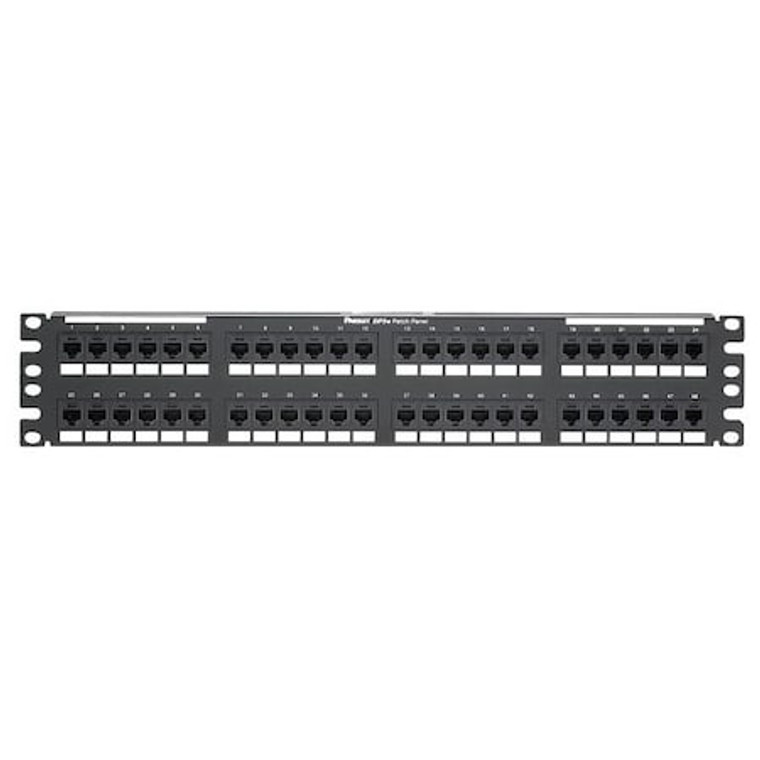

Patch Panel, Cat 6, Rack Mt, 48 Port - DP48688TGY

Patch Panel, Cat 6, Rack Mt, 48 Port - DP48688TGY

Panduit
SKU:
DP48688TGY
|
UPC:
74983037100
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Patch Panel, Compatible Cable Performance Category 6, Includes Adhesive Label, Material Steel, Number of Ports 48, Panel Shape Flat, Panel Type 110, Rack Units 2, Overall Depth 1 1/8 in, Overall Height 3 1/2 in, Overall Width 19 in, Standards ANSI/TIA-568-C.2, ANSI/TIA-968-A, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt type 3 and 4, ISO 11801 Class E, RoHS Compliant, UL Listed, T568 Standard T568A, T568B
Additional Information
Country of Origin:
Mexico
Item:
Patch Panel
Category Type:
6
Panel Style:
Flat
Panel Type:
110
Number of Ports:
48
Material:
Steel
Mounting Style:
Rack Mount
Rack Units:
2
T568 Standard:
T568A, T568B
Connectors per Panel:
48
Standards:
ANSI/TIA-568-C.2, ANSI/TIA-968-A, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt type 3 and 4, ISO 11801 Class E, RoHS Compliant, UL Listed
Color:
Black
Overall Height (mm):
88.1
Overall Depth (In.):
1.17
Termination Style:
Punchdown
Performance Level:
Category 6
Overall Length (In.):
1.17
Overall Width (mm):
482.6
Overall Height (In.):
3.47
Note:
DP48688TGY replaces DP48688TG
Overall Depth (mm):
29.7
Identification Type:
Adhesive Label
Patch Panel Style:
Flat
Maximum Operating Temperature (°C):
65
Minimum Operating Temperature (°F):
-14
Maximum Operating Temperature (°F):
149
Overall Length (mm):
29.7
Product Type:
Network Patch Panel
Minimum Operating Temperature (°C):
-10
Number of Rack Units:
2
Overall Width (In.):
19
Number of Network (RJ-45) Ports:
48
Total Number of Ports:
48
Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Product Model:
DP48688TG
Number of RJ-11 Ports:
48
Product Name:
DP48688TG 48-Port Network Patch Panel
Sub Brand:
Pan-Net®
Wiring Scheme:
T568A/T568B
Standards Met:
Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz. Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEE
Compatible Cable Performance Category:
6
Panel Shape:
Flat
Overall Height:
3 1/2 in
Overall Depth:
1 1/8 in
Includes:
Adhesive Label
Overall Width:
19 in
Maximum Operating Temperature (°F):
149
Maximum Operating Temperature (°C):
65
Minimum Operating Temperature (°F):
-14
Minimum Operating Temperature (°C):
-10
Package Quantity:
1
