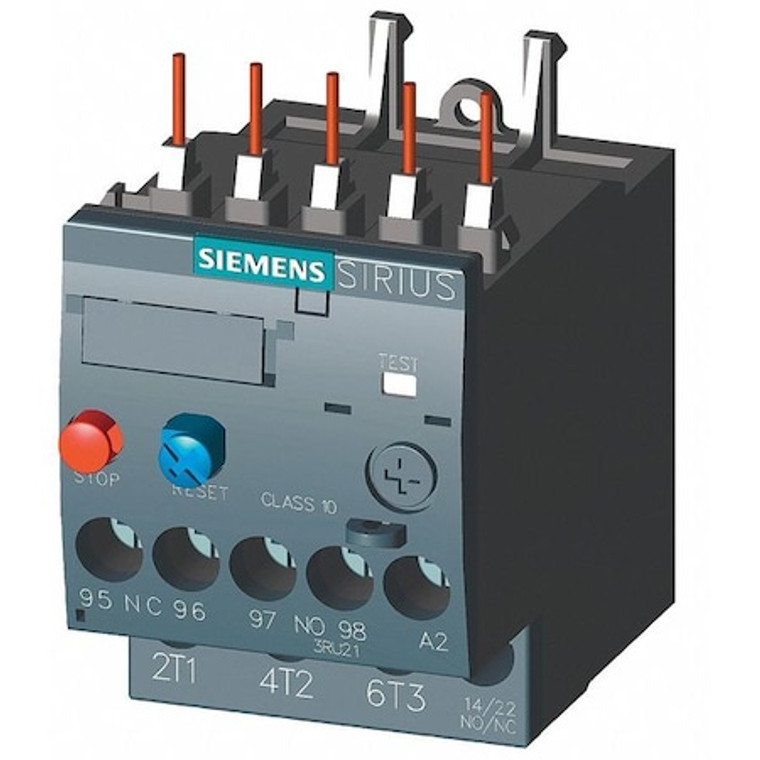

Ovrload Rely, 0.70 to 1A, 3P, Class 10,690V - 3RU21160JB0

Ovrload Rely, 0.70 to 1A, 3P, Class 10,690V - 3RU21160JB0

Siemens
SKU:
3RU21160JB0
|
UPC:
662643919998
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1 A, Minimum Overload Relay Current Setting 0.7 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
Germany
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Current Range:
0.70 to 1.00A
Use With - Contactors and Starters:
Mfr. Series 3RT201 Contactors
Overload Relay Current Range:
0.70 to 1.00A
NEMA Size:
Not Applicable
Width:
1.77";Trip Class - Overload=10"
Number of Poles:
3
Frame / Series / Class / Code:
S00
Height:
3.00";Sensing Method=Thermal"
Reset Type - Relay:
Auto, Manual
Depth:
2.75";Overall Height - Relay=3 in"
Body Width - Relay:
1.77 in
Standards:
REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Body Height - Relay:
3 in
For Use With:
3RT201 Contactors
Body Depth - Relay:
2.75 in
Features:
Manual and Auto Reset
Trip Class:
10
Separate Mounting:
Yes, Additional Items Needed
Mounting:
Contactor mounting
Starter Type:
IEC
Type:
thermal overload relay
Full Load Current Range:
1 A / 1 A
Contact Rating:
B600 / R300
Operating Temperature:
-40°C to 70°C
Insulation:
IP20
Size:
0.045 m / 0.076 m / 0.07 m
Trip type:
CLASS 10
Contact configuration:
1 / 0 / 1
Environmental Conditions:
-55
Body Depth:
2.43 in
Body Height:
4.64 in
Compatible with Series:
SIRIUS
Phase:
Three
Relay Style:
IEC
Maximum Overload Relay Current Setting:
1 A
Overload Protection Type:
Thermal
Auxiliary Contact Form:
1NO/1NC
Includes Thermal Units:
Yes
Maximum Voltage Rating:
690V AC
Terminal Connection Type:
Screw Terminals
IP Rating:
IP20
Minimum Operating Temperature:
-40 Degrees F
Frame Size:
S00
Maximum Operating Temperature:
158 Degrees F
Mounting Style:
Direct To Contactor
Body Width:
1.77 in
Overall Height:
4.64 in
Reset Type:
Auto, Manual
Minimum Overload Relay Current Setting:
0.7 A
Number of Required Thermals:
3
Includes Mounting Hardware:
Not Applicable
Package Quantity:
1
