Ovrload Rely, 0.63 to 1A, 3P, Class 10,690V - LRD05

Ovrload Rely, 0.63 to 1A, 3P, Class 10,690V - LRD05

Schneider Electric
SKU:
LRD05
|
UPC:
785901206729
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

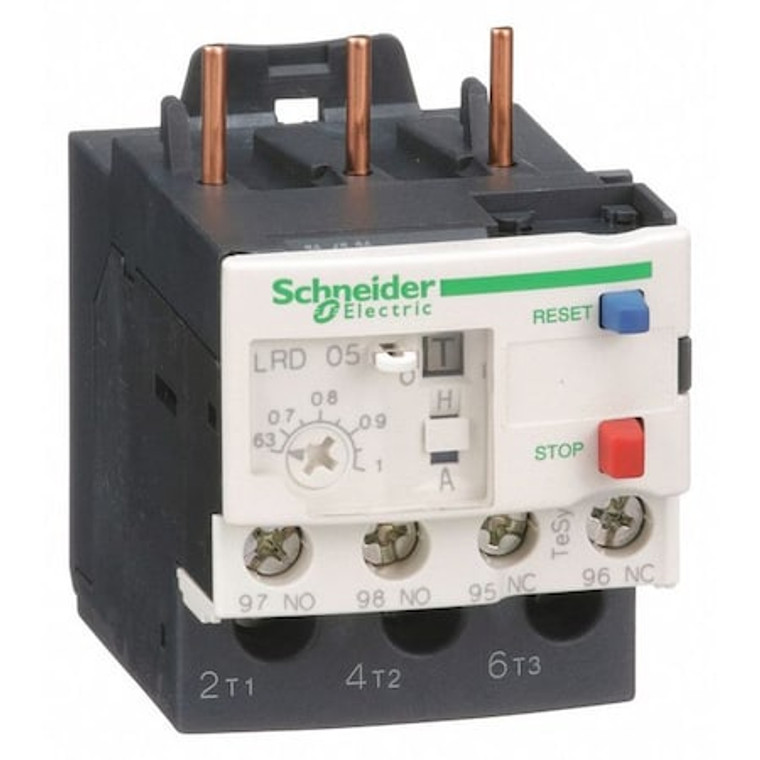

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1 A, Minimum Overload Relay Current Setting 0.63 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
France
Item - Relay:
IEC Style Overload Relay
Item:
Overload Relay
Current Range:
0.63 to 1.00A
Use With - Contactors and Starters:
Mfr. Series LC1D09 to LC1D32 Contactors
Overload Relay Current Range:
0.63 to 1.00A
NEMA Size:
Not Applicable
Trip Class - Overload:
10
Width:
1.77";Number of Poles=3"
Sensing Method:
Bimetallic
Reset Type - Relay:
Manual
Height:
3.62";Depth=2.75""
For Use With:
LC1D09 thru LC1D32 Contactor
Trip Class:
10A
Body Width - Relay:
1.77 in
Overall Height - Relay:
3.62 in
Standards:
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Features:
Single Phase Sensitivity; Differential
Body Depth - Relay:
2.75 in
Body Height - Relay:
3.62 in
Starter Type:
IEC
Thermal Protection Adjustment Range:
0.63-1 A
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Phase Failure Sensitivity:
tripping current 130 % of Ir on two phase, the last one at 0
Product Compatibility:
LC1D25 || LC1D38 || LC1D12 || LC1D32 || LC1D18 || LC1D09
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Range:
TeSys || TeSys Deca
Mounting Support:
plate, with specific accessories || rail, with specific accessories || under contactor
[Ith] Conventional Free Air Thermal Current:
5 A signalling circuit
Temperature Compensation:
-20-60°C
Ambient Air Temperature For Storage:
-60-70°C
Climatic Withstand:
IACS E10
Tripping Threshold:
1.14 +/- 0.06 Ir IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Product Name:
TeSys LRD || TeSys Deca
Thermal Overload Class:
class 10A IEC 60947-4-1
Network Frequency:
0 to 400 Hz
Permissible Current:
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Control Type:
Red push-button stop || Blue push-button reset
Relay Application:
motor protection
[Ue] Rated Operational Voltage:
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Flame Retardance:
V1 conforming to UL 94
Dielectric Strength:
1.89 kV 50 Hz IEC 60947-1
Ambient Air Temperature For Operation:
-20-60°C without derating IEC 60947-4-1
Product Certifications:
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Network Type:
AC || DC
Connections - Terminals:
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit
Mechanical Robustness:
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Product Or Component Type:
differential thermal overload relay
Associated Fuse Rating:
4 A gG signalling circuit || 4 A BS signalling circuit
Auxiliary Contact Composition:
1 NO + 1 NC
Device Short Name:
LRD
Body Width:
1.77 in
Maximum Overload Relay Current Setting:
1 A
Minimum Operating Temperature:
-4 Degrees F
Terminal Connection Type:
Screw Clamp Terminals
Maximum Voltage Rating:
690V AC
IP Rating:
IP20
Mounting Style:
Direct To Contactor
Minimum Overload Relay Current Setting:
0.63 A
Overload Protection Type:
Thermal
Maximum Operating Temperature:
140 Degrees F
Relay Style:
IEC
Compatible with Series:
TeSys Deca
Auxiliary Contact Form:
1NO/1NC
Includes Mounting Hardware:
Not Applicable
Overall Height:
2.6 in
Body Depth:
2.76 in
Body Height:
2.6 in
Reset Type:
Manual
Rated Insulation Voltage:
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Package Quantity:
1
