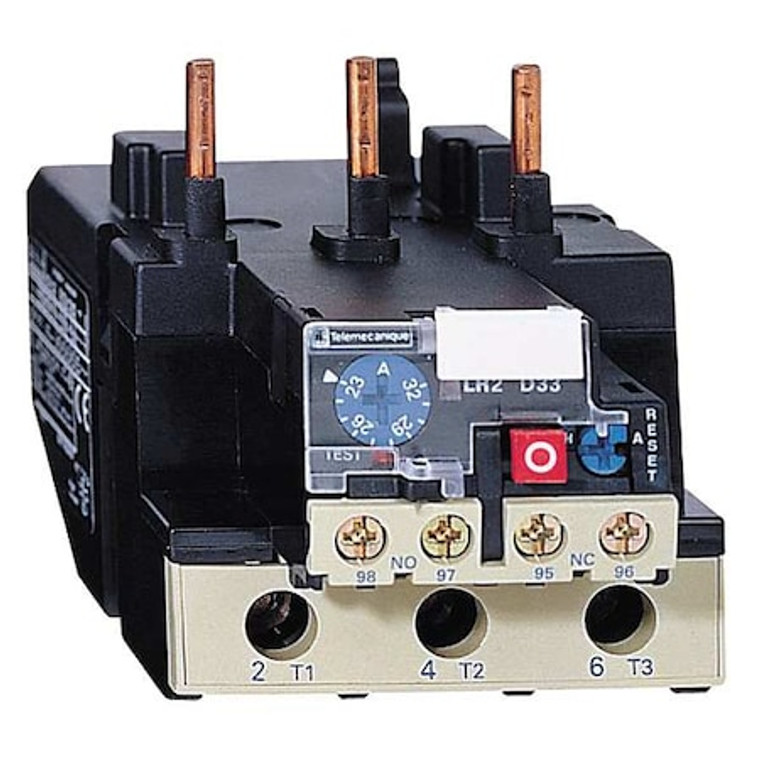

Ovrload Relay, 48 to 65A, 3P, Class 20,690V - LR2D3559

Ovrload Relay, 48 to 65A, 3P, Class 20,690V - LR2D3559

Schneider Electric
SKU:
LR2D3559
|
UPC:
785901258506
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 65 A, Minimum Overload Relay Current Setting 48 A, Trip Class 20, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
France
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Use With - Contactors and Starters:
Mfr. Series LC1D50 to LC1D80 Contactors
Current Range:
48.0 to 65.0A
Overload Relay Current Range:
48 to 65A
NEMA Size:
Not Applicable
Width:
2.95";Trip Class - Overload=20"
Number of Poles:
3
Sensing Method:
Bimetallic
Reset Type - Relay:
Manual
Height:
3.93";Depth=4.76""
Body Height - Relay:
3.93 in
Features:
Single Phase Sensitivity; Differential
Body Depth - Relay:
4.76 in
Overall Height - Relay:
3.93 in
Trip Class:
20
Standards:
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Kit Required for Retrofit Mtg.:
2UWY4
Separate Mounting:
Yes, Additional Items Needed
Body Width - Relay:
2.95 in
For Use With:
LC1D50 thru LC1D80 IEC Contactors, 50 to 80A
Starter Type:
IEC
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Product Or Component Type:
differential thermal overload relay
Device Short Name:
LR2D
Mechanical Robustness:
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Product Name:
TeSys LRD || TeSys Deca
Associated Fuse Rating:
4 A gG signalling circuit || 4 A BS signalling circuit
Thermal Protection Adjustment Range:
48-65 A
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals
Climatic Withstand:
IACS E10
Network Type:
DC || AC
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Auxiliary Contact Composition:
1 NO + 1 NC
Permissible Current:
0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Phase Failure Sensitivity:
tripping current 130 % of Ir on two phase, the last one at 0
Control Type:
Red push-button stop || Blue push-button reset
Network Frequency:
0 to 400 Hz
Flame Retardance:
V1 conforming to UL 94
Ambient Air Temperature For Operation:
-20-60°C without derating IEC 60947-4-1
Tripping Threshold:
1.14 +/- 0.06 Ir IEC 60947-4-1
Relay Application:
motor protection
Thermal Overload Class:
class 20 IEC 60947-4-1
Range:
TeSys
[Ith] Conventional Free Air Thermal Current:
5 A signalling circuit
Product Compatibility:
LC1D80 || LC1D95
Temperature Compensation:
-20-60°C
[Uimp] Rated Impulse Withstand Voltage:
6 kV
[Ue] Rated Operational Voltage:
1000 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Product Certifications:
IEC || UL || CSA || EAC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
Mounting Support:
plate, with specific accessories || rail, with specific accessories || under contactor
Connections - Terminals:
power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw
Dielectric Strength:
2.2 kV 50 Hz IEC 60947-1
Ambient Air Temperature For Storage:
-60-70°C
Relay Style:
IEC
Reset Type:
Auto, Manual
Compatible with Series:
TeSys Deca
Maximum Overload Relay Current Setting:
65 A
Mounting Style:
Direct To Contactor
Overload Protection Type:
Thermal
Body Height:
3.94 in
Terminal Connection Type:
Screw Clamp Terminals
IP Rating:
IP20
Auxiliary Contact Form:
1NO/1NC
Overall Height:
3.94 in
Body Width:
2.95 in
Maximum Voltage Rating:
1000V AC
Minimum Overload Relay Current Setting:
48 A
Minimum Operating Temperature:
-4 Degrees F
Includes Mounting Hardware:
Not Applicable
Body Depth:
4.76 in
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
