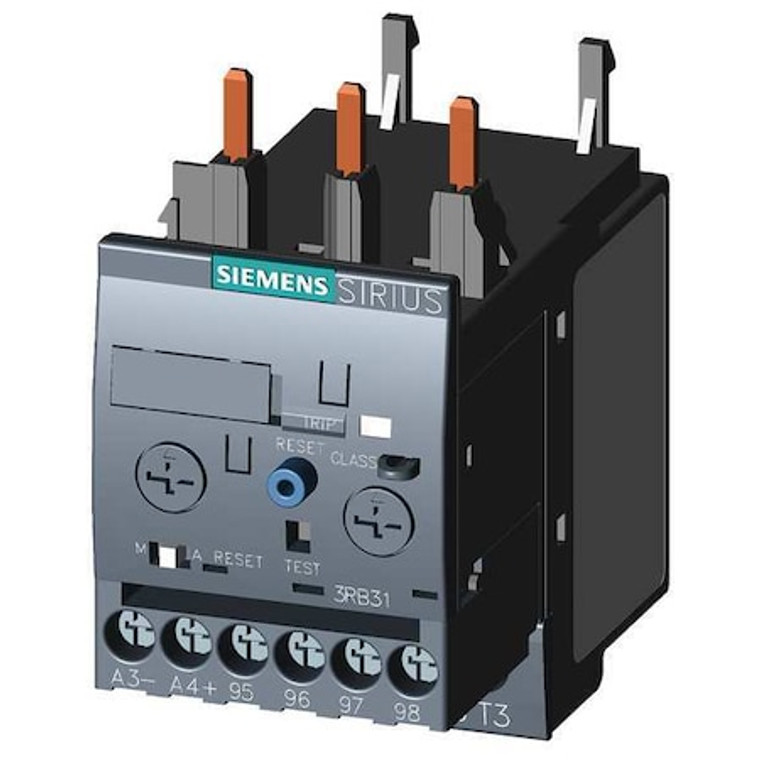

Overload Rely, 6 to 25A, Class 5/10/20/30 - 3RB31234QB0

Overload Rely, 6 to 25A, Class 5/10/20/30 - 3RB31234QB0

Siemens
SKU:
3RB31234QB0
|
UPC:
662643903225
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 25 A, Minimum Overload Relay Current Setting 6 A, Trip Class 5E/10E/20E/30E, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S0, Relay Style IEC
Additional Information
Country of Origin:
Czechia
Item - Relay:
IEC Style Overload Relay
Item:
Overload Relay
Current Range:
6.00 to 25.0A
Use With - Contactors and Starters:
Mfr. Series 3RT202 Contactors
Overload Relay Current Range:
6.0 to 25.0A
NEMA Size:
Not Applicable
Trip Class - Overload:
10, 20, 30, 5
Width:
1.77";Number of Poles=3"
Frame / Series / Class / Code:
S0
Height:
3.42";Sensing Method=Electronic"
Reset Type - Relay:
Auto, Manual
Depth:
3.30";Body Width - Relay=1.77 in"
Trip Class:
5E/10E/20E/30E
Standards:
Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
For Use With:
3RT202 Contactors
Body Depth - Relay:
3.3 in
Overall Height - Relay:
3.42 in
Features:
Earth Fault Detection, Manual and Auto Reset
Separate Mounting:
Yes, Additional Items Needed
Body Height - Relay:
3.42 in
Starter Type:
IEC
Connection type:
Screw connection
Type of actuation:
AC
External reset possible:
Yes
Release class:
adjustable
Lowest value adjustable current range:
6 ampere
Number of auxiliary contacts as opener:
1
Number of auxiliary contacts as shutter:
1
Number of auxiliary contacts as changer:
0
Greatest value adjustable current range:
25 ampere
description of product type:
3RB3
Power loss per pole, current-dependent [PlIp]:
0.4 watt
Mounting Style:
Direct To Contactor
Maximum Operating Temperature:
140 Degrees F
Auxiliary Contact Form:
1NO/1NC
Maximum Voltage Rating:
690V AC
Minimum Operating Temperature:
-13 Degrees F
Overload Protection Type:
Electronic
Reset Type:
Auto, Manual
Frame Size:
S0
Relay Style:
IEC
IP Rating:
IP20
Overall Height:
3.42 in
Body Depth:
3.31 in
Compatible with Series:
SIRIUS
Terminal Connection Type:
Screw Terminals
Includes Thermal Units:
Not Applicable
Body Width:
1.77 in
Includes Mounting Hardware:
Not Applicable
Body Height:
3.43 in
Minimum Overload Relay Current Setting:
6 A
Number of Required Thermals:
Not Applicable
Phase:
Three
Maximum Overload Relay Current Setting:
25 A
Package Quantity:
1
