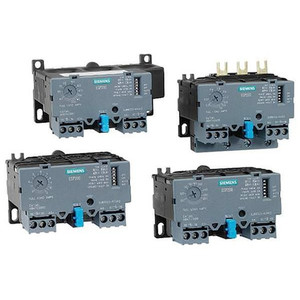

Overload Rely, 3 to 12A, Class 5/10/20/30 - 3RB31134SB0

Overload Rely, 3 to 12A, Class 5/10/20/30 - 3RB31134SB0

Siemens
SKU:
3RB31134SB0
|
UPC:
662643903140
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 12 A, Minimum Overload Relay Current Setting 3 A, Trip Class 5E/10E/20E/30E, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC
Additional Information
Country of Origin:
Czechia
Item - Relay:
IEC Style Overload Relay
Item:
Overload Relay
Current Range:
3.00 to 12.0A
Use With - Contactors and Starters:
Mfr. Series 3RT201 Contactors
Overload Relay Current Range:
3.0 to 12.0A
NEMA Size:
Not Applicable
Width:
1.77";Trip Class - Overload=10, 20, 30, 5"
Number of Poles:
3
Frame / Series / Class / Code:
S00
Reset Type - Relay:
Auto, Manual
Sensing Method:
Electronic
Height:
3.11";Depth=2.87""
Overall Height - Relay:
3.11 in
Body Depth - Relay:
2.87 in
Features:
Earth Fault Detection, Manual and Auto Reset
Separate Mounting:
Yes, Additional Items Needed
Body Height - Relay:
3.11 in
Standards:
Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Body Width - Relay:
1.77 in
Trip Class:
5E/10E/20E/30E
For Use With:
3RT201 Contactors
Starter Type:
IEC
Connection type:
Screw connection
Release class:
adjustable
Number of auxiliary contacts as opener:
1
Lowest value adjustable current range:
3 ampere
Greatest value adjustable current range:
12 ampere
Number of auxiliary contacts as changer:
0
Number of auxiliary contacts as shutter:
1
description of product type:
3RB3
Power loss per pole, current-dependent [PlIp]:
0.2 watt
Type of actuation:
AC
External reset possible:
Yes
Minimum Operating Temperature:
-13 Degrees F
Terminal Connection Type:
Screw Terminals
Maximum Voltage Rating:
690V AC
Body Width:
1.77 in
Compatible with Series:
SIRIUS
Body Depth:
2.55 in
Relay Style:
IEC
Minimum Overload Relay Current Setting:
3 A
Maximum Overload Relay Current Setting:
12 A
Overall Height:
4.76 in
Auxiliary Contact Form:
1NO/1NC
Body Height:
4.76 in
Phase:
Three
Number of Required Thermals:
Not Applicable
Maximum Operating Temperature:
140 Degrees F
Frame Size:
S00
Includes Mounting Hardware:
Not Applicable
Overload Protection Type:
Electronic
Mounting Style:
Direct To Contactor
Includes Thermal Units:
Not Applicable
Reset Type:
Auto, Manual
IP Rating:
IP20
Package Quantity:
1
