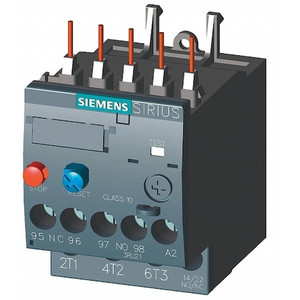

Overload Relay, 4.50 to 6.30A, 3P, Class 10 - 3RU21261GB0

Overload Relay, 4.50 to 6.30A, 3P, Class 10 - 3RU21261GB0

Siemens
SKU:
3RU21261GB0
|
UPC:
662643919073
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 6.3 A, Minimum Overload Relay Current Setting 4.5 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S0, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
Germany
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Current Range:
4.50 to 6.30A
Use With - Contactors and Starters:
Mfr. Series 3RT202 Contactors
Overload Relay Current Range:
4.5 to 6.3A
NEMA Size:
Not Applicable
Width:
1.77";Trip Class - Overload=10"
Number of Poles:
3
Frame / Series / Class / Code:
S0
Reset Type - Relay:
Auto, Manual
Height:
3.35";Sensing Method=Thermal"
Depth:
3.35";Body Height - Relay=3.35 in"
Body Depth - Relay:
3.35 in
Body Width - Relay:
1.77 in
Separate Mounting:
Yes, Additional Items Needed
Features:
Manual and Auto Reset
Trip Class:
10
Overall Height - Relay:
3.35 in
Standards:
REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
For Use With:
3RT202 Contactors
Mounting:
Contactor mounting
Starter Type:
IEC
Type:
thermal overload relay
Size:
0.045 m / 0.085 m / 0.085 m
Environmental Conditions:
-55
Contact Rating:
B600 / R300
Full Load Current Range:
6.3 A / 6.3 A
Contact configuration:
1 / 0 / 1
Operating Temperature:
-40°C to 70°C
Trip type:
CLASS 10
Insulation:
IP20
Body Width:
1.77 in
Auxiliary Contact Form:
1NO/1NC
Body Depth:
2.63 in
Overall Height:
5.98 in
IP Rating:
IP20
Includes Thermal Units:
Yes
Frame Size:
S0
Reset Type:
Auto, Manual
Phase:
Three
Mounting Style:
Direct To Contactor
Minimum Overload Relay Current Setting:
4.5 A
Maximum Voltage Rating:
690V AC
Number of Required Thermals:
3
Body Height:
5.98 in
Includes Mounting Hardware:
Not Applicable
Relay Style:
IEC
Compatible with Series:
SIRIUS
Terminal Connection Type:
Screw Terminals
Overload Protection Type:
Thermal
Maximum Operating Temperature:
158 Degrees F
Minimum Operating Temperature:
-40 Degrees F
Maximum Overload Relay Current Setting:
6.3 A
Package Quantity:
1
